Microscope Digital Camera

1080P C-mount Microscope Digital Camera W/

HDMI & USB Output

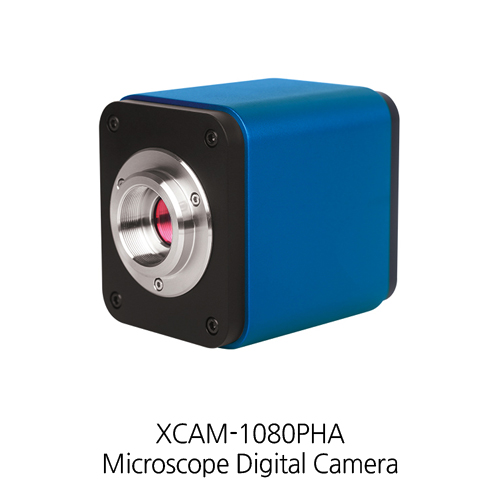

XCAM-1080PHA

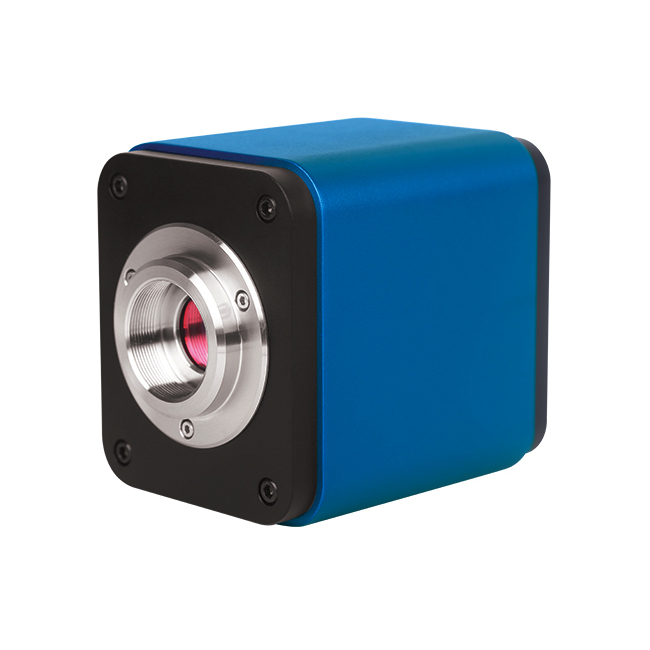

The XCAM-1080PHD HDMI CMOS camera body, made from tough, aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included.

Application Rang:
– Scientific research, education (teaching, demonstration and academic exchanges);
– Digital laboratory, medical research;
– Industrial visual (PCB examination, IC quality control);
– Medical treatment (pathological observation);
– Food (microbial colony observation and counting);
– Aerospace, military (high sophisticated weapons);

Specification:

HDMI+WIFI+SD Card HDMI+USB+SD Card
Model No. XCAM-1080PHD XCAM-1080PHA
Sensor Ultra-high performance CMOS sensor Ultra-high performance CMOS sensor
Sensor & Size(mm) Sony IMX185(C),1/1.9”(7.2×4.5) Sony IMX236,1/2.8”(5.5×3.4)
Pixel(μm) 3.75×3.75 2.8×2.8
G Sensitivity Dark Signal 1120mv with 1/30s,0.15mv with 1/30s 510mv with 1/30s,0.15mv with 1/30s
FPS/Resolution 60@1920x1080P(HDMI)
25@1920x1080P(WIFI)
60@1920x1080P(HDMI)
30@1920x1080P(USB)
Binning 1×1 1×1
Exposure 0.06ms~918ms 0.1ms~999ms
Other Specification for HDMI Output
HDMI HDMI output
USB USB Camera or USB Mouse
DC12V 12V Power in
SD SD Card Slot
ON/OFF Power On/Off Switch
LED Power On Indicator
C Mount C mount
Specification for HDMI Output
UI操作 With USB Mouse
Image Capture High Speed in SD Card
Video Record 1080P 30fps in SD Card

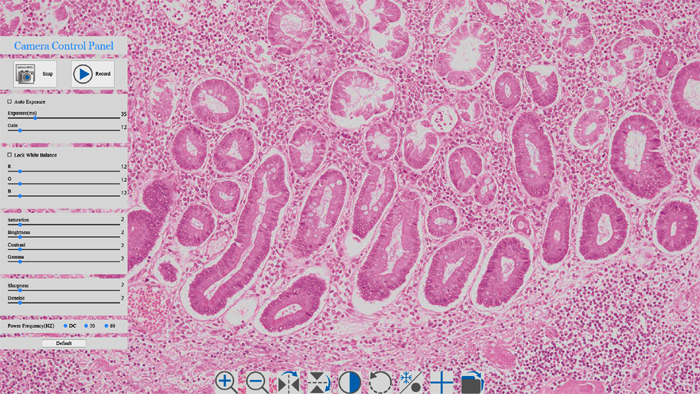

Camera Control Panel ncluding Exposure, Gain, White Balance, Color
Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function
Other Specification for WIFI Output
UI Operation With USB Mouse to Operate on the embedded XCamView
WIFI Performance 802.11n 150Mbps; RF Power 20dBm(Maximum)
Maximum Connected Devices 3 to 6(According to the Environment and Connection Distance)
White Balance Auto White Balance
Color Technique Ultra-Fine Color Engine (WIFI)
Capture/Control API Standard SDK for Windows/Linux/Mac(WIFI)
Recording System Still Picture or Movie (WIFI)
Other Specification for USB Output
White Balance Auto White Balance
Color Technique Ultra-Fine Color Engine (USB)
Capture/Control API Standard UVC for Windows/Linux/Mac(USB)
Recording System Still Picture or Movie (USB)
Software Environment (for USB2.0 Connection)
Operating System Microsoft Windows XP/Vista/7/8/8.1/10(32&64bit)
OSx(Mac OS X)
Linux
PC Requirements CPU:Intel Core2 2.8GHz or More
Memory: 4GB or More
USB Port: USB2.0 High-speed Port
Display:   19″ or Larger
CD-ROM
Operating Environment
Operating Temperature(in Centidegree) -10 to 50
Storage Temperature(in Centidegree) -20 to 60
Operating Humidity 30-80%RH
Storage Humidity 10-60%RH
Power Supply DC 12V/2A Adaptor
Dimension
WxDxL 78mm(3.07”) x 70mm(2.76”) x 92mm(3.62”)
Weight 0.47kg(1.0Ibs)

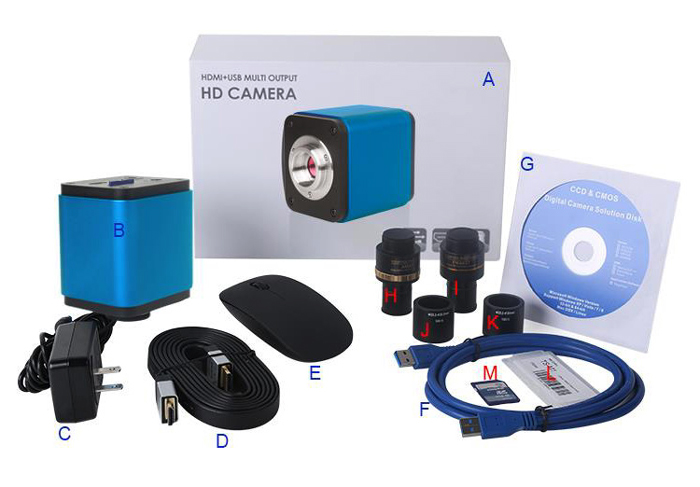

A Box:L25.5cm x W17.0cm x H9.0cm (1pcs,1.43kg)
B 1 pc digital camers
C Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
D HDMI Cable
E USB Mouse
F High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m
G CD (Driver & utilities software, Ø12cm)
  Optional Acceries
H/I Adjustable lens adapter
J/K Fixed lens adaptor
L Calibration Kit
M SD Card(4G or 8G or more)
