[XDS-3] Inverted Biological Microscope W/ Infinity Objective
₩2,500,500
설명
Lab/Industrial Microscope

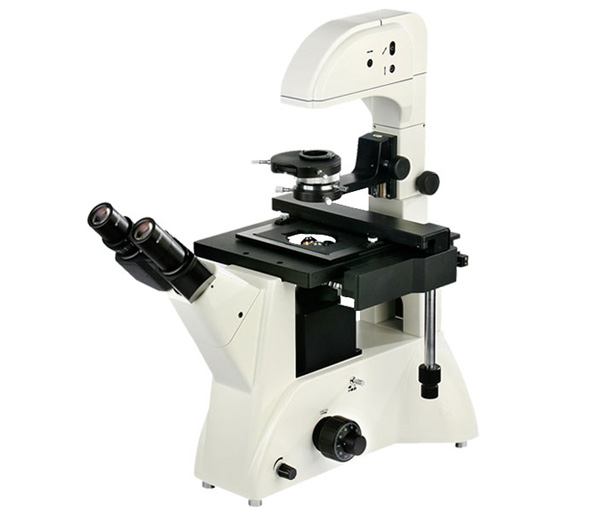

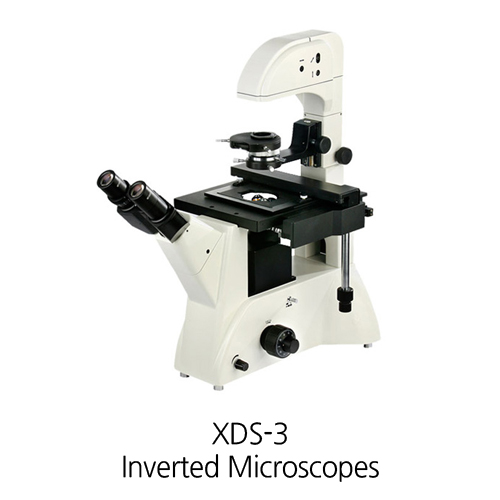

Inverted Biological Microscope W/ Infinity Objective
XDS-3
XDS-3 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives and very long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities,medical treatment, agriculture and animal husbandry, etc.
Advantage
1) Equipped with wide field eyepiece, long working distance plan achromatic objectives

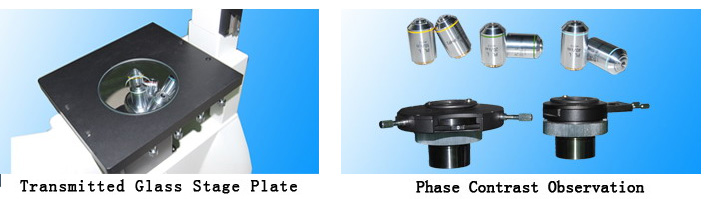

2) Equipped with phase contrast unit, include very long working distance condenser, phase contrast objective and centering telescope
3) Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
4) 6V30W halogen lamp with brightness control
Specification
| Eyepiece | Wide field WF10X(field number:Φ22mm) | ||
| Centering telescope | |||
| Infinity and long working distance plan achromatic objective | Objective | PLL 10X0.25Work distance：4.3 mm Cover glass thickness：1.2mm. | |
| PLL 20X0.40Work distance：8.0 mm Cover glass thickness：1.2mm. | |||
| PLL 40X0.65Work distance：3.5 mm Cover glass thickness:1.2mm. | |||
| Phase Contrast Objective | PLL 10X0.25 PHP2 Work distance：4.3 mm Cover glass thickness：1.2mm. | ||
| Eyepiece tube | Inclination angle is 45 and interpupillary distance is 53~75mm. | ||
| Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm. | ||
| Nosepiece | Quintuple nosepiece | ||
| Stage | Fixed stage overall size is 227mmX208mm | ||
| Glass rotundity stage overall size is Ф118mm | |||
| Mechanical moving device, moving range is 77mm (longitudinal)X114mm (transverse) | |||
| Culture dish holder 1 | Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm | ||
| Culture dish holder 2 | Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm | ||
| Culture dish holder 3 | Inside locating slot size:：57mm (W)X82mm (L) | ||
| Condenser system | Long working distance condenser, working distance: 55mm, and with turnplate phase contrast unit | ||
| Illumination system | 6V30W halogen, brightness enable control | ||
| Filter | Frosted glass and blue , green filter | ||
Optional accessories
| Name | Sort/Technique parameter | NO. |
| eyepiece | Dividing eyepiece(field number:Φ22mm) 0.10mm/Div | 1121012 |
| Phase Contrast Objective | PL L20X/0.40PHP2 Work distance：8.0 mm | 2490120 |
| PL L40X/0.60PHP2 Work distance：3.5 mm | 2490140 | |
| Nosepiece | Hexad nosepiece | |
| CCD Adapter | 0.5X | 810004 |
| 1X | 810002 | |
| Camera | DV-1 Video output (380/520 TV line) USB output ( 0.42 M pixel) | 800001 |
| DV-2 With USB output (1.3M,2.0M,3.0M pixel) | 800003 | |
| DV-3 With video output (380/520 TV line) | 800005 | |
| Digital camera adapter | CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F) | 820001 |
