설명
Lab/Industrial Microscope

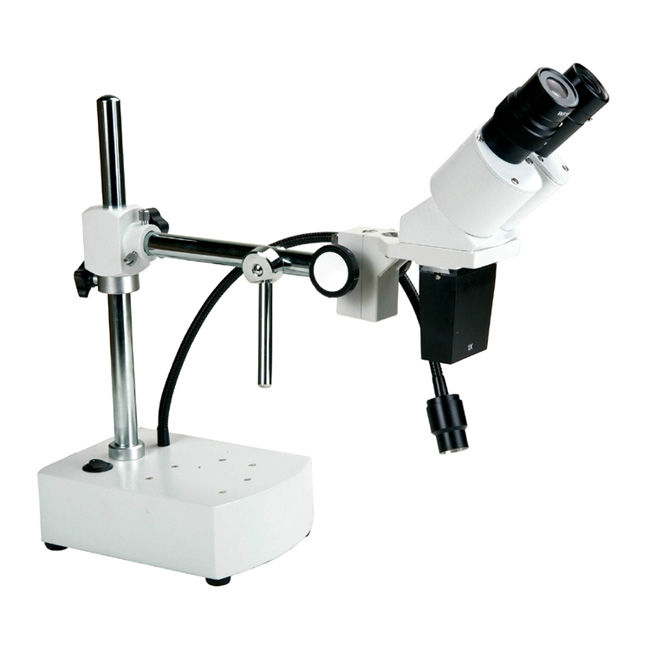

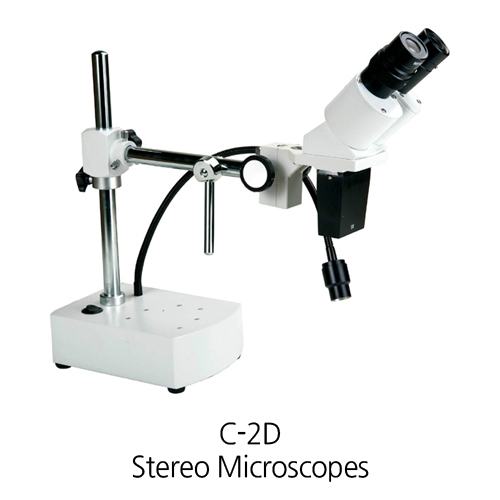

Long Working Distance Microscope W/ LED Light Source
C-2D
Technical Performance:
1) Sharp stereo image over a wide field view
2) The left ocular-tube with diopter adjustment + 5dp or -5dp. The interpupillary distance is between 55-75mm
3) Dovetail inserted style objestive with locked-in device ensures easy replacement
4) Power supply 110V/60Hz or 220V/50Hz with attached illumination AC 12V/10W or DC 6V/6W or 3W LED
Optional accessories:
1) Eyepiece WF5X(220mm), WF10X(20mm), WF15X(15mm), WF20X(10mm)
2) Objective 0.5X(250mm) 1X(230mm)
3) Incandscent bulb 12V/10W
| Objective Magnification |
EYEPIECES
|
Working Distance | |||||||
| 5X | 10X | 15X | 20X | ||||||
| Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | ||
| 0.5X | 2.5X | 40.0mm | 5X | 40.0mm | 7.5X | 30.0mm | 10X | 20.0mm | 250mm |
| 1X | 5X | 20.0mm | 10X | 20.0mm | 15X | 15mm | 20X | 10.0mm | 230mm |
