[CDIM-225] LCD Digital Imaging Stereo Measruing Instrument
₩4,681,000
설명
Lab/Industrial Microscope

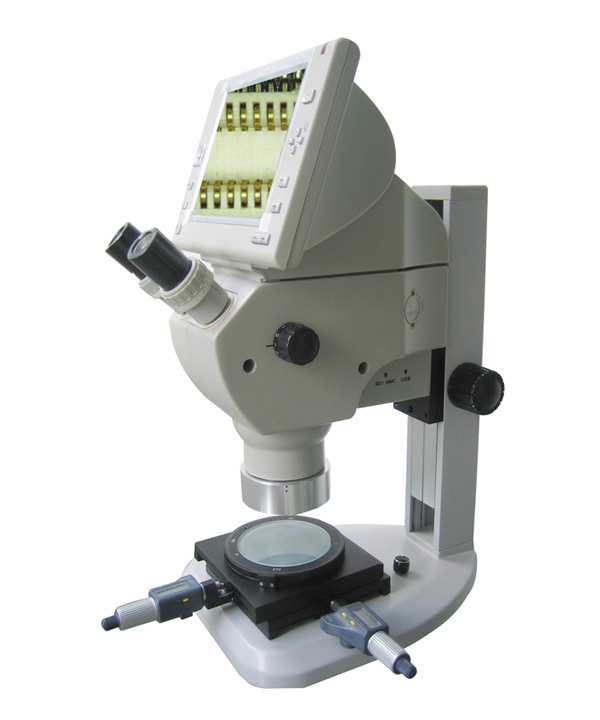

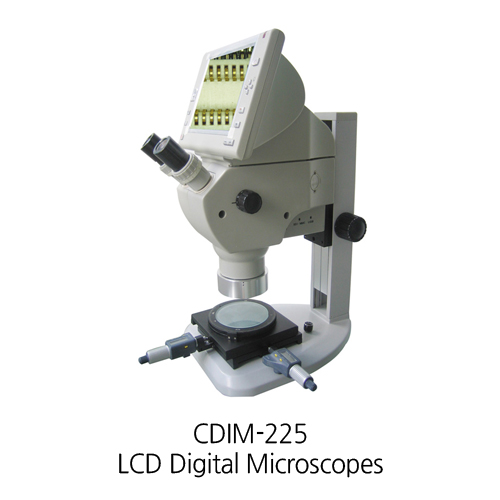

LCD Digital Imaging Stereo Measruing Instrument
CDIM-225
CDIM-225 sigital imaging measuring instuument can be use both traditional eyepieces and an 8inches LCD Screen for easy and comfortable viewing for yourself and to share with others,It is not only features high resolution of LCD display to quick and easy snapshots or short videos,but also features storage and measurement, The paented microscope thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time and deeply improve efficiency.
Specification
Digital Parts |
Pixel | 5 Mega |
| Maximal Resolution | 2560X1920 | |
| Video Resolution | 640X480 | |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | |
| Video Output | AV Output (NTSC/PAL) | |
| Data Output | USB2.0 | |
| Menu Language | Chinese / English | |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | |
| Scene Mode | Standard / Softness / Vivid | |
| Exposure Mode | Auto Exposure | |
| Date Mode | Year, Month, Day, Hour, Minute | |
| Optical Parts | Viewing Head | Binocular Head ,Inclined 45° |
| Eyepiece | SWF10×/22mm | |
| Zooming Ratio | 1:7 | |
| Nosepiece | Quintuple (Backward Ball Bearing Inner Locating) | |
| Eyepiece Dioptr Correction | ±5 Diopters | |
| Working Distance | 88mm | |
| Interpupillary Distance | 55mm-75mm | |
| Obuective Zoom Range | 0.65X-4.5X | |
| X-Y Axis Moving Sruvey Range | 30×30mm | |
| Minimum Measruing Reading | 0.001mm | |
| Measurement Accuracy | < 5µm | |
| Base Light | Built-in LED Base IIIumination:5W,45pcs LED bulbs | |
| Longer Stand and Base | Working Distance is 175mm(Max) |
