[CDMS-853] Compound LCD Digital Fluorescence Microscope

₩15,622,000

Quantity:

설명

Lab/Industrial Microscope

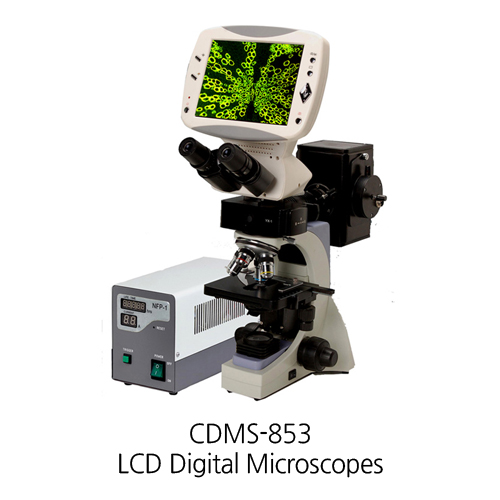

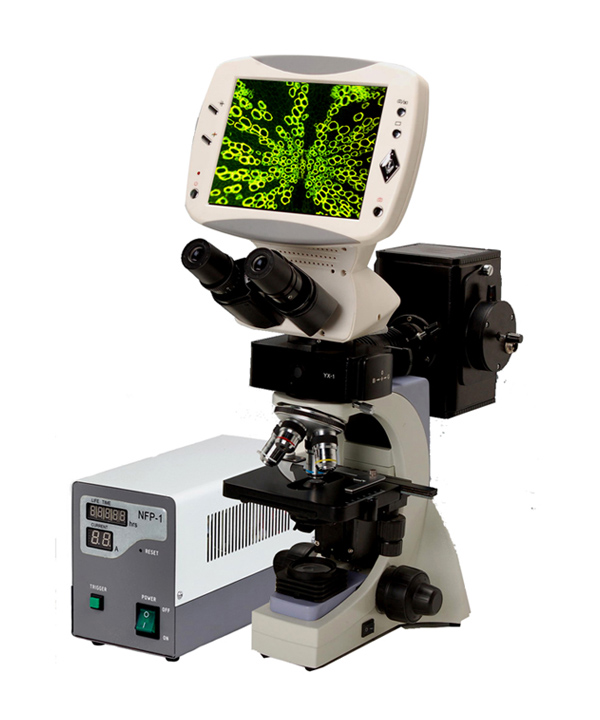

Compound LCD Digital Fluorescence Microscope

CDMS-853



CDMS-853 is equipped flexibly epi-fluorescent attachment with the latest digital biological microscope, which present the excellent image quality and widely used in venereal disease examination and immuneless diagnosis. It is ideal instrument for biology, cytology, oncology, genetics, immunology and other research and widely used in scientific research institutes, health care, disease prevention and animal husbandry and so on.

Specification

Digital Parts Pixel 500 Mega
Maximal Resolution 2560X1920
Video Resolution 640X480
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV Output (NTSC/PAL)
Data Output USB2.0
Menu Language Chinese / English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard / Softness / Vivid
Exposure Mode Auto Exposure
Date Mode Year, Month, Day, Hour, Minute
Optical Parts Eyepiece High-point ,Extra Wide Field Eyepiece EW10X22
Nosepiece Quintuple
Objective Infinite Achromatic Objective 4 X/10 X140 X/100 X
Condenser NA1.25 Abbe Condenser with lirs Diaphragm &Filter(Blue and Green)Rack&Pinion Adujstment
Focusing System Coaxial Coarse /Fine Focus System with Tension Adjustable,Limit Stopper Range 24mm,Fine Division 0.002mm
Stage Double Layers Mechanical Stage 140mm X140mm;Moving Range:75mm X50mm
Illumination 3.7V,3W LED Lamp,Brightness Adjustable
Reflected Light Source Blue ,Green Exciting Light Fillter System and O Ordinary Light System
Lamp 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
Protection Barrier Barrier to Resist the Ultraviolet Light
Power Supplier Power Supplier NFP-1,AC Input 220V/ 110V Inter Changeable ,Digital Display and Timer
Immersion Oil Fluorescent Free Oil
