[DC.5000‑WIFI] UNIVERSITY CMEX WiFi 5
₩1,425,600
설명
Digital Solutions UNIVERSITY
CMEX WiFi 5
DC.5000‑WIFI
The CMEX-WIFI 5 camera is equipped with a 5 MP CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems

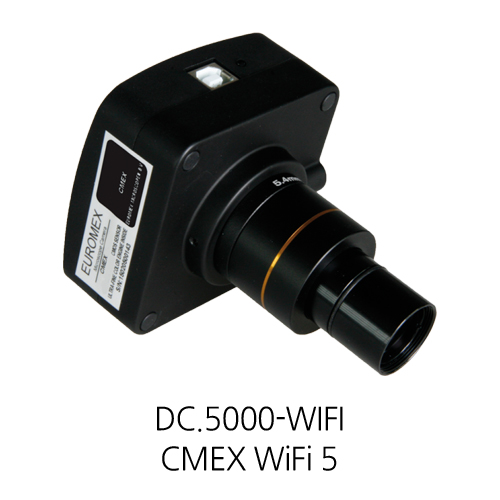

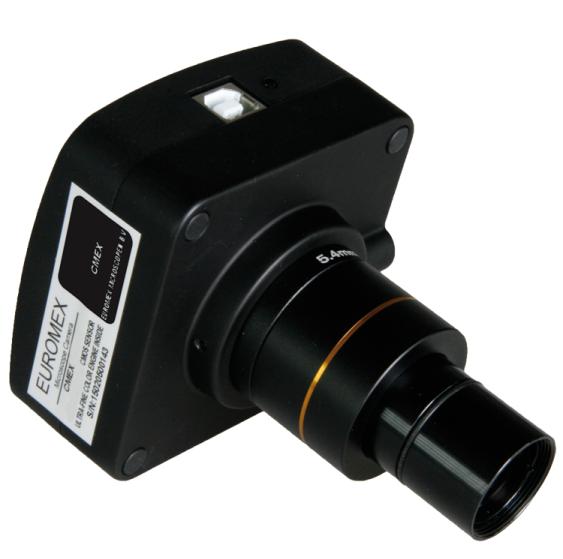

CMEX-WIFI 5.0 MP digital WiFi camera
with 1/2.5 inch CMOS sensor

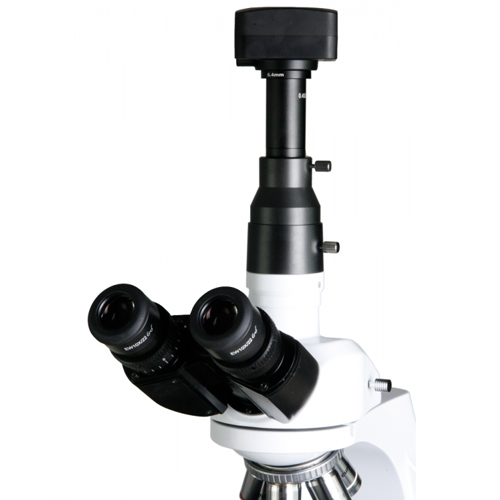

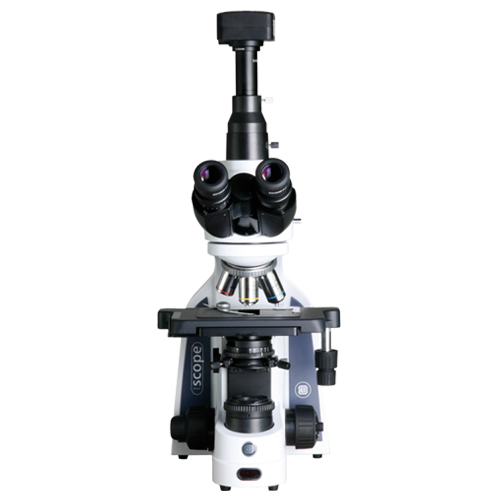

Adding a WiFi camera to your microscope is ideal for wireless sharing/viewing microscope images. Ideal for demonstrations or placed were remote viewing is needed
Apps for Android for this camera are supplied on cd or can be downloaded from this page under Downloads (free of charge) of from the Apple Store (free of charge) . ImageFocus Alpha software can be used for Windows based devices and WiFi connected PC and is supplied on CD. The camera is powered by the included USB charger or a computers USB port. Standard C-mount mounting with 0.5x C-mount objective included
Highlights
- Color CMOS WiFi camera
- Real time images 1280 x 720 pixels
- 1/2.5 inch, 5.0 MP CMOS sensor
- ADC 12 bits, color depth 24 bits
- Low signal/noise ratio
- Power supply via USB port or USB charger
- Send H.264 encoded images to WiFi enabled smartphones, computers, and tablets with iOS and Android
Models
Specifications
TECHNICAL SPECIFICATIONS CMEX-WIFI (DC.5000-WIFI)
Sensor CMOS 1/2.5 inch
Pixels 1280 x 720 pixels, 5.0 Mpix
Scan mode Electronic rolling shutter
Pixel size 2.2 μm x 2.2 μm
Filter RGB color filter and IR-cut off filter (380-650 nm)
Mount C-mount
Max fps Up to 12 frames per second
ADC 12 bits
Sensitivity 0.53 V/lux-sec @ 550 nm
Exposure Automatic or manual, , from 1 ms to 800 ms
White balance Automatic/manual
Dynamic range 61 db
S/N max 43 db
Data interface WIFi H.264 encoded images. Secured with key
Operation 0 – 50° C, 30-80 % humidity
Storage temperature -20 to 60° Celsius
Power supply With supplied USB charger or through USB port of a PC
Housing Zinc-aluminium alloy, 68 x 68 x 45 mm
Supplied with 0.5x objective with C-mount, 30 and 30, 5 mm to 23.2 mm adapters for stereomicroscopes,
76 x 24 mm calibration slide (1mm/100), USB charger and USB cable,
CD-ROM with ImageFocus Alpha software, Android .apk app, carton box
Compatibility Windows XP, Vista, Windows7, Windows 8 (32 and 64 bit configurations) iOS IPad or IPhone, Android Pad and Phones
Requirements PC with Intel Core2 2.8 GHz or higher or equivalent.
Minimum 2Gb RAM memory PC with WiFi enabled device with DHCP iOS iPad or Pad with Android system
or iPhone or SmartPhone with Android
Product number DC.5000-WIFI
