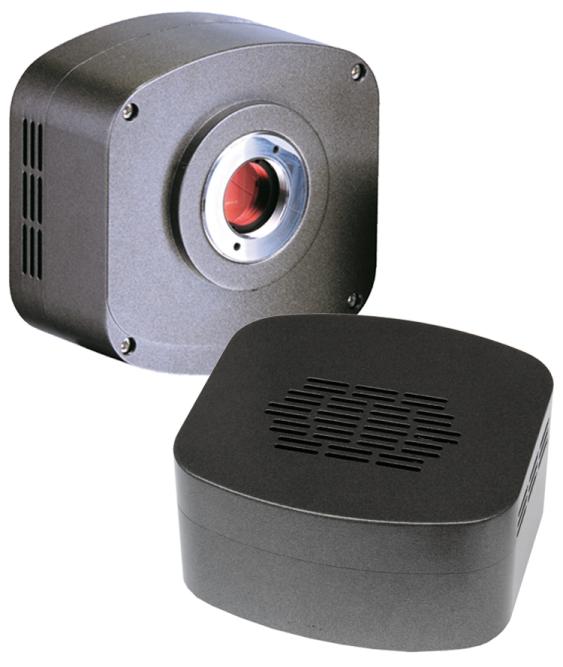

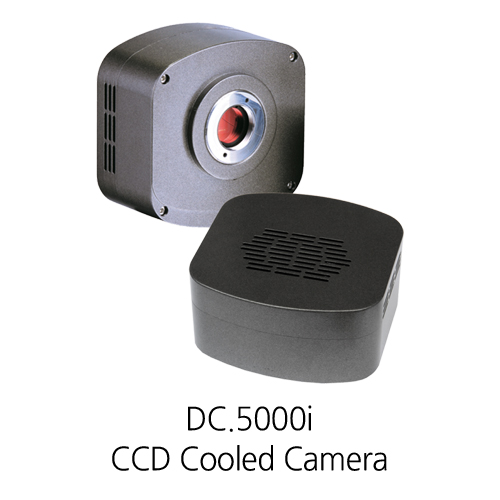

[DC.5000i] UNIVERSITY CCD Cooled Camera

6,942,100

Quantity:

설명

Digital Solutions UNIVERSITY

CCD Cooled Camera

DC.5000i

Euromex 5 Mpix camera CCD cooled color

The Euromex 2/3 inch CCD Peltier cooled camera is equipped with a Peltier cooling element that allows the camera to be suitable for fluorescence applications. The camera has a USB-2 interface for connection with a computer and is supplied with ImageFocus4 software

Besides capturing of images and videos, this software allows measurements on still and live images and to perform annotations on captured images. The software has specific functions for fluorescence like combining capture fluorescence images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. Also available for Mac OS, the ImageFocus 4 Lite software

Highlights

  • Cooled camera for education, laboratories and industry
  • 5 Mpix CCD color USB 2.0 camera
  • 2/3” sensor, 2580 x 1944 pixels
  • ADC 16 bits, color depth 36 bits
  • For fluorescence applications and low light intensity circumstances
  • Cooled by Peltier element up to – 30° C below ambient temperature

Models
Specifications

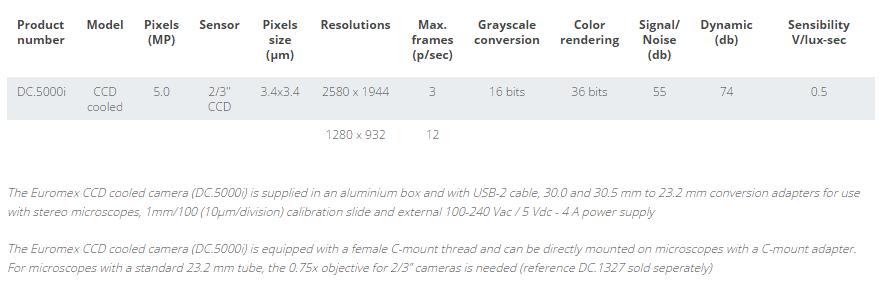

TECHNICAL SPECIFICATIONS CMEX-5000i (DC.5000i)

Sensor                                 High Resolution CCD 2/3 inch
Pixels                                   2580 x 1944 pixels, 5.0 Mpix
Scan mode                         Progressive, rolling shutter
Pixel size                             3.4 μm x 3.4 μm
Filter                                     RGB
Mount                                 C-mount thread. Delivered without objective
Max fps                               3 frames per second (2580 x 1944 pixels)
                                               12 frames per second (1280 x 932 pixels)
ADC                                      16 bits
Color depth                       36 bits
Sensitivity                          1.5 V/lux-sec @ 550 nm
Exposure                            Automatic or manual from 0.1 ms to 20 min
White balance                  Automatic/manual
Dynamic range                 74 db
Sensibility                           500 mV @ 3200 K and 706 cd/m2, 1/30 sec accumulation
Interface                            USB-2 at 480 Mb/s
Peltier cooling                  -30° C below ambient temperature
Dimensions                        130 x 111 x 54 mm (h x b x t)
Weight                                                920 gram
Operation                           0 – 60° C, 10-85 % humidity
Supplied with                   USB 2.0 cable, 100-240 Vac to 5Vdc/4A power adapter for Peltier cooling,
                                               76 x 24 mm calibration slide (1mm/100), CD ROM with software, aluminum
                                               carry case. Supplied without objective or adapter
Product number              DC.5000i

Accessories
DC.1327
C-mount adapter with 0.75x objective for standard Ø 23.2 mm tubes and 2/3” camera sensor
DC.1330
30 mm to 23.2 mm conversion adapters for stereo microscopes
DC.1335
30.5 mm to 23.2 mm conversion adapters for stereo microscopes
AE.1110
Stage 76 x 26 mm micrometer slide, 1 mm divided in 100 parts, 10 µm per division
AE.1111
Stage micrometer 2 mm divided in 200 parts, 10 µm per division
AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
