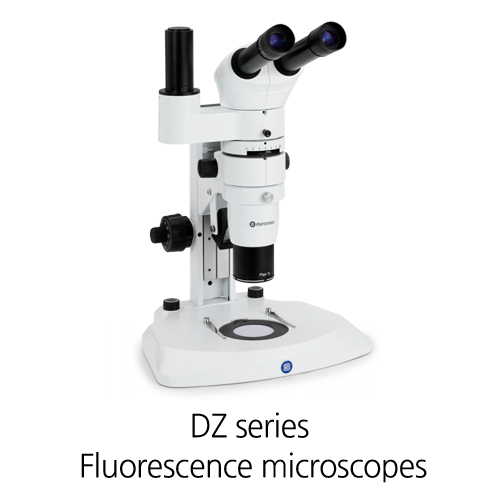

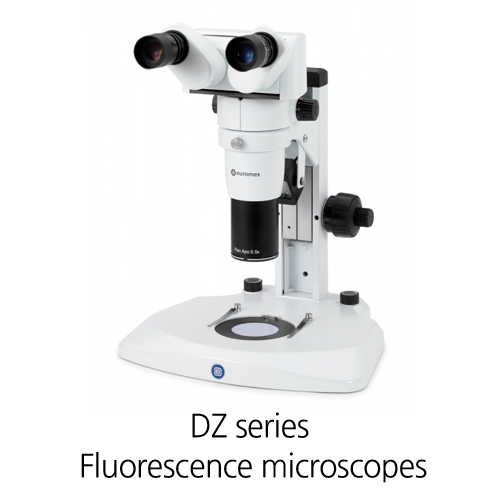

Industry Fluorescence microscopes

형광 현미경

DZ series

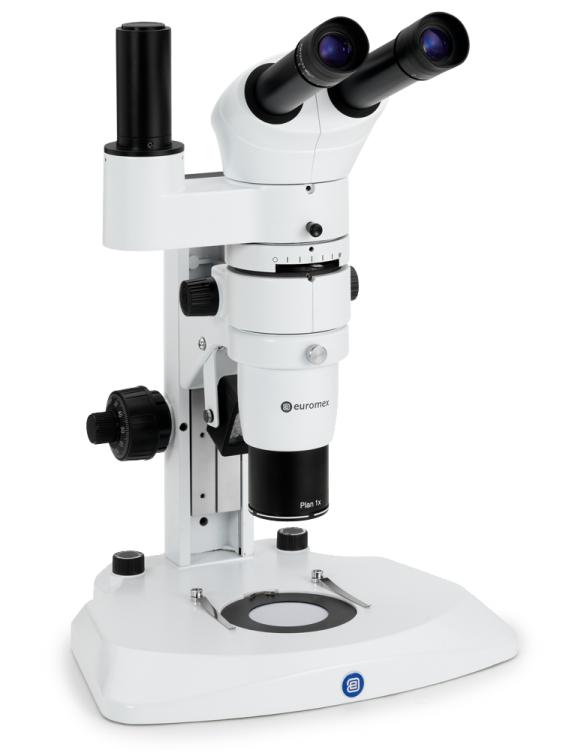

The modular stereo microscopes of the DZ series combine ergonomics with very high resolution optics. Either standard versions or customized models are available thanks to the large choice of central zoom units, eyepieces, stands and accessories

6 standard configurations are available for magnifications from 8 to 80 times. One can configure other configurations for magnifications from 4x up to160 times around the central zoom bodies DZ.1000, DZ.0800 or DZ.0630

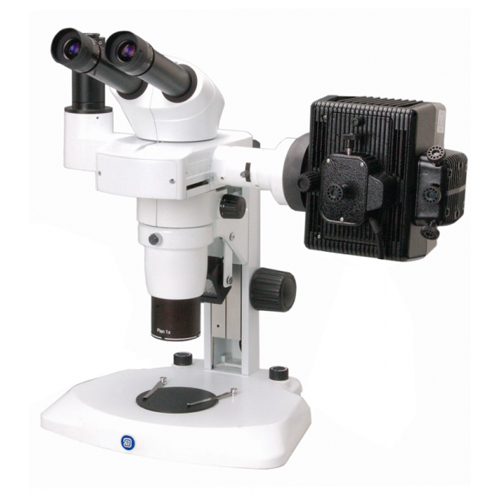

A fluorescence illumination unit enables scientific research like for studies of vertebrate development and gene function, teratology, genetics and environmental sciences



Highlights

  • Binocular and trinocular models
  • 6 standard configurations or customized configuration
  • Ergonomic tilting head from 5 to 35° tilting or fixed 20° inclined head, EWF10x/22mm eyepieces,
  • Three central zoom units from 4 to 320x
  • Field of views from 55 to 1.4 mm
  • Working distances from 126 to 33 mm
  • Ergonomical rack & pinion stands, universal stand or articulated arm stand
  • Transmitted and incident LED illumination
  • 100 W epi-fluorescence mercury vapor illuminator

Models

Specifications

The modern DZ stereomicroscopes are modular configured around a central zoom body. The first with a 1:6,3 zoom ratio, a second with a 1:8 zoom ratio and a third with a 1:10 zoom ratio. The DZ modular microsope – with his Extra Wide Field eyepieces, Plan Apochromatic 0.5x, 1x and 2x common objectives, the ergonomical stereo head with 5-35° inclined tubes or a fix stereohead with 20° inclined tubes, stand with incident and transmitted LED illuminations – belongs together with the Euromex D series, to the top stereomicroscopes of Euromex

EYEPIECE(S)
Pair of EWF 10x/22 mm eyepieces

HEADS
Ergonomic binocular 5-35° tilting head. Binocular 20° tilted head. Diopter ± 5 adjustment on both eyepieces. Interpupillary distance from 55 to 75 mm. Photo ports for one or two cameras

CENTRAL ZOOM UNITS
Three central zoom units are available:

– 1:6.3 for total magnifications from 8 to 50x
– 1:8 for total magnifications from 8 to 64x
– 1:10 for total magnifications from 8 to 80x

COMMON MAIN OBJECTIVE
Standard configurations are supplied with a plan apochromatic Common Main objective 1x, working distance 78 mm. Other plan apochromatic Common Main objectives 0.5x (working distance 126 mm) and 2x (working distance 33 mm) are also available. All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

STAND
Large ergonomic stand with ø 100 mm object plate and 2 object clamps. Coarse adjustment with adjustable friction. A universal stand and an articulated arm stand without illumination are also available for configurations built to customer’s specifications

ILLUMINATIONS
The transmitted and incident 3 W LED illuminations are supplied with a built-in 100-240 V power supply. Both illuminators can be used simultaneously and the light intensities can be adjusted separately

PACKAGING
Supplied with power cord, dust cover, a spare fuse and user manual. All packed in a polystyrene box

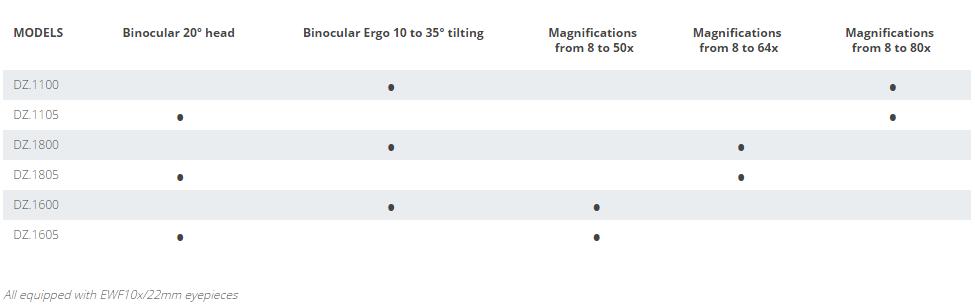

STANDARD CONFIGURATIONS
All 6 standard configurations are equipped with EWF10x/22mm eyepieces, plan achromatic Common Main objective 1x. All 6 standard configurations are equipped with rack & pinion stand with incident and transmitted LED illumination

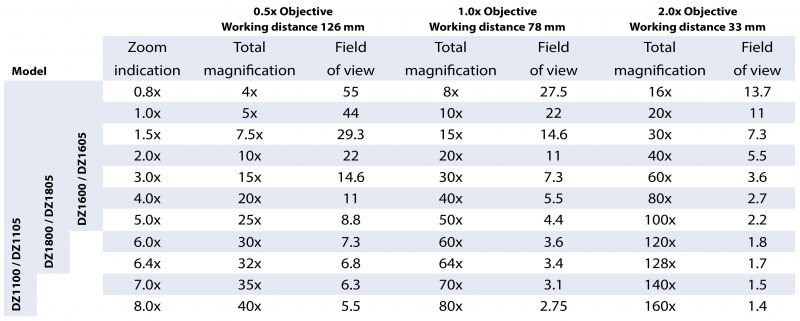

MAGNIFICATIONS AND FIELD OF VIEWS FOR STANDARD CONFIGURATIONS



BUILD YOUR OWN MICROSCOPE
A customized DZ series stereo microscope can be configured to customer’s specifications by choosing one of the three central zoom units DZ.0630, DZ.0800 or DZ.1000 and adding the necessary components for the application. Pair of eyepieces, an ergonomically 5 to 35° tilting head or fix 20° inclined head, a common 0.5x, 1x or 2x main objective, a large ergonomic LED stand, a boom or an articulated arm stand.

Other accessories like a photo/camera unit or dual iris diaphragm can complete the configuration

Accessories

DZ.0630

DZ.0630
DZ Zoom 1:6,3 body with magnifications from 0,8 to 5x and without objectives
DZ.0800
DZ.0800
DZ Zoom 1:8 body with magnifications from 0,8 to 6,5x and without objectives
DZ.1000
DZ.1000
DZ Zoom 1:10 body with magnifications from 0.8 to 8x and without objectives
DZ.2020
DZ.2020
DZ Binocular ergonomical head with inclined tubes from 5-35°. For mounting on DZ Zoom unit
DZ.2025
DZ Binocular head with 20° inclined tubes, without eyepieces. For mounting on DZ Zoom unit
DZ.3010
DZ.3010
Eyepiece EWF 10x/22 mm (1pc) for DZ-series head
DZ.3012
DZ.3012
Eyepiece EWF 10x/22 mm with crosshair with 10/100 micrometer scale for DZ-series head (1 piece)
DZ.3015
Eyepiece EWF 15x/16 mm (1 piece) for DZ-series head
DZ.3020
DZ.3020
Eyepiece EWF 20x/12 mm (1 piece) for DZ-series head
DZ.4005
DZ.4005
Plan apochromatic 0.5x objective for DZ-series, working distance 126 mm. For mounting on DZ central zoom module
DZ.4010
DZ.4010
Plan apochromatic 1x objective for DZ-series, working distance 78 mm. For mounting on DZ central zoom module
DZ.4020
DZ.4020
Plan apochromatic 2x objective for DZ-series, working distance 33 mm. For mounting on DZ central zoom module
DZ.5020
DZ.5020
Universal stand with holder but without illumination
DZ.5040
DZ.5040
Large Ergonomic LED stand with headholder for DZ-series
65.981
Head 76 mm holder for DZ-series and black universal stand 65.980
DZ.9005
Single photo tube attachment with one 23,2 mm tube
DZ.9007
Dual photo tube attachment with two 23,2 mm tube
DZ.9010
DZ.9010
Dual Iris diafragm
DZ.9020
DZ.9020
X-Y stage 185 x 145 mm for DZ-series with 50 x 50 mm travel
DZ.9050
DZ.9050
Fluorescence attachment with 2 filter sets for excitation in the blue region, EX460-500 DM505 EM510-560 filter sets (GFP BP bandpass) and EX460-500 DM505 EM510 (GFP LP longpass). With one 23,2 mm photo tube
DZ.9060
Filter set GFP-BP for excitation in the blue region, EX460-500, DM505, EM510-560 bandpass
DZ.9061
Filter set GFP-LP for excitation in the blue region, EX460-500, DM505, EM510 longpass
DZ.9013
C-mount adap with 1x lens
DZ.9040
Dark field attachment for DZ.5040
DZ.9045
Polarizator 360° rotatable, fits the DZ-series objectives
DZ.9047
Polarizator 360° rotatable, fits on DZ.5040 stand
AE.5025
T2 ring for Nikon D SLR digital camera
AE.5040
T2 ring for Canon EOS SLR digital camera
AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
PB.5245
Lens cleaning paper, 100 sheets per pack
PB.5274
Iso propyl alcohol 99%, 200 ml
PB.5275
Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs
LE.1972
Ring illuminator with 60 LEDs with adjustable light intensity. External power supply 110-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 20.000 Lux at 100 mm distance and color temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm
LE.1973
Ring illuminator with 144 LEDs with adjustable light intensity. External power supply 100-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 23.000 Lux at 100 mm distance and color temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm
