Lab/Industrial Microscope

Portable Dual-Use HD Endoscopy Endoscope Camera W/

USB and AV Conection Port

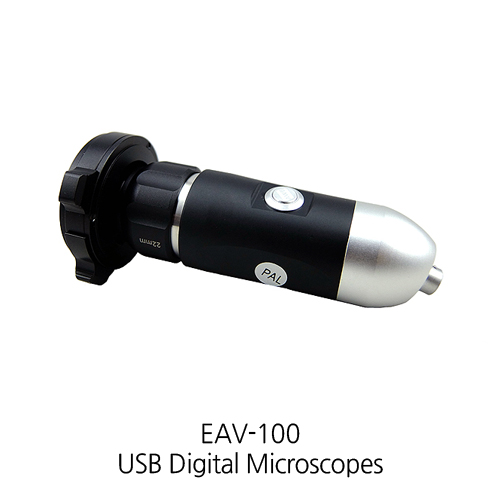

EAV-100

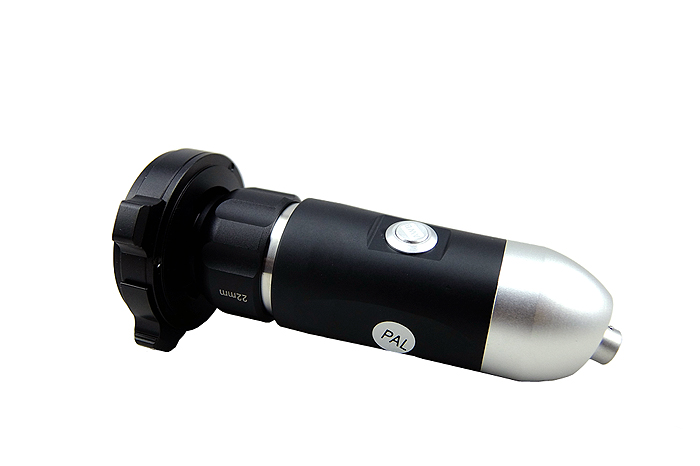

Portable Dual-Use (USB&AV) HD Endoscopy Camera EVA-100

SONY 1/3″ CCD 700TV Line High Definition

Accurate one key white balance adjustment. The image quality is very similar to those famous brand (even better)

This camera is compatible with all rigid endoscope, if you need coupler for Olympus or Pentax flexbile endoscope, please send ebay message to choose after payment.

A brand new video camera. Adopt latest SONY 1/3″ CCD and DSP processor which provide 700TV line real time high definition images. The white balance can be easily adjusted and locked by pressing one key. TUA-200 support both AV and USB output, can be viewed on computer, monitor and TV.

1 YEAR  WARRANTY. Any product defection, we will send replacement directly, you don’t need to send it back!

Features:

1) High resolution:
EVA-100 is equipped latest SONY 1/3″ Super HAD CCD II and DSP, 700 TV line high definition superior image. Ultra high 0.01lux sensitivity. This is the highest resolution 1/3″ CCD sensor till year 2014.

2) Easy white balance adjustment:
By pressing the “AWB” key, white balance can be adjusted automatically and most important, it will be locked. So the color of image will not change when the camera is moved. Similar product only provide “auto white balance”, the color will change if you move the camera.
Tips: By changing the position of endoscope and press AWB key, the white balance can also be changed between “cold” and “warm” . For example, if you want to get the color “warmer”, just move the endoscope to make more “cold” image fulfill the screen, then press AWB button. Get the endoscope back to original position and the screen color will be “warmer”. (please read manual for details)

3) Water proof coupler
F=22mm, suitable for all kinds of rigid endoscopes. The coupler is standard C-mount, can be screwed off and changed. (we have other size of coupler, please contact us if you need to change)

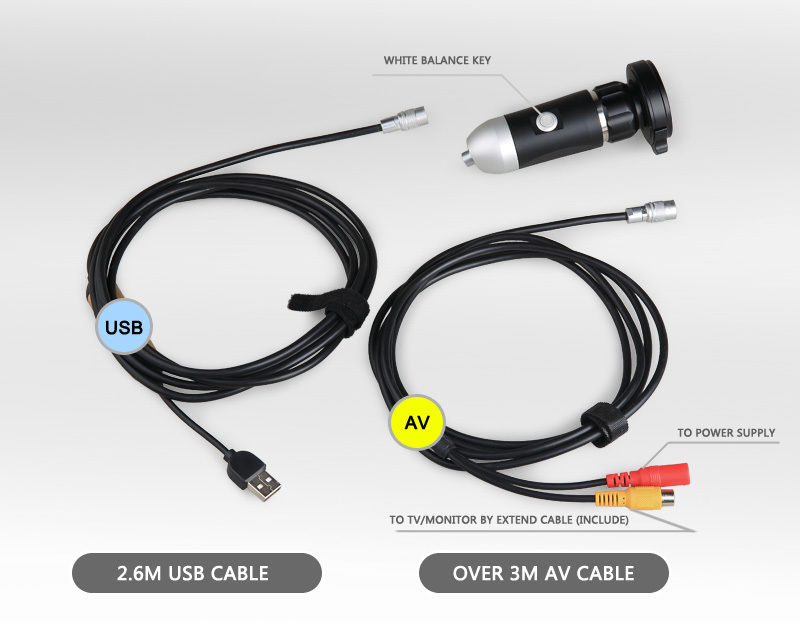

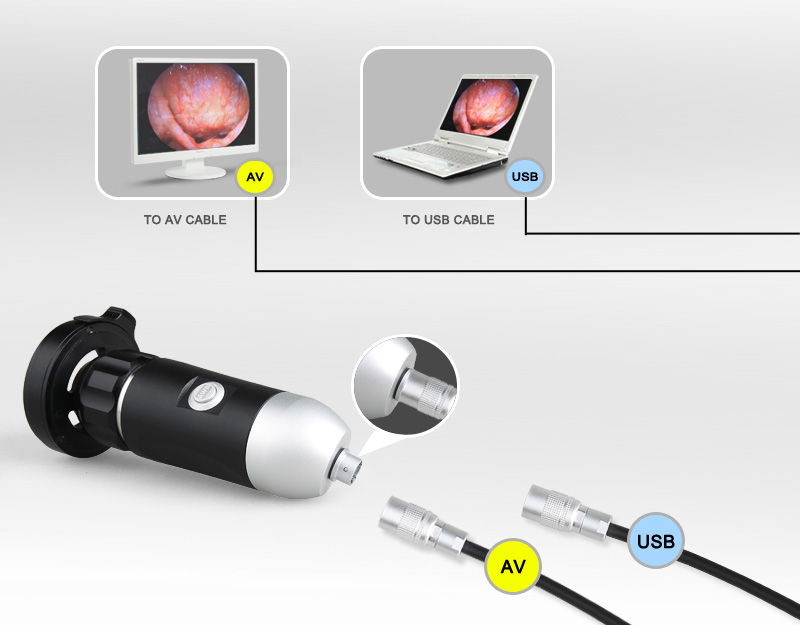

4) Support USB / AV /BNC output
There are  2 cables which can be connected to TUA-200 camera so it can work under 2 modes:
One is AV/BNC cable which can be connected to monitor or TV(camera need to be powered by 12V DC adaptor which is included in the pacakge).
The other is USB cable which can be connected to PC or laptop (camera will be powered by computer directly, no adaptor required). In this mode, image and video can be captured in computer, free capture software included.
MAX compatibility:   TUA-200 support almost all Windows operating system and most video capture software include medical software

5) Full aluminum body
To provide great comfort and prevent electromagnetic interference. Also water proof.

6) Portable type
Light weighted, easy to carry. Ideal for medical or industry examination, ENT or veterinarian surgery

Parameters (Camera):

Parameters (USB):

What’s in box:

1) TUA-200 portable camera with F22 coupler
2) AV/BNC cable
3) USB cable
4) DC 12V adaptor (110V-240V universal)
5) AV extend cable
6) BNC-AV convertors
7) Driver & software CD
