[GL6445B] Stereo Microscope
₩1,576,500
설명
Lab/Industrial Microscope

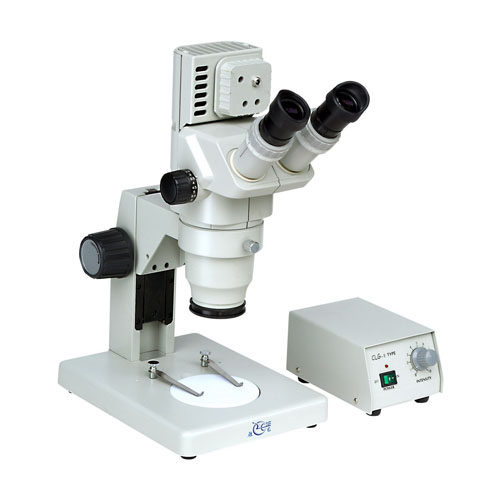

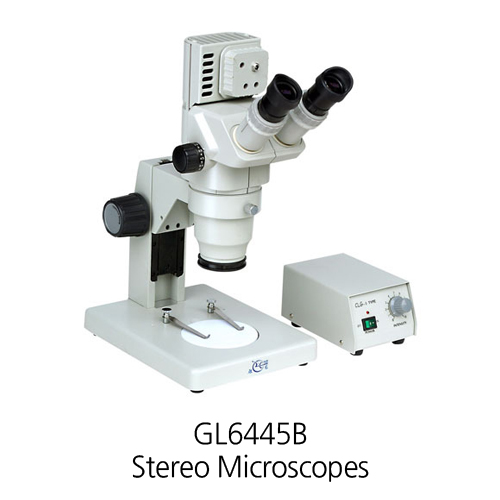

Stereo Microscope
GL6445B
Standard configurations
| Zoom ratio | 1:6.5 |
| Objective zoom range | 1X-6.5X |
| Eyepice | SWF10X/23mm |
| Working distance | 103mm |
| Interpupillary distance adjustment range | 52mm-75mm |
| Binocular Angle of View | Inclination45/60 |
| Diopter adjustment | ?à5 diopter |
| Optical Body Rotation | 360 |
| Voltage input | 110V/60HZ or 220V/50HZ |
| coaxial Illumination |
Technical data
| Project | Auxiliary Objective | Eyepiece | Working distance(mm) | |||||||
| SWF10X | WFl5X | WF20X | WF25X | |||||||
| Magnifi-cation | Visual field | Magnifi-cation | Visual field | Magnifi-cation | Visual field | Magnifi-cationn | Visual field | |||
| Data | 0.5X | 5X-32.5X | 46-7.4 | 7.5X-48.8X | 32-5 | 10X-65X | 26-4 | 12.5X-81.25.3X | 24-..6 | 163 |
| 0.75X | 7.5X- 48.8X | 30.7-4.7 | 11.3X-73.1X | 21.3-3.3 | 15X-97.5 | 7.3-2.7 | 18.8X-121.9X | 16-2.5 | 117 | |
| 1X | 10X-6.5X | 23-3.5 | 15X-97.5X | 16-2.5 | 20X-130X | 13-2 | 25X-162.5X | 12-1.8 | 100 | |
| 1.5X | 15X-97.5X | 15.3-2.4 | 22.5X-146X | 10.7-1.6 | 30X-185X | 8.7-1.3 | 37.5X-243.8X | 8-1.2 | 45 | |
| 2X | 20X- 130X |
11.5-1.8 | 30X-195X | 8-1.2 | 40X-260X | 6.5-1 | 50X-325X | 6-0.9 | 40 | |
