[ICM-100] Industry Checking and Measure Microscope

2,482,000

Quantity:

설명

Lab/Industrial Microscope

Industry Checking and Measure Microscope

ICM-100

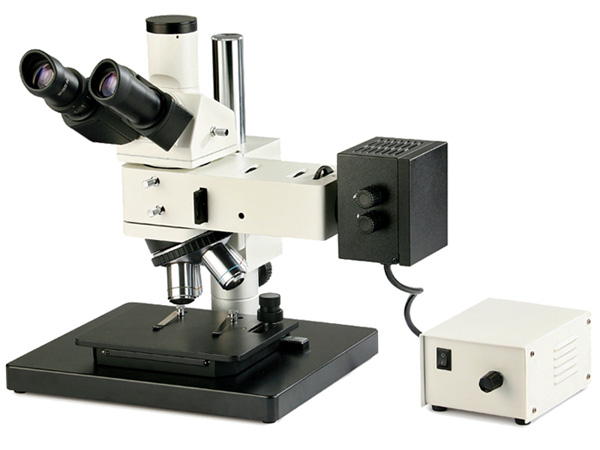

ICM-100/100BD Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.

Specification

Eyepiece Wide field WF10X(field number:Φ22mm)
Infinity plan achromatic objective ICM-100 (Equipped with bright field objectives) PL L5X/0.12  (Work distance):26.1 mm
PL L10X/0.25  (Work distance):20.2 mm
PL L20X/0.40  (Work distance):8.80 mm
PL L50X/0.70  (Work distance):3.68 mm
ICM-100BD (Equipped with bright & dark field objectives) PL L5X/0.12 BD  (Work distance):9.70 mm
PL L10X/0.25 BD  (Work distance):9.30 mm
PL L20X/0.40 BD (Work distance):7.23mm
PL L50X/0.70 BD  (Work distance):2.50 mm
Eyepieces tube Trinocular inclined 30˚, can be shot in 100% light flux.
Epi-illumination system ICM-100 12V30W halogen and brightness enable control
ICM-100BD 12V50W halogen and brightness enable control
Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer.
Focus system Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 1μm.
Nosepiece Quintuple (Backward ball bearing inner locating)
Working stage Base overall size:300mmX240mm
Mechanical stage overall size:185mmX140mm, moving range:Transersal :35mm, Longitudinal:30mm

Optional accessories

Eyepiece Wide field WF10X(field number:Φ22mm) 1122010
Objective ICM-100 PL L40X/0.60  (Work distance):3.98 mm 2260140
PL L60X/0.75  (Work distance):3.18 mm 2260160
PL L80X/0.80  (Work distance):1.25 mm 2260180
PL L100X/0.85  (Work distance):0.40 mm 2260111
ICM-100BD PL L40X/0.75 BD  (Work distance):3.04 mm 2120140
PL L60X/0.75 BD  (Work distance):1.90 mm 2120160
PL L80X/0.80 BD  (Work distance):0.80mm 2120180
PL L100X/0.85 BD  (Work distance):0.22 mm 2120111
CCD adapter 0.4X 810001
0.5X 810004
1X 810002
0.5Xwith dividing 0.1mm/Div 810003
Camera DV-1(with USB and Video output) 800001
DV-2(with USB output) 800003
DV-3(with Video output) 800005
Digital camera adapter CANON(EF), NIKON(F) 820001
