[L135D] Binocular Biological Microscope

597,100

Quantity:

설명

Lab/Industrial Microscope

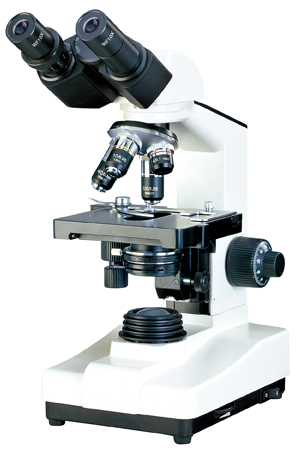

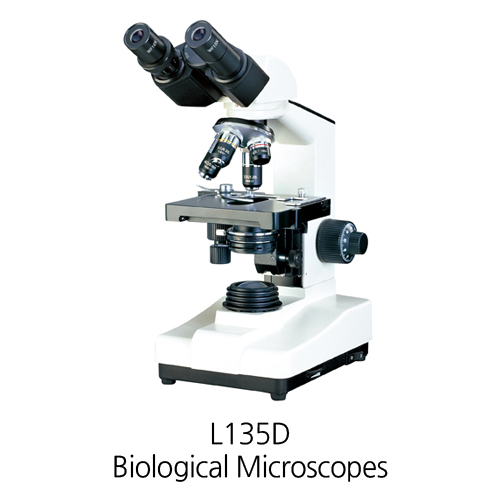

Binocular Biological Microscope

L135D




L135 series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have clear image and wide view field through optical system. They can be broadly applied in biology medicine, agriculture, industry etc. They are the ideal instrument for medical treatment, teaching and scientific research.

Advantage

1) With wide field eyepieces and achromatic objectives, the field of view is widely and clear
2) L135A、L135C: Coaxial coarse/fine focus system with up stop; Minimum division of fine focusing: 4μm. L135B、L135D: Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm
3) 12 Volt 20 Watt Halogen lamp with brightness control

Specification

Model L135A L135B L135C L135D
Eyepiece Wide field WF10X(Φ18mm)
Objective Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Eyepiece tube Binocular(Inclination of 30˚)
Focus system Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm Coaxial coarse/fine focus system, with tensional adjustable and up stop, Minimum division of fine focusing: 4μm Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm
Nosepiece Quadruple(Frontward ball bearing outer locating)
Stage Double layer mechanical (Size:125mmX115mm, Move range: 70mmX30mm)
Abbe Condenser N.A.1.25  Rack & pinion adjustable
Filter Blue filter
Frosted filter
Collector For halogen lamp
Light source 12Volt 20 Watt Halogen lamp with brightness control

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field  WF16X(Φ11mm) 1051510
Dividing  10X(Φ18mm) 1021010
Eyepieces tube Monocular Inclination of 45˚ 010003
Binocular Sliding(Inclination of 45˚) 011202
Dual viewing tube Inclination of 30˚ 013001
Nosepiece Triple Frontward Ball bearing outer locating 030001
Stage Fixed with slide moving holder Size:120mmX120mm, Moving range:70mmX30mm 040005
Fixed Size:120mmX120mm 040001
Filter Green filter 115002
Yellow filter 115003
Light source Fluorescent lamp Can be choose 5W,110V/220V 071002
Ordinary lamp Can be choose 110V/220V 072003
LED Illumination High brightness white 073002
Reflecting mirror Plane-concave reflecting mirror with stand 074002
Camera Eyepiece camera USB Output 1096001
VIDEO Output 1108001
Adapter(For LED illumination)  Input: 230V~50/60HZ   Output: 9V  500mA 101001
Input: 110V~50/60HZ   Output: 9V  500mA 101002
Facility polarize Polarizer(360° rotatable stage) 111001
Analyzer 111101
