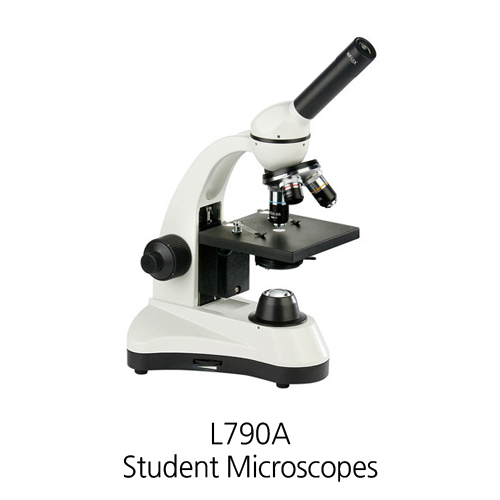

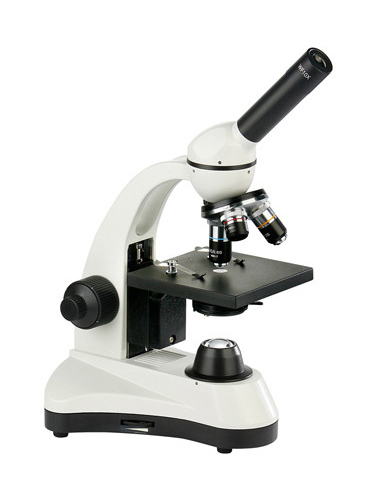

[L790A] Monocular Student Microscope

438,400

Quantity:

설명

Education Microscope

Student Microscopes

Monocular Student Microscope

L790A

L790 series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image and convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.

Features

1) With wide field eyepieces and achromatic objectives, the field of view is clear.
2) Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm.
3) High brightness white LED lamp transmission illumination.

Specification

Model L790A
Eyepiece WF10X(Φ18mm)
Objective Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Eyepiece tube Monocular,360° rotatable (Inclination of 45°)
Nosepiece Triple(Frontward ball bearing outer locating)
Focus system Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm
Stage Fixed(Size:120mmX120mm, With five holes fixed iris diaphragm)
Abbe condenser
Collector For LED lamp
Light source LED High brightness white LED lamp

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field WF16X(Φ11mm) 1051016
Point 10X(Φ18mm) 1043010
Stage Fixed(Size:120mmX120mm, With single lens and iris diaphragm) 040001
Fixed(Size:120mmX120mm, with slide moving holder and Abbe condenser) 040004
Filter Blue filter 115001
Green filter 115002
Yellow filter 115003
Frosted filter 115004
Collector For Fluorescent and Halogen lamp 060002
For Incandescent lamp 060004
Light source High brightness white LED lamp With adapter 073011
High brightness white LED lamp With adapter and charge batteries 073012
Halogen lamp 12V 20W 070019
Fluorescent lamp 110V/220V, 5W Can be choose 071006
Incandescent lamp 220V/110V, 20W Can be choose 072004
Camera Photography USB Output 1096001
VIDEO Output 1108001
Adapter
(For LED illumination)
Input: 230V 50/60HZ Output: 9V 500mA 101001
Input: 110V 50/60HZ Output: 9V 500mA 101002
