설명
Medical Microscope
Slip Lamp Microscope
LYL-I
The slit lamp microscope is a corneal microscope with a special attachment that permits examination of the endothelium on the posterior surface of the cornea.

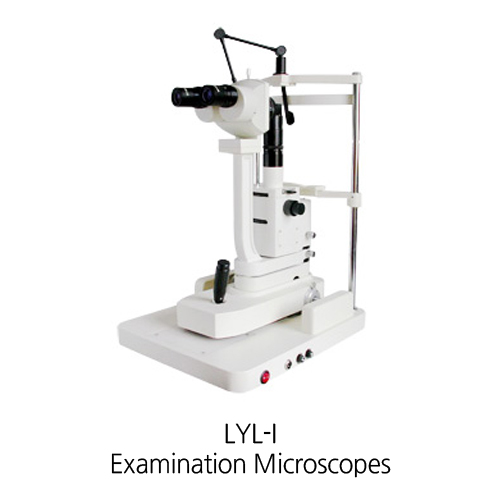

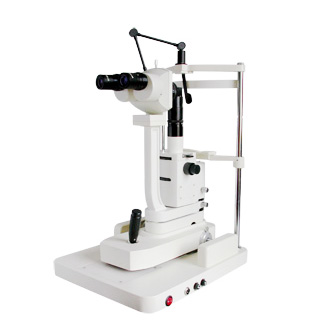

LYL-I Slip Lamp Microscope
Advantag
– Excellent optical system, easy operation;
– Main optical lens were made of imported material, to assure high clearance and brightness;
– All lens has anti-reflecting, moisture-proof, and mildew-proof coating to assure perfect optical quality under long time use.
Specification
|
Model |
LYL-I |
LYL-ID |
|
Total Magnification |
10X , 20X |
10X , 20X |
|
Objective |
1X,2X |
1X,2X |
|
Working Distance |
105mm |
105mm |
|
Imaging Pixels |
1.3M pixels inset |
|
|
Signal Output |
USB Digital Signals |
|
|
Analysis Software |
Phenix PHMIAS 2008 |
|
|
Microscope Type |
Converging Stereoscope, |
|
|
Wide Field Eyepiece WF10x |
Eyepiece Magnification 10x， |
|
|
Slit Width |
0～10mm Continuously Adjustable |
|
|
Slit Height |
1～8mm Continuously Adjustable |
|
|
Slit Angle |
360° Continuously Rotatable |
|
|
Slit Inclination Angle |
Elevation 0～20°， Left and Right -6°～+6° |
|
|
Main body horizontal rotate angle |
Angle of Left and Right Revolving 90° |
|
|
Diameter of Light Spot |
Φ0.2，Φ1Φ2，Φ4，Φ6，Φ8，Φ10 Co |
|
|
Filter |
Heat Absorption, Grey, |
|
|
Illumination Bulb |
12V30W Halogen Lamp |
|
|
Input Voltage |
220V/50Hz (or 110V/60Hz) |
|
|
Watch Bulb |
Wine LED |
|
|
Slipway Vertical Moving Range |
0～30mm |
|
|
Slipway Left/Right, Front/Back Moving Range |
Left/Right：105mm，Front and Back：85mm |
|
|
Fluctuate Moving Range of Jaw Part |
50mm |
|
