Lab/Industrial Microscope

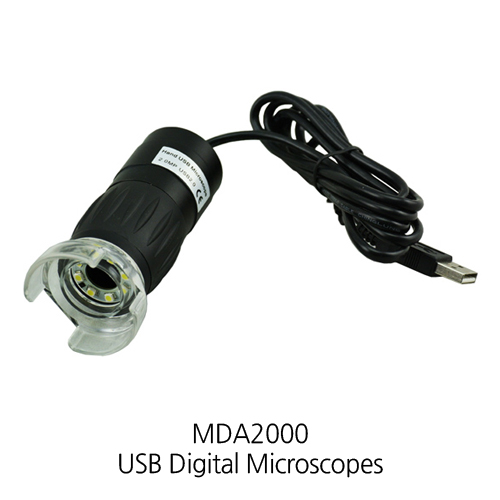

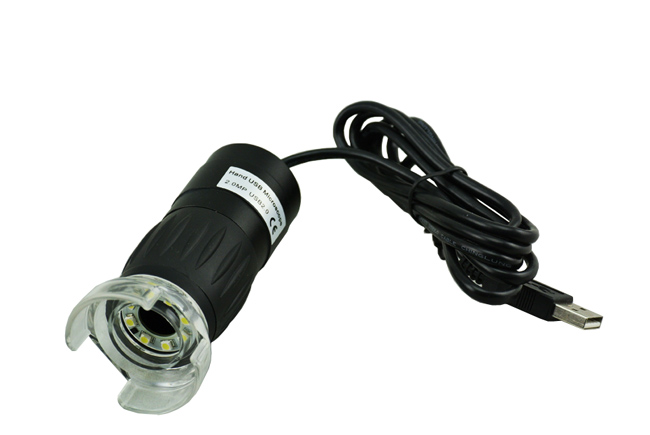

Handheld USB Metal Microscope
(2.0 Mega Pixels)
MDA2000
MDA2000 handle USB microscope composed of lighting system, optics system, sensor-IC system and software, including parts of standing base, focusing wheel, digital module cabin, USB cable, and software CD. When linking with PC and controlling by software many excellent jobs will be done, including tiny target search, display, shoot, movie, measure, compare and edit, and just function as composition of microscope, digital camera, digital video recorder, projector, scanner, micro-ruler and PC camera. MDA Series has wide applications in industry, education, research, health, and family life.
Features
|
Low magnification |
1X—40X |
|
High magnification |
200X |
|
Working distance |
5.00 mm—∞ |
|
Lighting source |
8 LED light ring |
|
Focusing |
Hand-wheel and twin screw track |
|
Function of software |
Image management: to set up, to open up, to save, and to lead in image file Image capture: to switch, to set, to shoot, to video. Image edit: picture turn, zoom, cut, modify, email, print |
|
Resolution of display |
1600*1200 |
|
Resolution of picture |
1600*1200 |
|
Resolution of video |
1600*1200 |
|
USB cable |
1.5 m |
|
Weight of device |
0.12kg |
Specification
|
Sensor parameter |
1/3.2” 2.0 Mega Pixels CMOS |
|
Active Pixels |
1600*1200 |
|
USB port |
USB 2.0 |
|
Frame Rate |
7.5 f/s @ 1600*1200 |
|
Preview Model |
1600*1200,1280*1024,640*480, 320*240， |
|
Dynamic Range |
68dB |
|
Sensitivity |
1.0V/lux-sec@550nm |
|
Spectrum response |
400nm—1000nm |
|
Shutter Type |
ERS(electronic rolling shutter) |
|
White Balance |
Auto |
|
Operating System |
Windows XP, Vista |
