[N-306] Multi-Viewing Microscope W/ Three Viewing Heads

6,282,400

Quantity:

설명

Education Microscope

Kids Microscopes

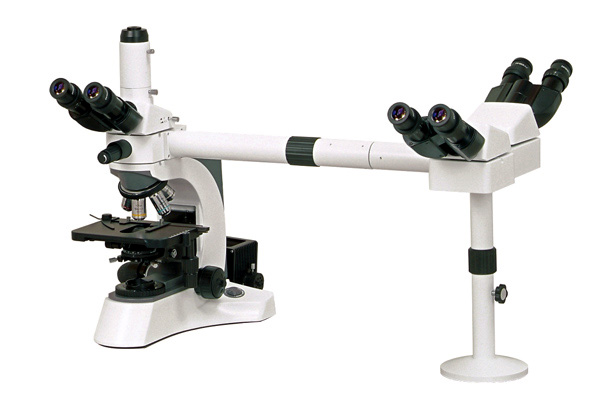

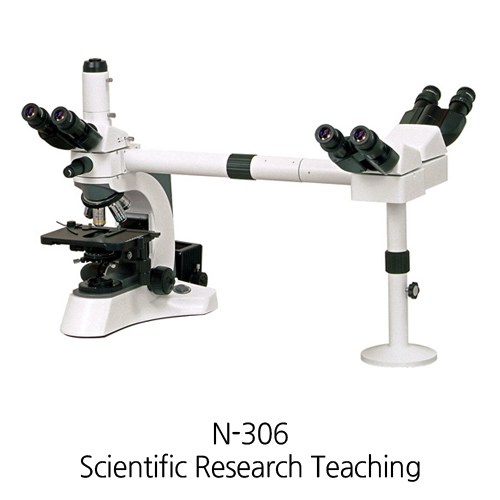

Multi-Viewing Microscope W/ Three Viewing Heads

N-306

The modular, multi viewing systems offer an outstanding image quality for each viewer thanks to their all glass optics with precision coatings.

The accessory attaches to a microscope and allows multiple users to simultaneously view the same specimen achieving a real sense of working with a microscope.

Standard systems are available for 2, 3, 4, 5, and 10 users, and custom systems with up to 20 viewing stations can be delivered according to customers’ specifications.

Advantage

– Multi-viewing Microscope allows people observation at the same time.
– With the features of Infinite Optical System, Effective Illumination, LED Pointer and images
– Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.

Specification:

N-510 N-306 N-204
Optical System Infinite Optical System S S S
Viewing Head Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 1PC 1PC 1PC
Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 4PCS 2PCS 1PC
Eyepiece Extra Wide Field Eyepiece EW10×/ 20 10PCS 6PCS 4PCS
Nosepiece Inverse Quintuple Nosepiece S S S
Objective Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× S S S
Condenser Swing Condenser N.A.0.9/ 0.25 S S S
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm S S S
Stage Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm S S S
Kohler Illumination External Illumination, Halogen Lamp 24V/ 100W S S S
Pointer Green LED Pointer , Brightness Adjustable S S S
Dual Color Pointer , Brightness Adjustable
Photo Attachment
Video Adapter C Mount 1×
C Mount 0.5×

Note: “S” is Standard configuration, “-” is Optional accessories



문의사항 있으시면 연락주시기 바랍니다.


언제든지 친절히 상담 해드리겠습니다.
