[NexiusZoom / NZ.1902‑P] Education Stereo microscopes 실체 현미경

Quantity:

설명

Education Stereo Microscopes

실체 현미경

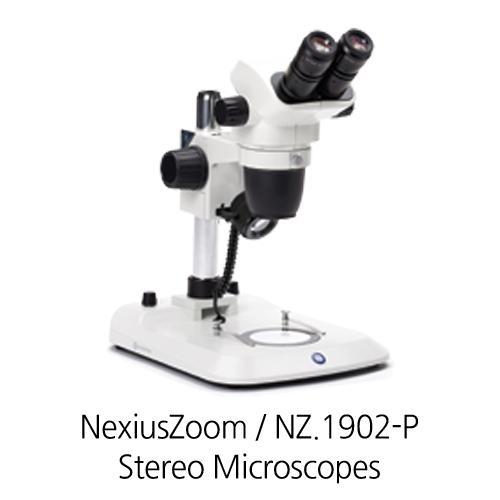

Nexius Zoom / NZ.1902‑P

The NexiusZoom stereo microscopes of Euromex enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples

The NexiusZoom stereo microscopes are supplied with a large choice of stands, with or without LED illumination. Ideal for a wide variety of educational and laboratories applications. With additional lenses and objectives magnifications from 3.3 up to 180x can be achieved



Highlights

  • Binocular and trinocular heads with HWF 10x/22 mm eyepieces
  • Zoom ratio 1 : 6.7, 6.7 to 45x standard
  • Ergonomically designed stands
  • Double 3 W LED illumination
  • Configurations up to 180x magnification

Models

Specifications

EYEPIECES
Pair of HWF 10x/22 mm eyepieces

HEAD
Binocular or trinocular heads with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments. Interpupillary distance adjustable between 54 mm and 75 mm

OBJECTIVE
Zoom 1:6.7 objective with 0.67x to 4.5x magnifications. Field of view from 33 mm to 4.9 mm. Working distance 110 mm. Auxiliary lenses 0.5x, 0.75x, 1.5x and 2.0x available. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

MAGNIFICATIONS
Working distance and field of view with standard HWF 10x / 22 High Wide Field eyepieces

STAND
Ergonomically designed pillar or rack & pinion stand with LED illumination and 2 object clamps. Ergonomically designed universal or boom stands, without illumination. Articulated arm stand for table mounting, without illumination. Alloy metal cast, hardened off-white painted

STAGE
NEW: 180 x 155mm X-Y mechanical stage with 76 x 55mm translation stage and transparent glass plate for NexiusZoom, fixed on stage of microscope. Only available with new microscopes(due to fixing), so it has to be ordered with the purchase of a microscope
(See picture: NZ.9505)

ILLUMINATION
The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately

PACKAGING
Supplied with power cord, dust cover, a spare fuse, user manual. All packed in a polystyrene box

PRODUCT VIDEO
Check out the product video below and learn more about this microscope

Accessories

NZ.6010
Pair of HWF 10x/22 mm eyepieces
NZ.6015
Pair of HWF 15x/16 mm eyepieces
NZ.6020
Pair of HWF 20x/12 mm eyepieces
NZ.6110
HWF 10x/22 mm eyepiece with micrometer
NZ.6099
Pair of eyecups
NZ.8903
Additional 0,3x lens. Working distance 287 mm. Only suitable for models with universal, boom or articulated stands
NZ.8905
Additional 0,5x lens. Working distance 165 mm. Only suitable for models with pillar or boom stands
NZ.8907
Additional 0,75x lens. Working distance 120 mm. Only suitable for models with pillar or boom stands
NZ.8915
Additional 1,5x lens. Working distance 45 mm
NZ.8920
Additional 2,0 lens. Working distance 30 mm
NZ.8950
Protection glass window, fits objectiv e
NZ.9010
Ergo rack & pinion stand with 3 W LED illuminators
NZ.9015
Ergo pillar stand with 3 W LED illuminators
NZ.5302
NexiusZoom binocular head without head holder
NZ.5303
NexiusZoom trinocular head without head holder
NZ.9090
NexiusZoom head holder for NZ.9020/NZ.9030
NZ.9020
Universal one-arm stand without NexiusZoom head holder and without illumination
NZ.9025
Black articulated stand with table clamp without holder
NZ.9081
Head 76 mm holder for NexiusZoom stereo head NZ.9020/9030 and black universal stand NE.9025
NZ.9030
Universal double-arm stand without head holder and without illumination
NZ.9040
Dark Field attachment
LE.1972
Ring illuminator with 60 LEDs with adjustable light intensity. External power supply 110-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 20.000 Lux at 100 mm distance and color temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm
LE.1973
Ring illuminator with 144 LEDs with adjustable light intensity. External power supply 100-240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 23.000 Lux at 100 mm distance and color temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm
