[NJL-1] NJF Metallurgical Microscope

2,315,700

Quantity:

설명

Lab/Industrial Microscope

NJF Metallurgical Microscope

NJL-1





NJF-1 Up-right Metallurgical Microscope

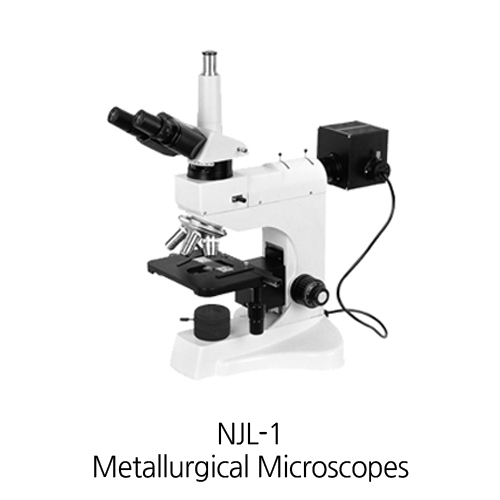

NJL-1 Up-right Transmitted and Reflected Metallurgical Microscope

Metallurgical microscope is widely used for metallurgical, mineral identification and crystal, integrated circuit examination and research. It is available to be supplied with transmitted illumination, imaging and viewing system and accessories as a biological microscope for medical institute use.

Specifications:

NJF-1

NJL-1

Viewing Head Trinocular Head, Inclined at 30°,Vertical photo/video port (100%-0% or 20%-80%)

Eyepiece WF10X/18

WF10X/18 with 0.1mm micrometer and cross hair

Nosepiece Quintuple nosepiece (3 holes for bright field objective use,2 holes for dark field objective use)

Objective Infinitive Plan Achromatic Objective 4X、10X、20X、40X、80X

Infinitive Plan Achromatic 40X、100X (for biological use)

Polarization System Built-in polarizer and Analyzer
Bright/Dark Viewing Field System Built-in Conversion Slide for Bright/dark Field Illumination
Diaphragm Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm
Stage Double Layer Mechanical Stage, Size 185X142mm

Illumination Lamp Center adjustable, T-H lamp 12V50W, Brightness adjustable

Built-in, T-H lamp 12V20W , Brightness adjustment

Collector Center adjustable Kohler collector with field iris diaphragm

Option Eyepiece WF8X/18, WF12.5X/18.5
Photo attachment
1X or 0.5X Video attachment
Specimen Presser

Note :● Outfit    ○ Option
