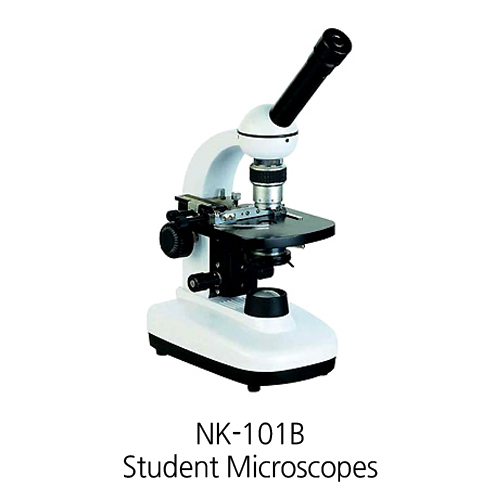

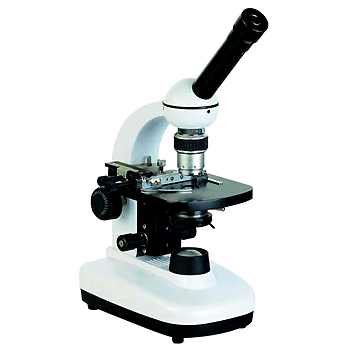

[NK-101B] Binocular Student Microscope
₩460,200
설명
Education Microscope
Student Microscopes
Binocular Student Microscope
NK-101B
Features
– 45°inclined and 360°rotational with the reasonable system for easily viewing.
– Eyepiece WF10x
– Zoom Objective 5x – 30x
– Working distance 8mm
– Illumination power:220V/15W or 110V/15W
– Suitable for medical research,Geological Analysis, Educational experiments & Electronic industry fields etc.
Specifications
| Item | Specification |
Model No.
|
|||
|
NK-101A
|
NK-101B
|
NK-101C
|
NK-101D
|
||
| Viewing Head | Monocular(45° inclined, 360° Rotatable) |
S
|
S
|
S
|
|
| Demonstration Head |
O
|
O
|
S
|
||
| Eyepiece | WF10x |
S
|
S
|
S
|
S
|
| Objective | Zoom objective 5x-30x |
S
|
S
|
S
|
S
|
| Stage | Plain stage with slide clips ,stage size 125x120mm |
S
|
S
|
S
|
|
| With attachable mechanical stage,adjustable arrang 60x30mm |
O
|
S
|
O
|
O
|
|
| Condenser | Single lens withe iris diaphragm |
S
|
|||
| Abbe condenser NA1.25 with iris diaphragm & filter holder,Spiral adjustment for condenser |
S
|
S
|
S
|
||
| Illumination | Halogen lamp 6V/15W |
S
|
S
|
S
|
S
|
| Fluorescent lamp 7W,220V or 110V |
O
|
O
|
O
|
O
|
|
| Focusing | Coarse adjustment |
S
|
|||
| Separate coarse & fine adjustment |
S
|
||||
| Coaxial coarse and fine adjustment ,range 13mm,Division of fine focus adjustment 0.002mm |
S
|
S
|
|||
| Optional Accessories | Eyepiece P5X, P15X |
O
|
O
|
O
|
O
|
| Halogen Lamp 220V or 110V-6V/15w |
O
|
O
|
O
|
O
|
|
문의사항 있으시면 연락주시기 바랍니다.
언제든지 친절히 상담 해드리겠습니다.
