[OTWTTL300] TTL Dental Surgical Loupe (3.0X)

597,000

Quantity:

설명

Medical Microscope

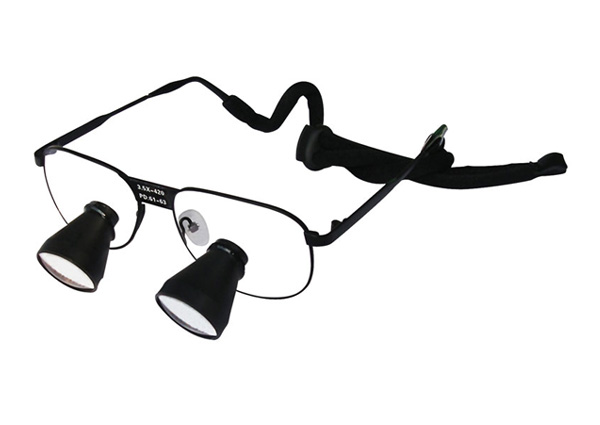

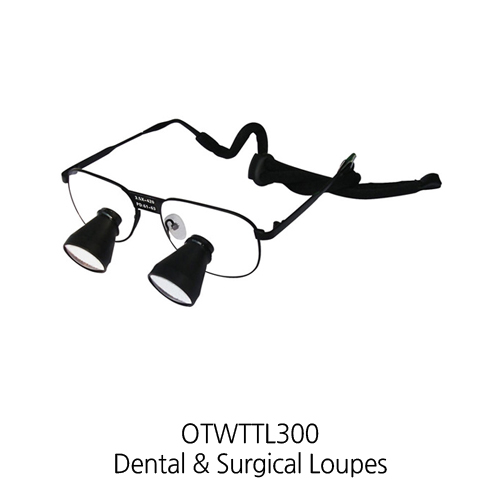

TTL Dental Surgical Loupe (3.0X)

OTWTTL300



TTL is “Through The Lens”, It means that the loupes are glued to your lens. Although TTL is slightly lighter than Flip-Up system, it can not be moved from line of vision and the user can not make adjustments to the angle of declination to accommodate for the patient’ s position. And since each pair of TTL loupes is custom made, it is much more expensive than the Flip-Up loupes. The loupes Through The Lens are light weight, and laconic appearance.It has fashionable design and comparable with designer frames.

• Razor-sharp, edge-to-edge clarity
• Extremely high resolution optics
• Lightweight design
• Multi-coated for: anti-glare, anti-fog and scratch-resistance

Model
Power
Working Distance
Field of View
Depth of Field
Weight
OTWTTL250S
2.5x
340mm / 13,4 in
90mm / 3.6 in
80mm / 3.2 in
60gr / 1.9 ounce
OTWTTL250R
2.5x
420mm / 16.5 in
100mm / 4.0 in
90mm / 3.6 in
60gr / 1.9 ounce
OTWTTL250L
2.5x
500mm / 19,7 in
110mm / 4.4 in
110mm / 4.4 in
60gr / 1.9 ounce
OTWTTL250XL
2.5x
550mm / 21,7 in
120mm / 4.8 in
120mm / 4.8 in
60gr / 1.9 ounce
All Models
Through the lens. Adjustable viewing angle not allowed
All Models
Pupillary distance: 58/59/60/61/62/63/64/65/66/67/68MM
All Models
Average weight including (medium) frame: 60 grams / 1.9 ounce
