[SMW-A09] 40X-1000X Trinocular Biological Microscope

771,000

Quantity:

설명

Lab/Industrial Microscope

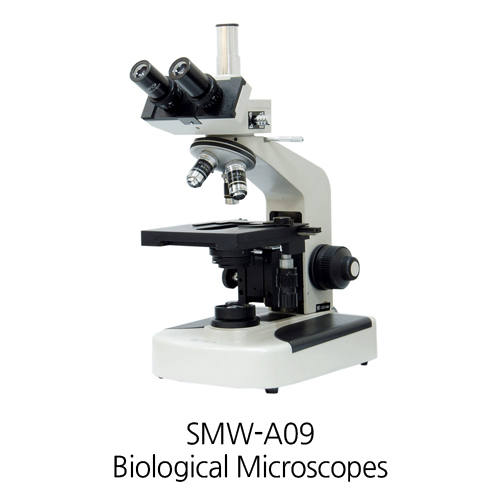

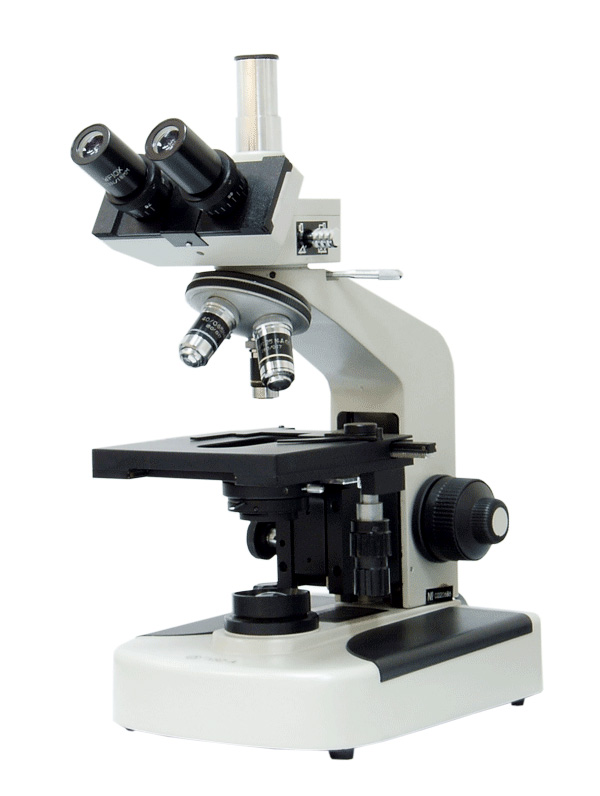

40X-1000X Trinocular Biological Microscope

SMW-A09

The product is widely suitable to observe and analyze in experiment for medicine and hygiene, farming and forestry of plant protection, animal husbandry and aquatic product, biological engineering, college and school etc.

Model
SMW-A08
SMW-A09
Total Magnification
40X-1000X
Viewing Body
30 degree Incline Binocular Body, Interpupillary Adjustable Distance: 55mm-75mm
S
30 degree Incline Trinocular Body, Interpupillary Adjustable Distance: 55mm-75mm
S
Eyepiece
WF10X (Viewing Field Diameter:ø18mm)
Objectives
Adjustable Parfocal Achromatic Objective 4X/NA 0.1, 10X/NA 0.25, 40X(s)/NA 0.65, 100X(s,oil)/NA.1.25
Mechanical Stage
Size: 140mm-140mm, Moving Range: 70mm-50mm, Vernier Division: 0.1mm
Nosepiece
Nosepiece of four holes revolving on ball
Condenser
Abbe Condenser: N.A. 1.25, Elevating Range:15mm
Focusing
Coaxial coarse/fine focusing adjustment. Focusing Range: 20mm. Division of Fine Focus Adjustment: 0.002mm
Illumination
6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V.Filter (blue, yellow, ground glass)

Note: “-” is unavailable, “S” is standard, “O” is optioanl.
1) Adjustable parfocal objective is the patent product of manufacturer, it can improve the parfocal character of the instrument.
