Life Science Stereo Microscopes
실체현미경
StereoBlue
Euromex BlueLine offers a high-quality range of stereo microscope models, which are specifically meant for laboratory and higher education useStereoBlue microscopes are especially developed for laboratory applications, education and greatly appreciated by biologists, entomologists, geologists, mechanical and electronic engineers and other professionals like jewelers and dental technicians. These microscopes are available with dual pair of objectives or zoom objective for magnifications from 3.5x to 135x and incident and transmitted LED illuminations
Highlights
- Designed for professional use
- Robust and sturdy
- Dual magnifications or Zoom models
- Available in ergonomic rack & pinion, pillar and universal stands
- Double 3 W LED illumination
- Ergonomic carrying grip
- 5 years warranty
Models
Specifications
EYEPIECE(S)
Pair of WF10x/20 mm eyepieces supplied with eyecups
HEAD
Binocular or trinocular 45° inclined tubes. Diopter adjustment on both eyepieces, except the models. SB.1302-P/ 1402-P and SB.1302 /1402, which have diopter. Adjustment on one side. Interpupillary distance adjustable between 55 mm and 75 mm. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
DUAL MAGNIFICATION OBJECTIVES
Nosepiece with dual 1x/3x or 2x/4x revolving objectives • Magnifications 10x/30x or 20x/40x. Field of view 20 mm/6.6 mm or 10 mm/5.0 mm. Working distance 100 mm
ZOOM OBJECTIVE
Zoom Stereo 0.7x to 4.5x parafocal objective Magnification from 7x to 45x. Field of view 28.5 mm to 4.4 mm. Working distance 100 mm
MAGNIFICATIONS

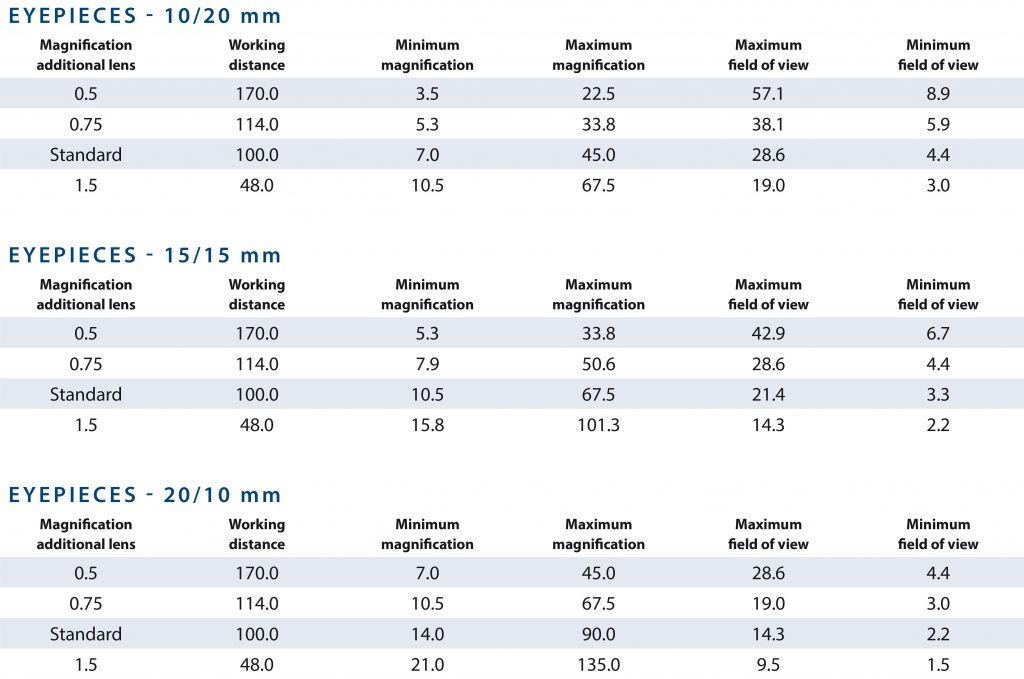

Working distance and field of view specifications
STANDS
The rack & pinion and pillar stands of the StereoBlue are equipped with ergonomically designed flat bases, complete with 2 object clamps and Ø 60 mm transparent and black/ white stage plate. The coarse adjustment is equipped with tension control

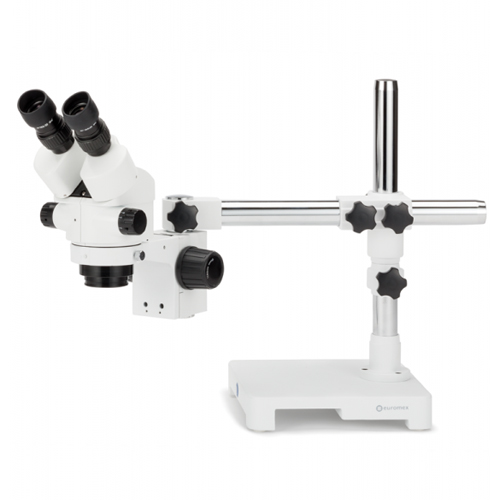

The ergonomically designed universal single arm stand is ideal for looking at large samples or working under the microscope. Standard supplied without illumination. Suitable for e.g. ring illuminators LE.1972 and LE.1973. The stands are alloy metal casted with hardened off-white coating
(More illumination options see chapter Accessories)
ILLUMINATION

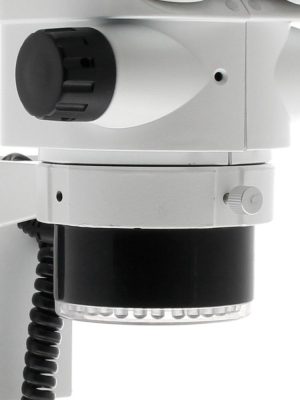

With 3 W transmitted and incident LED illuminators which can be used simultaneously or adjusted seperately. SB.3903 and SB.3903-P models come with a built-in 30 LED ring light for reflexed illuminator and 3 W transmitted illuminator
Supplied with power cord, dust cover, a spare fuse, Ø 60 mm transparent and black/ white stage plates and user manual. All packed in a polystyrene box
Accessories
SB.6010
Pair HWF 10x/20 mm eyepiece for StereoBlue
SB.6015
Pair HWF 15x/15 mm eyepiece for StereoBlue
SB.6020
Pair HWF 20x/10 mm eyepiece for StereoBlue
SB.6110
HWF 10x/20 mm eyepiece with micrometer
SB.6099
Pair of eyecups
SB.8905
Additional 0,5x lens, working distance 170 mm. Suitable SB.1902-P/1903-P models. With rack-and pinion models SB.1902 and SB.1903, the maximum object height is 2 cm
SB.8907
Additional 0,75 lens, working distance 114 mm. Suitable for SB.1902-P/SB.1903-P models.With rack-and pinion models SB.1902 and SB.1903, the maximum object height is 1 cm
SB.8915
Additional 1,5x lens, working distance 48 mm. For SB.1902/1903 zooms
SB.9570
Pair object clamp for stage
SB.9833
C-mount adapter with 0,33x lens for 1/3 inch cameras
SB.9850
C-mount adapter with 0,50x lens for 1/2 inch cameras
SB.9952
Stage plexi glass plate transparent 60 mm diameter
SB.9956
Stage plate black/white 60 mm diameter
AE.5130
Universal Ø 23.2 mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. Needs T2 adapter
AE.5025
T2 ring for Nikon D SLR digital camera
AE.5040
T2 ring for Canon EOS SLR digital camera
AE.1112
Stage 76 x 26 mm micrometer slide, 50 mm divided in 500 parts, 100 µm per division
PB.5245
Lens cleaning paper, 100 sheets per pack
PB.5274
Iso propyl alcohol 99%, 200 ml
PB.5275
Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs
문의사항 있으시면 연락주시기 바랍니다.
언제든지 친절히 상담 해드리겠습니다.
전화 상담 및 문의글 남겨주시면 빠른시간내로
견적서를 메일로 받아보실 수 있습니다.
추가 정보
| OPTION | SB.1302, SB.1302-P, SB.1402, SB.1402-P, SB.1902, SB.1902-P, SB.1902-U, SB.1903, SB.1903-P, SB.1903-U, SB.3903, SB.3903-P |
|---|
