설명
Lab/Industrial Microscope

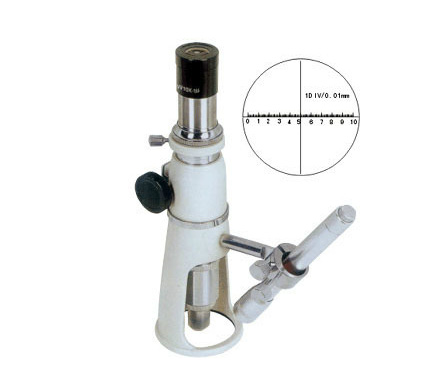

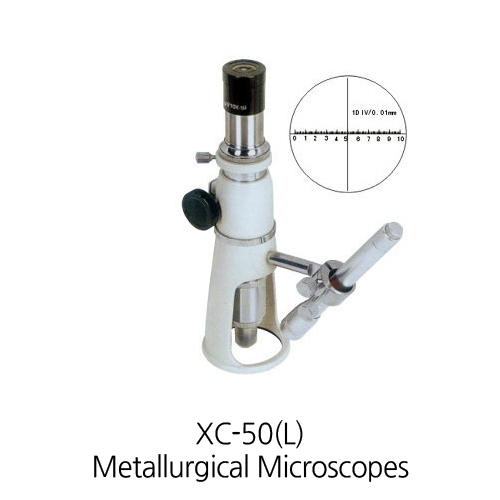

Portable Metallurgical Measuring Microscope
XC-50(L)
The portable measuring microscope is used for measuring or viewing purposes in production or laboratory. It is particularly suitable for spot examination of machinery industry, paper making, print and textile, etc. The product features small size, light weight, nice design and easy operation. It is also suitable to be used by students.
Specification
|
Item # |
XC-100L |
XC-50L |
XC-40L |
XC-20L |
|
Total Magnification |
100× |
50× |
40× |
20× |
|
Mechanical Tube Length |
160mm |
|||
|
Eyepiece |
10× |
|||
|
Objective |
10× |
5× |
4× |
2× |
|
Numerical Aperture |
0.25 |
0.12 |
0.1 |
0.05 |
|
Diameter of Viewing field in Eyepiece |
φ18mm |
|||
|
Eyepiece Reticle |
0.1mm |
|||
|
Fine Division |
0.01mm |
0.02mm |
0.025mm |
0.05mm |
|
Working Distance |
6.93mm |
17.6mm |
18mm |
17.2mm |
|
Focus Range |
30mm |
|||
|
Diameter of Bearing Plane |
φ63mm |
|||
|
Height of Microscope |
210mm |
|||
|
Mass of Microscope |
650g |
|||
|
Illumination |
Pen light, AAA #7 battery |
|||
