설명
Lab/Industrial Microscope

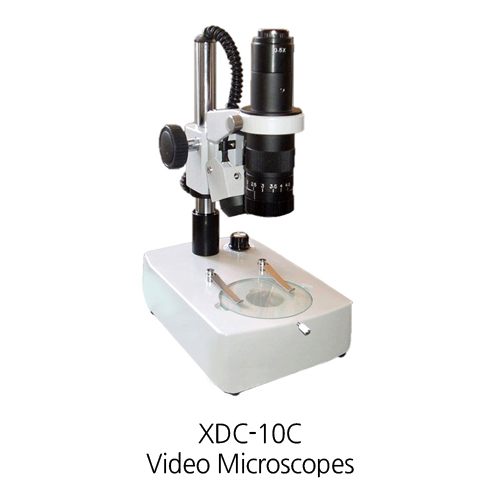

Video Microscope
XDC-10C
SPECIFICATION
Magnification of the main zoom objective: 0.7×-4.5×
Magnification of the photographic eyepiece: 0.5×
Working distance: 95mm
Fousing range of the knob: 60mm
Adjustment range of the elevator: 110mm(XDC-10A is 250mm)
Illuminator
Input voltage: 110V or 220V
Output: the incident illuminator: 12V 10W halogen lamp with cup.
the transmitted illuminator: 12V 10W halogen lamp
| XDC-10A | XDC-10B | XDC-10C | XDC-10D | XDC-10E | XDC-10F | |
| A type stand | * | |||||
| B type stand | * | |||||
| C type stand | * | |||||
| D type stand | * | |||||
| E type stand | * | |||||
| F type stand | * | |||||
| 0.7×-4.5× main zoom objective |
* | * | * | * | * | * |
| 0.5× photographic eyepiece |
* | * | * | * | * | * |
| hexagon spanner | * |
-OPTIONAL ACCESSORIES –
Photographic eyepiece: 0.35×,0.5×,0.75×,1×,1.5×,2×
Auxiliary objective:0.3×(only for XDC-10A),0.5×,0.75×,1.5×,2×
Mechanical stage
