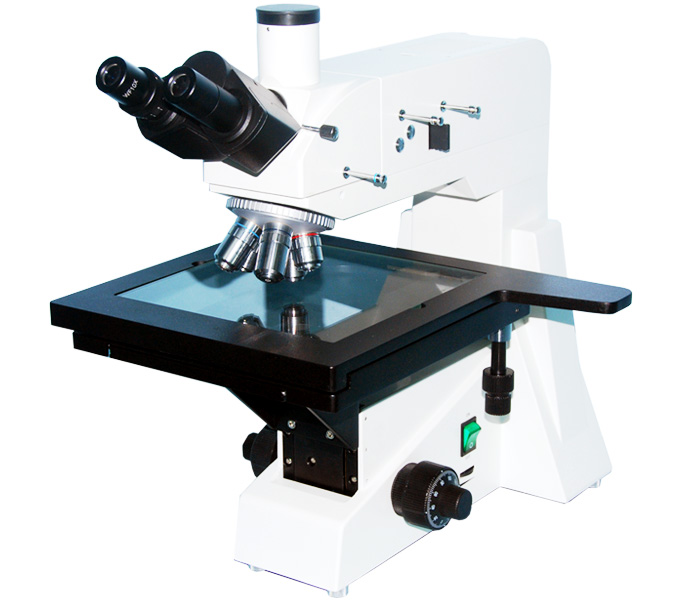

[XJL-101] Metallurgical Microscope W/ 6×6 Inch Working Stage

2,833,200

Quantity:

설명

Lab/Industrial Microscope

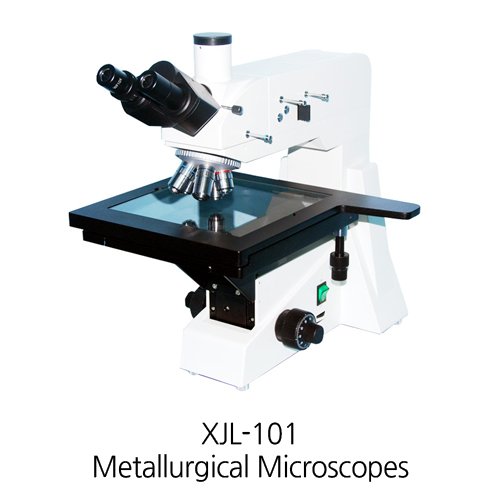

Metallurgical Microscope W/ 6×6 Inch Working Stage

XJL-101





XJL-101 series reflected metallurgical microscopes are suitable to observe the microscopical surfaces of non-transparent object. They are equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. They have clear and  high-contrast picture beautiful sculpt, convenient control and etc. they are the ideal instrument in research work in metallography,mineralogy, precision engineering, electronics and etc. They are suitable for scientific research, teaching demonstration in the colleges and factory.

Advantage

1) With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
2) With large move range mechanical stages, can move quickly and slowly.
3) Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 0.7μm.
4) 6V 20W halogen lamp, adjustable brightness.
5) Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port.

Specification

Model XJL-101A
Eyepiece Wide field  WF10X(Φ18mm)
Objective Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80
Eyepieces tube Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch)
Vertical illumination unit 6V 20w halogen lamp, brightness control.
Vertical illumination with field diaphragm, aperture diaphragm and polarizer,(Y,B,G)filter and frosted filter
Focus system Stage adjustable, Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 0.7μm.
Nosepiece Quintuple(Frontward ball bearing inner locating)
Stage Three layer mechanical
Size:1600mmX150mm,
movingrange:204mmX204mm

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field  WF16X(Φ11mm) 1051016
Dividing  10X(Φ18mm)  0.1mm/Div 1021010
Objective Plan achromatic objectives with long working distance (no cover glass) PL L 50X/0.70 2250150
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75 (Spring) 2250160
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) 2250111
Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, oil) 2240111
CCD adapter 0.4X 810001
0.5X 810004
1X 810002
0.5X with dividing 0.1mm/Div 810003
Camera DV-1 With USB & video output 800001
DV-2 With USB output 800003
DV-3 With video output 800005
Photo unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece 840001
4X Focusing photograph attachment 840002
MD Adapter 840003
PK Adapter 840004
Digital camera adapter CANON(A610,A620,A630,A640) 820001
