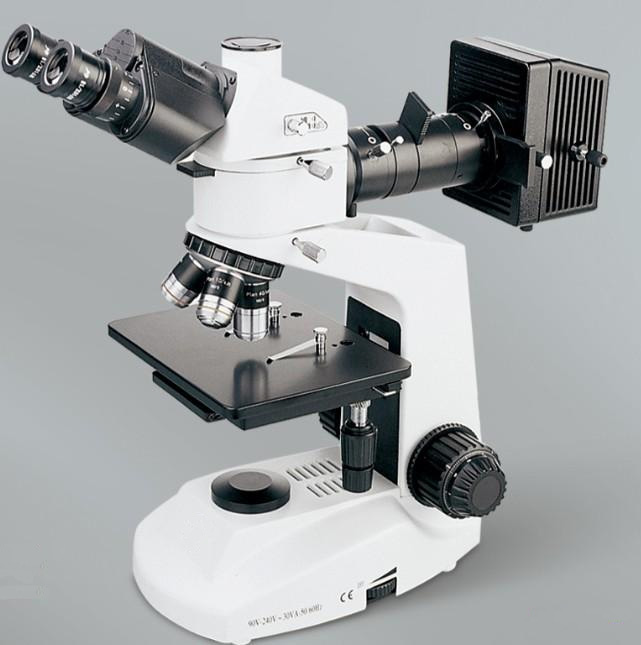

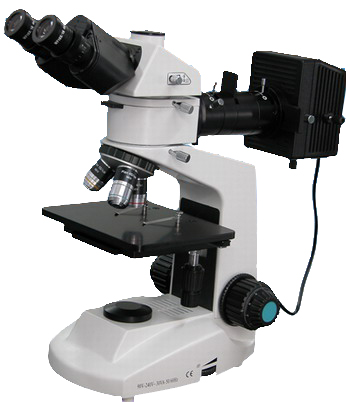

[XJZ-A3] Reflected Metallurgical Microscope

₩2,500,500

Quantity:

설명

Lab/Industrial Microscope

Reflected Metallurgical Microscope

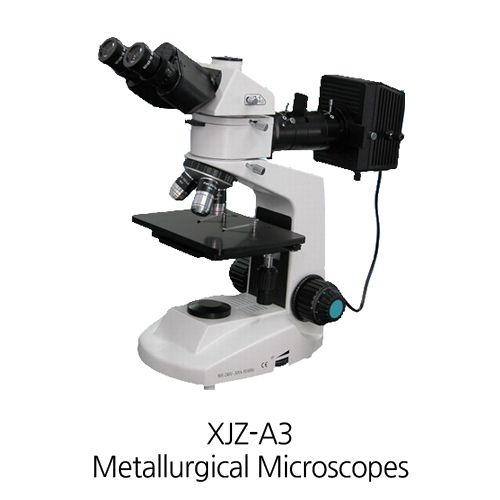

XJZ-A3





XJZ-A3 Reflected Metallurgical Microscope can provide superior image and reliable mechanical structure. Easy operating，various of accessories, widely used in teaching and research metallographic analysis, Semiconductor silicon wafer inspection, geology mineral analysis, precision engineering surveying fields;

Advantage:

– Optical system: Color Corrected Infinity Optical System(CSIS),better image, higher resolution, more comfortable observation;
– Eyepiece and Objective: high eyepoint widely plan eyepiece PL10x/22mm，provide more widely and plan observation space and can be installed various of micrometer. Professional infinity plan achromatic LWD metallurgical objective, no cover glass design;
– Viewing head：Gemel binocular/trinocular/digital head,diopter adjustable 30°inclined，can photograph and image pickup，can collect and preserve the image, also can analysis the image with computer and specialized software;
– Focus：Low hand position coaxial coarse and fine focusing mechanism, Coarse adjustment range 28 mm , precision of fine adjustment: 0.002mm，with stage position upper and lower adjustment mechanism, sample height up to 50mm(reflection), 30mm(transmission and reflection), with coarse tension adjustment devices and random limit device
– Illumination system：reflected illuminator with oblique lighting, when observe the fine structure,it can be generated 3-D relief special observation. Adaptive 90V-240V voltage，single 3W LED high brightness cold light source.

Specifications

Optical system

Infinity color corrected optical system

Viewing head

Gemel binocular, 30°inclined, 360º rotatable, Interpupillary distance adjustable between：54-75mm, Diopter adjustment ±5

Gemel trinocular, refract rate: binocular 100%，binocular:trinocular=50%:50%

Eyepiece

High eyepoint widely field plan eyepiece PL10X22mm

High eyepoint widely field plan eyepiece PL15X/16mm

Objective

Infinity LWD plan achromatic metallurgical objective:

LMPL5X /0.15 /WD10.8 LMPL10X/0.3 /WD10 LMPL20X/0.45 /WD4

Infinity LWD plan semi-apochromatic metallurgical objective:

LMPLFL50X/0.55 /WD7.8 LMPLFL100X/0.80 /WD2.1

Nosepiece

Reversed quintuple nosepiece

focus

Reflective body, low hand position coaxial coarse and fine focusing mechanism. Coarse adjustment range 28 mm , with stage position upper and lower adjustment mechanism, The maximum sample height up to 50mm, precision of fine adjustment: 0.002mm， with coarse tension adjustment devices and random limit device

Reflection and Transmission Body, low hand position coaxial coarse and fine focusing mechanism, coarse adjustment range 28mm, with stage position upper and lower adjustment mechanism, The maximum sample height up to 30mm, precision of fine adjustment: 0.002mm， with coarse tension adjustment devices and random limit device,with 12V 50W transmission illumination system. Upper and bottom light can be controlled independently.

stage

175×145mm double-layer mechanical stage, removable, the stage through a special process. anti-corrosion and wear resistance, moving range 76mmX50mm， with a metal stage board when reflected illumination used.

175×145mm double-layer mechanical stage, removable, the stage through a special process. anti-corrosion and wear resistance, moving range 76mmX50mm， with a glass stage board when reflected and transmission illumination used.

Reflective illumination System

Reflected Kohler illumination, with field diaphragm and aperture diaphragm, center adjustable, with oblique lighting, adaptation wide voltage 90V-240V input，single high power 3W LED，pre-center，light intensity continuously adjustable.

Transmission illumination system

Wide voltage 90-240V,12V50W halogen light house, the center of lamp adjustable，swing achromatic condenser(N.A 0.7)

Polarizing kit

Polarizer

Fixed analyzer/360°rotating analyzer

Filter

Interference filters for reflected illumination:blue≤480/green520-570/red 630-750/color balance filter(white)

For transmission：yellow/green/blue/neutral

Photo accessories

Photo tube(with PK mount)，photo eyepiece 3.2X

Video accessories

CTV0.35X/0.5X/1.0X

문의사항 있으시면 연락주시기 바랍니다.

언제든지 친절히 상담 해드리겠습니다.
