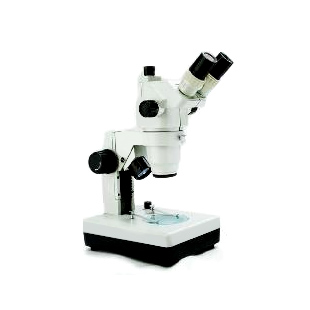

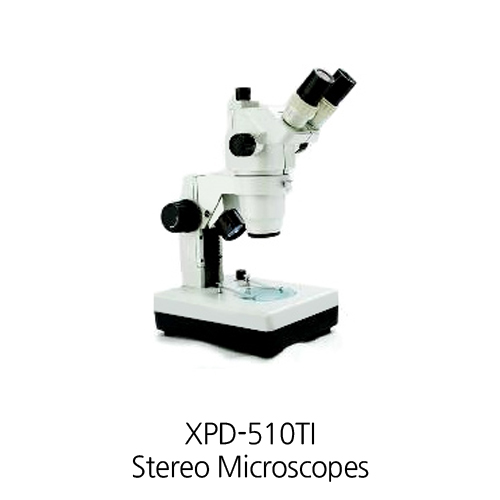

[XPD-510TI] Stereo Microscope
₩1,040,600
설명
Lab/Industrial Microscope
Stereo Microscope
XPD-510TI
Standard configurations
| zoom ratio | 1:8.3 |
| Objective zoom range | 0.6X-5X |
| Eyepice | SWF10X/22mm |
| Working distance | 95mm |
| Interpupillary distance adjustment range | 48mm-75mm |
| Binocular head | inclination of 45。 |
| Diopter adjustment | ±5 diopter |
| Optical Body Rotation。 | 360 |
Technical data
|
Project
|
Auxiliary Objective
|
Eyepiece
|
Working distance(mm)
|
|||||||
|
SXF10X
|
WFl5X
|
WF20X
|
WF25X
|
|||||||
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cation n
|
Visual field
|
|||
|
Data
|
0.5X
|
3X-25X
|
73-8.8
|
4.5X-37.5X
|
53.3-6.4
|
6X-50X
|
43.3-5.2
|
7.5X-62.5X
|
40-4.8
|
200
|
|
0.75X
|
4.5X-37.5X
|
49-5.9
|
6.75X-56.25X
|
35.5-4.2
|
9X-75X
|
28.8-3.5
|
11.25X-93.8X
|
26.6-3.2
|
125
|
|
|
1X
|
6X-50X
|
36.7-4.4
|
9X-75X
|
26.7-3.2
|
12X-100X
|
21.6-2.6
|
15X-125X
|
20-2.4
|
95
|
|
|
1.5X
|
9X-75X
|
24.4-2.9
|
13.5X-112.5X
|
17.7-2.1
|
18X-150X
|
14.4-1.7
|
22.5X-187.5X
|
13.3-1.6
|
55
|
|
|
2X
|
12X-100X
|
18.4-2.2
|
18X-150X
|
13.3-1.6
|
24X-200X
|
10.8-1.3
|
30X-250X
|
10-1.2
|
35
|
|
