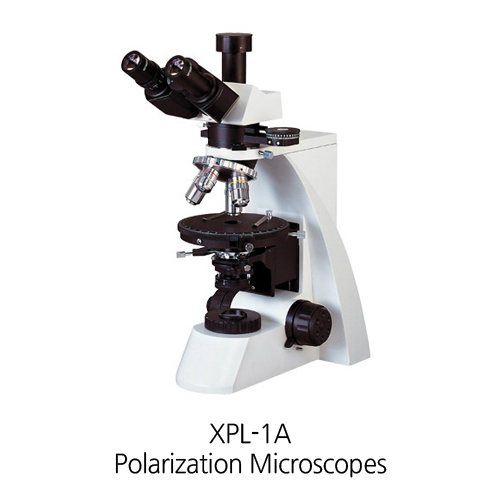

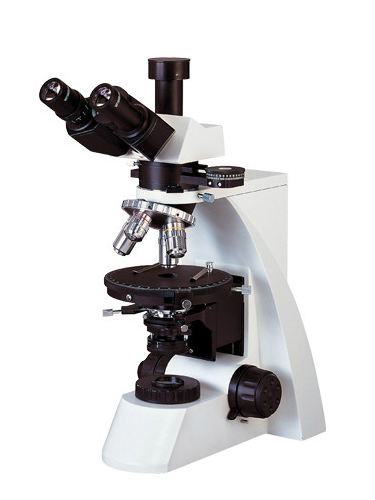

[XPL-1A] Polarization Microscope W/ Nosepiece Adjustment
₩2,740,800
설명
Lab/Industrial Microscope
Polarization Microscope W/ Nosepiece Adjustment
XPL-1A
XPL-1 series polarization microscopes are utilized polarize light to observe and research the matter which have double refraction features, the user can make single polarizing view, orthogonal polarizing view, cone light view. They are applied in geology, chemicals, physic and leechdom fields. They are also widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. They are the ideal instruments for scientific research and universities teaching demo.
Advantage
1) Equipped with strain-free plan achromatic objectives or infinity strain-free plan achromatic objectives and wide field eyepiece
2) Nosepiece can adjust the center of objective
3) Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2µm
4) Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm
5) Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently
6) Revolving round stage, 360°part scale and graduated in 1°increments, minimum resolution 6′ when using vernier scale, center adjustable and with tightener
7) Illumination with 6V20W halogen lamp, adjustable brightness
Specification
| Model | XPL-1A |
| Eyepiece | Wide field WF10X(Φ18mm) |
| Division eyepiece 10X(Φ18mm) 0.1mm/Div | |
| Objective |
Infinity strain-free plan achromatic PL 4X/0.10
|
|
Infinity strain-free plan achromatic PL 10X/0.25
|
|
|
Infinity strain-free plan achromatic PL 40X/0.65(Spring)
|
|
|
Infinity strain-free plan achromatic PL 100X/1.25(Spring, oil)
|
|
| Eyepieces tube | Trinocular, ,inclination of 30˚,100% image light for photography capable |
| Intermediate attachment | 360° rotatable with scale and minimum vernier |
| Bertrand lens ,impellent style, center adjustable | |
| λ Compensator | |
| λ/4 Compensator | |
| Quarts wedge compensator | |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2µm. |
| Nosepiece | Quadruple (Frontward ball bearing inner locating) |
| Stage | Rotatable stage, Diameter μ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6′ center adjustable and with tightener |
| Abbe condenser | NA.1.25 Rack & pinion adjustable |
| Polarizer | 360° rotatable, with four scale is 0°,90°,180°, 270° |
| Filter | Frosted filter |
| Blue filter | |
| Collector | For illumination with halogen lamp (With field diaphragm) |
| Illumination unit | With polarizer,6V 20w, halogen lamp, adjustable brightness |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field WF16X(φ11mm) | 1051016 |
| Eyepieces tube | Binocular, Inclination of 30 | 011009 |
| Objective | Strain-free plan achromatic PL 5X/0.12 | 2810105 |
| Strain-free plan achromatic PL 20X/0.40 | 2810120 | |
| Strain-free plan achromatic PL 60X/0.85 (Spring) | 2810160 | |
| Infinity strain-free plan achromatic PL 4X/0.10 | 2820104 | |
| Infinity strain-free plan achromatic PL 20X/0.40 | 2820120 | |
| Nosepiece | Quintuple(Frontward ball bearing inner locating) | 032004 |
| Filter | Green filter | 115002 |
| Yellow filter | 115003 | |
| CCD adapter | 0.4X | 810001 |
| 0.5X | 810004 | |
| 1X | 810002 | |
| 0.5X with dividing 0.1mm/Div | 810003 | |
| Camera | DV-1 With USB & video output | 800001 |
| DV-2 With USB output | 800003 | |
| DV-3 With video output | 800005 | |
| Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 |
| 4X Focusing photograph attachment | 840002 | |
| MD Adapter | 840003 | |
| PK Adapter | 840004 | |
| Digital camera adapter | CANON(A610,A620,A630,A640) | 820001 |
