설명
Lab/Industrial Microscope

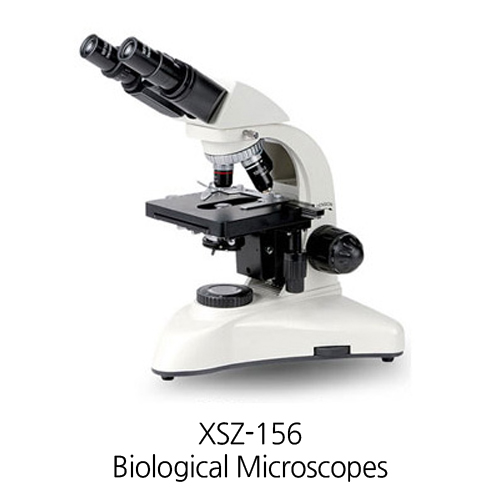

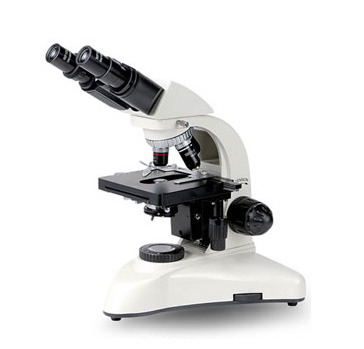

Binocular Biological Microscope
XSZ-156
This series microscope is specially developed for various applied scopes .It is widely used, from daily work to scientific research ,in Biology, Histology, Pathology, Medicament chemistry research and Clinical examination. Because of higher capability with lower price and humanized configuration design. It becomes the first choices of lndividual,Colleges & schools, Hospitals and Scientific research organization.
Features:
1) Wide-field Eyepiece.high light illumination and superior optical parts make the image clear ,sharp and bright.
2) Backward nosepiece with superior objectives makes the best viewing effect and more space for the operator.
3) Wide mechanical stage with 2-Microslide specimen clamp provides more convenience for the observer.
4) High precision focusing adjustment system and humanized configuration design provide operator more comfortable.
|
Specification
|
Model
|
||
|
XSZ-156
|
XSZ-156T
|
||
|
Viewing head
|
Compensation Free Binocular Head 30°
|
S
|
|
|
Compensation Free Trinocular Head 30°
|
S
|
||
|
Interpupillary Distance
|
55mm -75mm
|
S
|
S
|
|
Eyepiece
|
WF10 ×
|
S
|
S
|
|
Objective
|
Achromatic objectives:4X,10X,40X(S),100X(S) Oil
|
S
|
S
|
|
Stage
|
Double layers mechanical stage
|
S
|
S
|
|
Stage size: 140mmx 140mm
|
|||
|
Moving range: 75mm × 50mm
|
|||
|
Condenser
|
Swing type N. A.1.25 Abbe condenser with iris diaphragm & filter
|
S
|
S
|
|
Focusing
|
Coaxial coarse & fine focusing adjustment with rack and pinion mechanism
Fine focusing scale Value 0.002mm
|
S
|
S
|
|
Collector
|
High brightness Kohler illumination
|
S
|
S
|
|
Light source
|
Halogen bulb 6V/20W AC 85-230V
|
S
|
S
|
|
Adjustable brightness
|
|||
|
Optional Accessory
|
Eyepieces: WF16x,WF20x,P16x
1.3Mega pixel,CMOS electronic eyepiece
Plan-Objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Semi-plan objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Infinity objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Photo and CCD attchment
|
||
