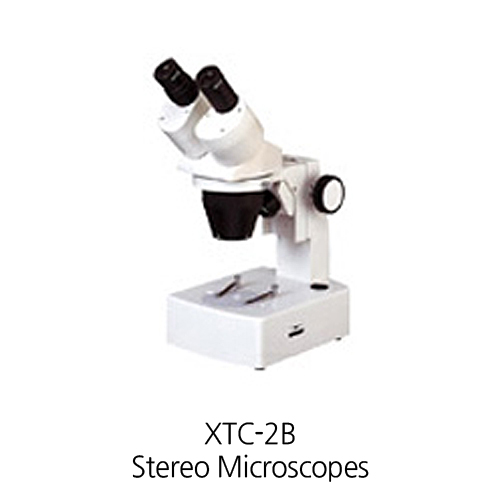

[XTC-2B] Stereo Microscope

393,800

Quantity:

설명

Lab/Industrial Microscope

Stereo Microscope

XTC-2B

XTC series stereo microscopes are a kind of positive image microscope; they have long working distance, clear and smooth image quality,wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.

Advantage

1) Eyepiece field is wide and clear.
2) Equipped with two pairs of objectives
3) Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and the left eyepiece tube diopter can be adjusted, interpupillary distance adjustable range from 55mm to 75mm.

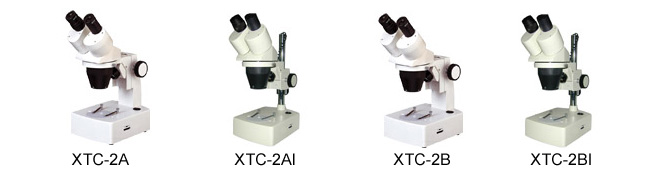

XTC-2 Series Specification

Model Specification XTC-2A XTC-2AI XTC-2B XTC-2BI
Eyepiece WF10X(Φ20mm)
Objective 1X,3X 2X, 4X
Total magnification 10X,30X 20X, 40X
Visual field Φ20-Φ6.7 Φ10-Φ5
Working distance 88mm
Vertical effective movement 88mm<=h<265mm 88mm<=h<130mm
Base size 215X160X60mm
Illumination model Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Divisional wide field eyepiece 10X(Φ20mm) 0.1mm/Div 1111010
