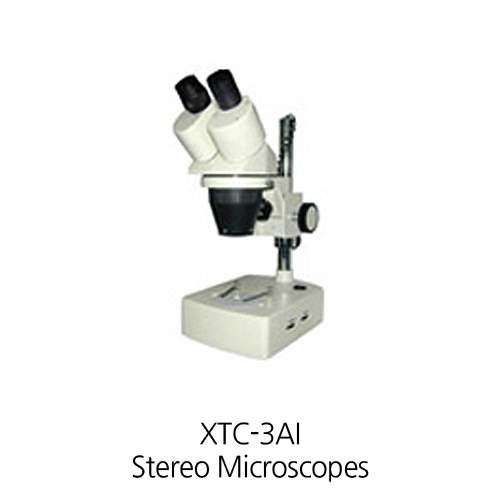

[XTC-3AI] Stereo Microscope
₩393,800
설명
Lab/Industrial Microscope
Stereo Microscope
XTC-3AI
XTC series stereo microscopes are a kind of positive image microscope; they have long working distance, clear and smooth image quality,wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.
Advantage
1) Eyepiece field is wide and clear.
2) Equipped with two pairs of objectives
3) Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and the left eyepiece tube diopter can be adjusted, interpupillary distance adjustable range from 55mm to 75mm.

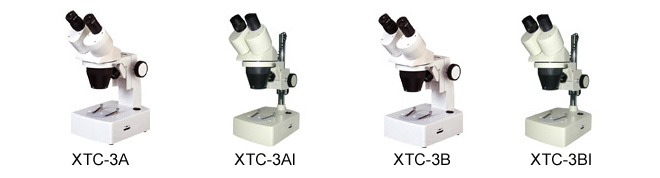

XTC-3 Series Specification
| Model Specification | XTC-3A | XTC-3AI | XTC-3B | XTC-3BI |
| Eyepiece | WF10X(Φ20mm) | |||
| Objective | 1X,3X | 2X, 4X | ||
| Total magnification | 10X,30X | 20X, 40X | ||
| Visual field | Φ20-Φ6.7 | Φ10-Φ5 | ||
| Working distance | 88mm | |||
| Vertical effective movement | 88mm<=h<265mm | 88mm<=h<130mm | ||
| Base size | 215X160X60mm | |||
| Illumination model | Reflected light source:12V,10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V,10W halogen lamp and adjustable brightness |
|||
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Divisional wide field eyepiece 10X(Φ20mm) 0.1mm/Div | 1111010 |
