[XTJ-5400] Trinocular Stereo Microscope

486,200

Quantity:

설명

Lab/Industrial Microscope

Trinocular Stereo Microscope

XTJ-5400

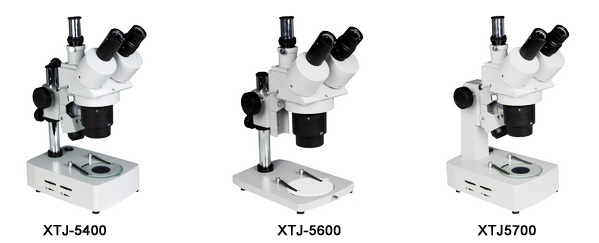

XTJ Series Stereo Microscope has some characteristics such as imaging in focus,wide-field and long working distance. It is suitable for various working condition. Widely uses to equipment for parts of electronic apparatus、school、scientific research academy and experiment of biological anatomy.

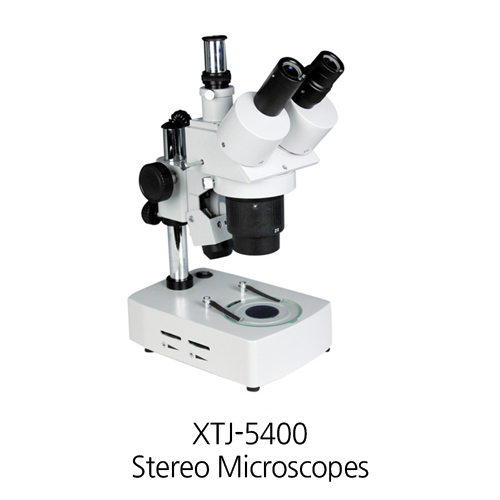

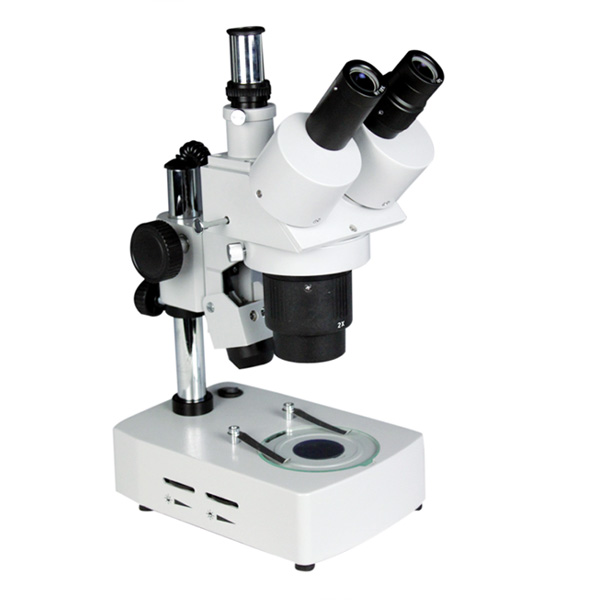

XTJ-5400 Trinocular Stereo Microscope

Specification

Optics System Inclination optical viewing system
Zoom Ratio 1X/2X, 1X/3X, 2X/4X
Eyepiece WF10X(ø20mm)
Working Distance (1X/2X)110mm,(1X/3X)102mm, (2X/4X)90mm
Viewing Field range ø23mm~ø5.7mm
Interpupillary Adjustable Rang 55mm – 75mm
Illumination Free Voltage 100V220V/12V10W halogen bulb with adjustable brightness

OPTIONAL ACCESSORIES

– Photo unit(only for trinocular)
– Color micro-TV unit(only for trinocular)
– Digital microphoto unit(only for trinocular)
– Widefield eyepiece:5×,12.5×,15×,20×,25×
– Super-widefield eyepiece:10×(ф23mm)
– Dark field condenser
– Accessory large objective(only for column type):0.5×,0.75×,1.5×,2×
– Mechanical stage.
