Medical Microscope

Table Mount Type Ophthalmology

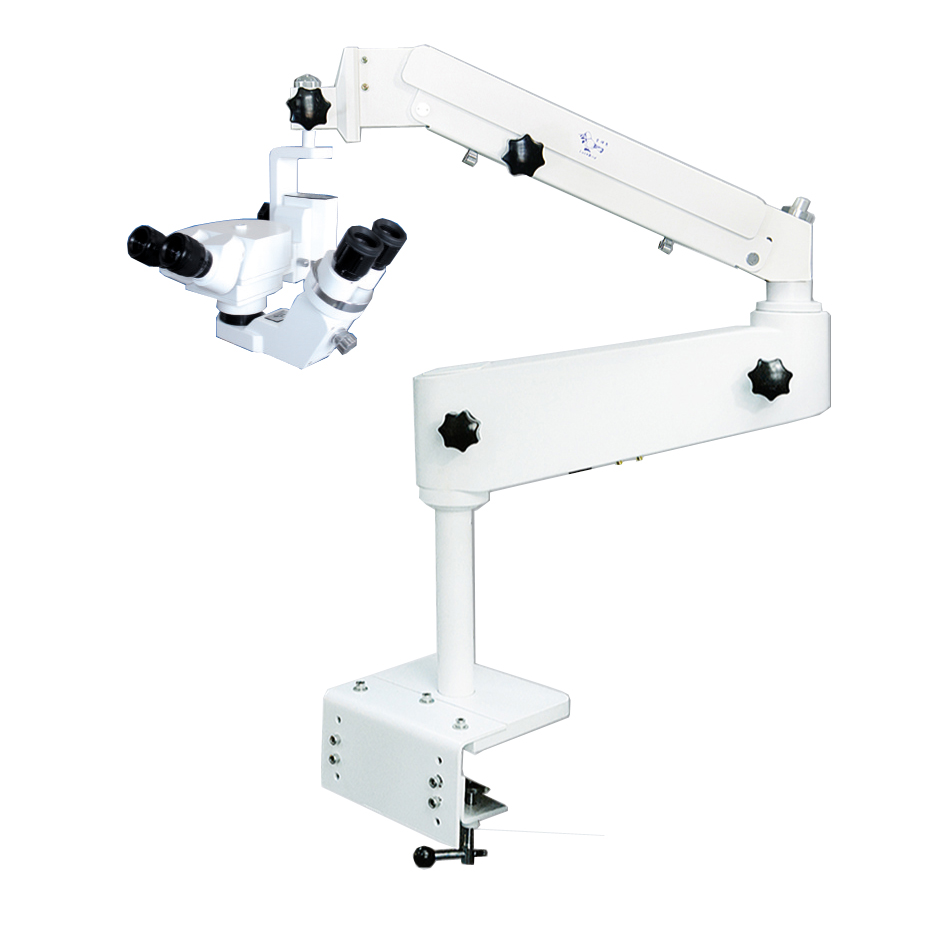

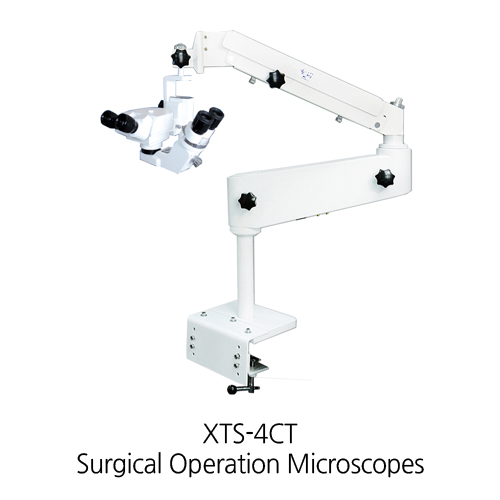

Surgical Operation Microscope

XTS-4CT

APPLICATION

XTS-4C microscope is a new-developed portable and popular instrument produced on the basis of 30 years development of the microscope technology of our company. It can be used widely in the field of ophthalmic operations and opthalmic experiments for medical hospitals enterprise and town in china. It is an esential medical instrument of ophthalmic micro-technology with excellent quality.

FEATURES

1) Widely visual angel, clear imageries
2) Coaxial cold light source bright and clear in depth.
3) Thand-mirror provided for two persons to operate togather
4) Slight adjusting of dostions by foot light and handy convenient for operation and carrying about.

MAJOR TECHNICAL INDEX

1) Mechanical performance:

A) Stand up-down range: Spring arm adjustment range:250mm; motorized up-down range:50mm
B) Motorized up-down speed: 2.5mm/s
C) Direction Adjusting Range Level:±180ºLeft And Right: ±90º
D) Longest Turning Radius of Cross-Arm:800mm

2) Electric Features

A) Maximum illumination of light source. Not Less Than 15000LX
B) Bromine and Tungsten Lamp:8V 50W
C) Voltage Of Power:110/220V; 50/60Hz
