[XTY-5A] Stereo Microscopes

301,400

Quantity:

설명

Lab/Industrial Microscope

Stereo Microscopes

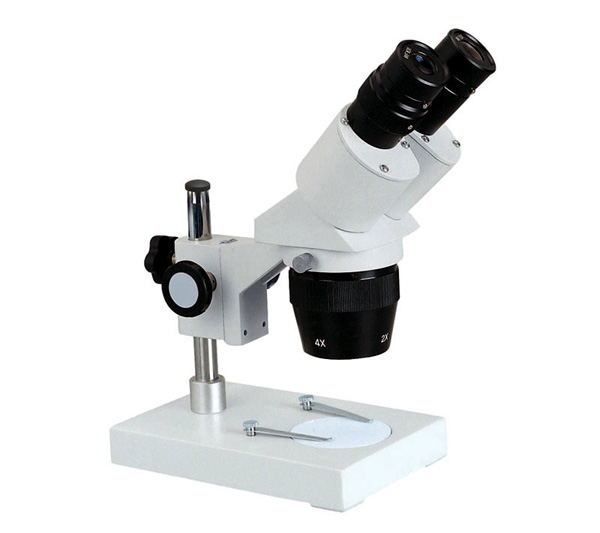

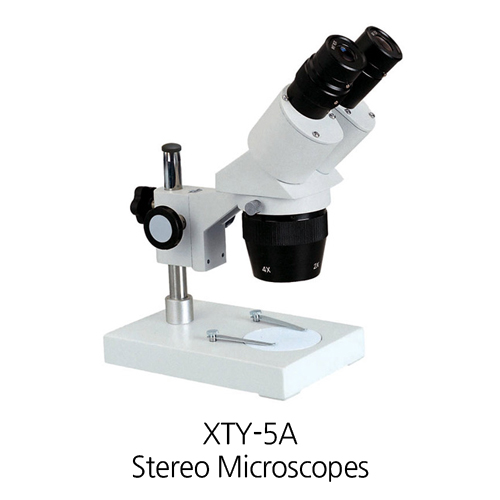

XTY-5A

Feature:

1.Sharp stereo erect image over a wide field of view.
2. 45°inclined and 360°rotatable binocular head with locked-in eyepiece.The left ocular-tube with diopter adjustment±5dp,The interpupillary distance is between 55-75mm. 3. Three kind of 90°rotatable objective for selection:1X/2X,1X/3X,2X/4X

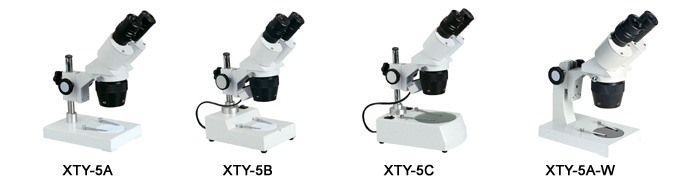

4. XTX-5A/5B/5C series supplied with pillar style stand:XTX-5A-W,XTX-5C-W series supplied with arm curved style stand.
5. CE approval.
6. Power supply 110V/60HZ or 220V/50HZ.
7. Each set packed in styrofoam box and in an inner box. Four sets in one outer carton.
8. A wide range of accessories for selection

Optional accessories:

1.Eyepiece:WF5X,WF10X,WF15X,WF20X
2.Φ95mm White/Black Working stage
3.Illumination:1.Incandescent lamp 12V10W  2.Halogen lamp 12V10W 3.High brightness LED lamp.
4.Digital Camera
5.Darkfield Attachment and Jewel Tweezer for XTX-5C.

SPECIFICATION

Model

Eyepiece

Objective

Working Stage

Illumination

XTX-5A

WF10X

Rotated
1X-2X
1X-3X
2X-4X

φ60  White/black

Natural illumination

XTX-5B

WF10X

φ60   White/black

Incident illumination

XTX-5C

WF10X

φ95  Frosted glass

Incident illumination & transmitted illumination

XTX-5A-W

WF10X

φ60  White/black

Natural illumination

XTX-5C-W

WF10X

φ95  Frosted glass

Incident illumination & transmitted illumination



OPTICAL DATA

Objective

Eyepiece

Working Distance

5X

10X

15X

20X

Magnification

Field of View

Magnification

Field of View

Magnification

Field of View

Magnification

Field of View

1X

5X

20.0mm

10X

20.0mm

15X

15.0mm

20X

10.0mm

76mm

2X

10X

10.0mm

20X

10.0mm

30X

7.5mm

40X

6.5mm

1X

5X

20.0mm

10X

20.0mm

15X

15.0mm

20X

10.0mm

76mm

3X

15X

7.0mm

30X

6.7mm

45X

5.0mm

60X

4.3mm

2X

10X

10.0mm

20X

10.0mm

30X

7.5mm

4X

6.5mm

76mm
