[YDJ V-3] Colposcope – 3 Step Magnifications (3X-12X) W/ 45 Dregee Observation Head and 150W Coaxial Halogen Lightsoure

2,796,000

Quantity:

설명

Medical Microscope

Colposcope – 3 Step Magnifications (3X-12X) W/ 45 Dregee Observation Head and 150W Coaxial Halogen Lightsoure

YDJ V-3



Colposcope: A lighted magnifying instrument used by a gynecologist to examine the tissues of the vagina and the cervix. The procedure is called colposcopy. The colposcope is used by doctors to perform a colposcopy examination. This examination examines the cervix and vagina, and is often used to detect cervical cancer and immunosupression such as HIV infections.
YDJ-V Series Colposcopes are precise optical instruments designed specially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. YDJ-V Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.

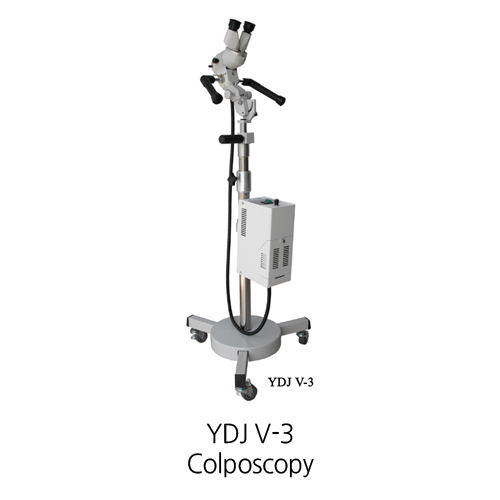

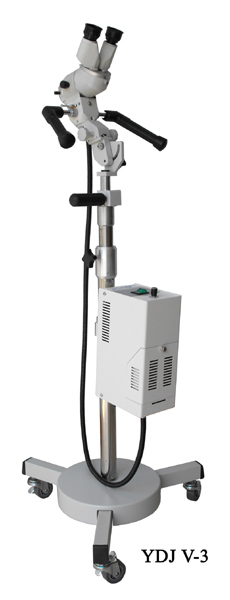

YDJ-V-3 Colposcope

Observation angle: 45°tilted (with 45°adapter)
Magnification of binocular: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine focusing distance: 20mm
Illumination: Coaxial illumination with 21V/150W halogen lamp cold light source fiber-optic cable, brightness adjustable, illumination >15,000lx
Filter: Green filter
Floor stand: Column height adjustable fitted on the 3-jaws round base with casters
Power supply: AC100V-AC240V
Optional accessories:
– Beamsplitter
– Video camera adapter, Demonstrator, Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200
– WK-73X10, WK-73X10H)
– SLR camera adapter
– Monitor (S22E360H, X22, H1766)
– Objective F=250mm

Warranty: Comes with 5 Years Manufacturer’s Warranty

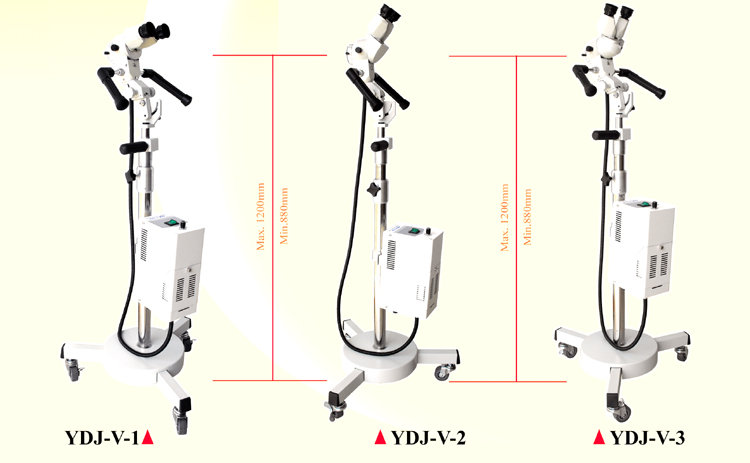

Table of Specification for YDJ-V Series Colposcope

Item

YDJ-V-1

YDJ-V-2

YDJ-V-3

Observation angle

Straight

45º tilted

45º tilted(with 45º adapter)

Magnification of binocular

6X

Interpupillary distance

50mm-80mm

Diopter

±5D

Magnification changer

3-step magnification change: 0.6X, 1X, 1.6X

Focal length of objective

F=200mm & F=300mm (M45x0.75mm)

Total magnification

3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field

60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Fine focusing distance

20mm

Illumination system

Coaxial illumination with 21V150W halogen lamp cold light source fiber-optic cable, brightness adjustable, illumination>15000lx

Filter

Green

Fiber-optic cable

Length: 1300mm

Floor stand

Column height adjustable fitted on the 3-jaws round base with casters

Optional accessories

Beamsplitter, Video camera adapter, Demonstrator, Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm



Optical characteristics for YDJ-V series colposcope

Focal length of objective

F=200mm

F=300mm

Magnification on handwheel

1.6X

1X

0.6X

1.6X

1X

0.6X

Total magnification

12X

7.5X

4.7X

8X

5X

3X

Linear field (mm)

15.8

25.3

40.6

23.6

37.9

60.8

Exit pupil diameter (mm)

1.04

1.66

1.04

1.66

Resolution (LP/mm)

67

44.5

29.7

47.2

31.5

23.6

Packining:

1 set/carton;
Dimesnion: 86X66X23CM;
Weight: 20kgs
