Medical Microscope

3-step Magnification (4.8X-16X) W/ 0-180 Dregee Inclinable Binocular and LED Coaxial Illumination

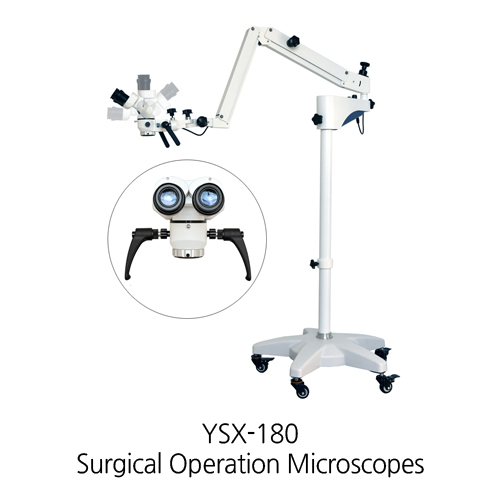

YSX-180

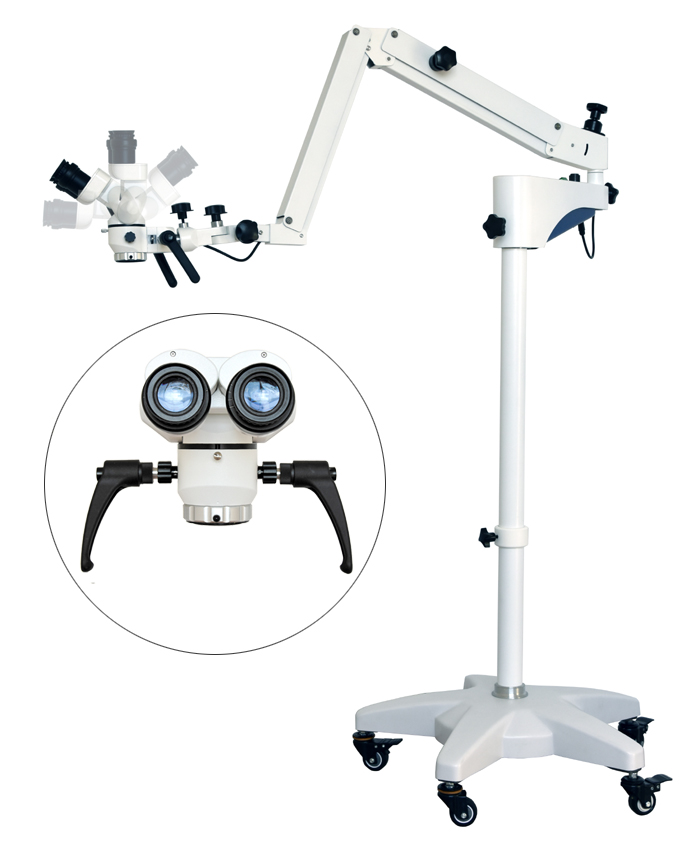

YSX180 Surgical Operation Microscope using LED light source for coaxial illumination, with 0-180° inclinable binocular and 3-step magnification changer, have different working distance and magnification. It is featured for flexible handling and easy operation. It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.

YSX-180 Surgical Operation Microscope:

Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V
Optional accessories:

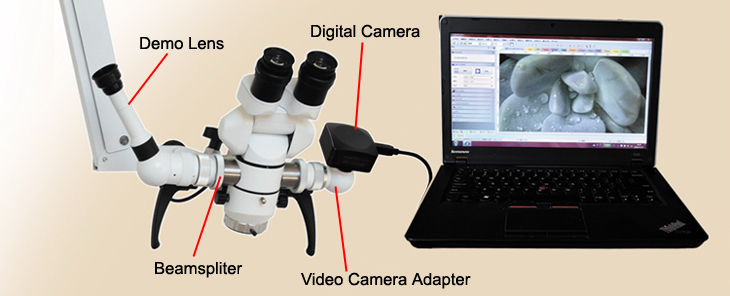

Beamsplitter, Video camera adapter, Demonstrator,
Camera (MDCCC200, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter,
Monitor (S22E360H, X22, H1766)
Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective
Table mount clamp, Wall mount bracket

Speicificationa:
