Medical Microscope

Colposcope – 5 Step Magnifications/Excellent Vision

YZH-5FRB



Colposcope: A lighted magnifying instrument used by a gynecologist to examine the tissues of the vagina and the cervix. The procedure is called colposcopy. The colposcope is used by doctors to perform a colposcopy examination. This examination examines the cervix and vagina, and is often used to detect cervical cancer and immunosupression such as HIV infections.

YZH Series Colposcopes adopts infinite microscopic principle, which provides the possibility of extending the function of the instrument. The stereo microscope incorporates converging binocular tubes to allow the natural stereoscopic vision. A 8°-10° convergent optical system gives the most comfortable vision to achieve binocular images

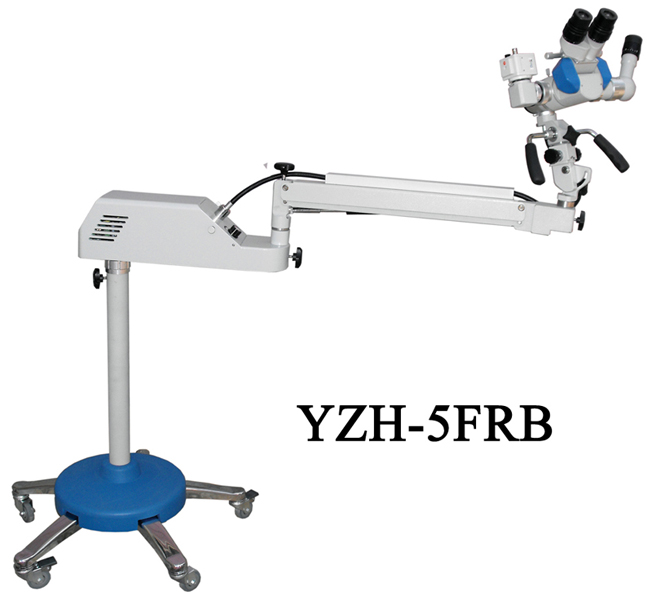

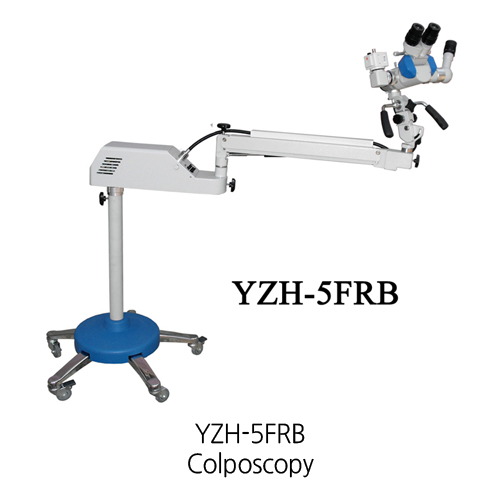

YZH-5FRB Colposcope

Observation angle: From -40°to 80°tilted
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.6X, 1X, 1.6X, 2.5X
Total Magnification: 1.9X, 2.8X, 4.8X, 7.6X, 12X
Linear field: 90mm, 60mm, 38mm, 24mm, 17mm
Fine focusing distance: 20mm
Beam splitter: 50:50 beamsplitter
TV adapter: C-mount 1/3-inch CCD attachable
Photo adapter: Optional
Demonstrator: Optional(total magnification 2.1X-16.4X)
Fine focus distance: 20mm
Balance arm: Counterweight adjustable and can be locked
Illumination: Coaxial illumination with 150W halogen cold light source, brightness adjustable
Light intensity: >15,000lux
Filter: Build-in green filter
Stand: Short column fitted on the round base with 5 jaws
Power supply: AC100V-240V/50-60Hz

Warranty: Comes with 5 Years Manufacturer’s Warranty

Table of specification for YZH Series Colposcope:

Item

YZH-5FT

YZH-5FTB

YZH-5FRB

Observation angle

45°Tilted

From -40°to 80°

Magnification of eyepiece

18.5X

12.5X

Focal length of objective

300mm

Working distance

285mm

Magnification changer

5-step magnification change: 0.4x, 0.6x, 1x, 1.6x, 2.5x

Total magnification

3X-17.7X

3.3X-20.8X

Beamsplitter

No

50:50 Beamsplitter

TV adapter

No

C-mount 1/3” CCD camera attachable

Demonstrator

No

Optional

Yes

Photo adapter

No

Optional

Fine focusing distance

20mm

Filter

Built in green filter

Balanced arm

Counterweight adjustable

Illumination system

21V150W halogen lamp, brightness adjustable

Fiber-optic cable

1300mm

Stand

Short column fitted on the round base with 5 jaws

Table of optical characteristics for YZH series colposcopes

Item

YZH-5FT & YZH-5FTB

YZH-5FRB

Focal length of objective

F=300mm

F=300mm

Division value on handwheel

0.4x

0.6x

1x

1.6x

2.5x

0.4x

0.6x

1x

1.6x

2.5x

Total magnification

3x

4.3x

7x

11.3x

17.7x

3.3x

5x

8.3x

13.3x

20.8x

Linear field (mm)

65

50

32

21

13

65

50

32

21

13

Resolution (lp/mm)

23.6

35.4

39.7

42

47.2

23.6

35.4

39.7

42

47.2
