Industry Upright Microscopes

정립 현미경

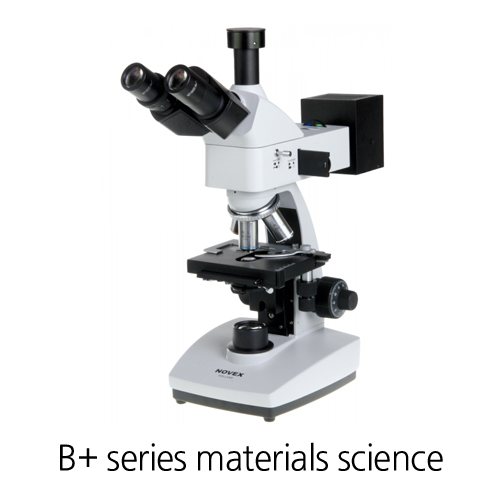

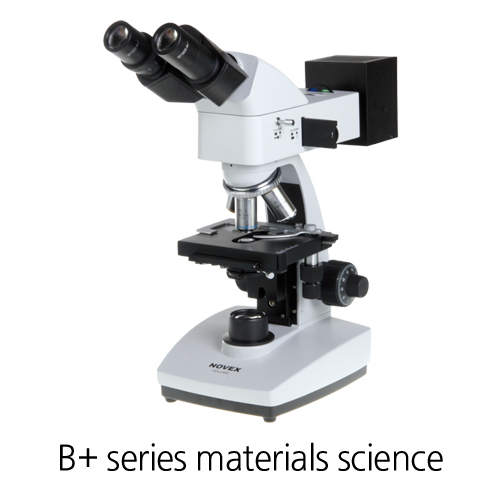

B+ series materials science



00

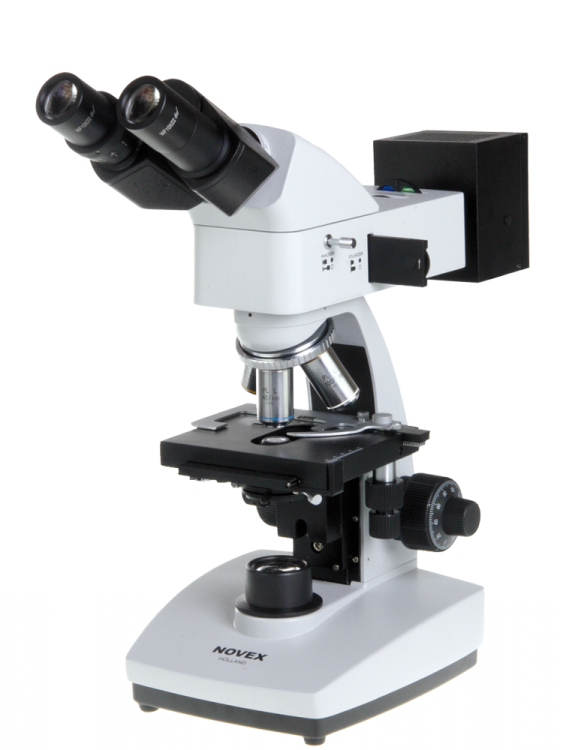

The well-equipped microscopes of the B+ series for material science are nearly identical to the biological B-serie microscopes but have a few differences like specific objectives without cover glass correction, both incident and translucent illumination, polarisation and compensation filters

Especially configured for observation of all kinds of materials such as metals, plastics, minerals, asbestos, glass, wood, glass, chemicals etc. These microscopes are extensively used in the research and quality assurance laboratories



01

Highlights

  • Binocular and trinocular models
  • WF10x/22 mm eyepieces
  • Reversed quintuple nosepiece
  • Plan M-IOS objectives
  • Polarizer and analyzer
  • Integrated mechanical stage
  • Reflected NeoLED illumination

Models

Specifications

EYEPIECES
Wide field WF10x/22mm eyepieces

HEAD
Binocular and trinocular Siedentopf models have 30° inclined tubes. Interpupillary distance of 48 to 75 mm and diopter adjustment on left eyepiece

NOSEPIECE
Revolving quintuple reversed nosepiece on ball-bearings

OBJECTIVES
Standard equipped with infinity corrected achromatic DIN plan M-IOS 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.70 IOS objectives. Optional plan M-IOS 80x/0.80 and 100x/0.85 DIN IOS objective are also available. All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated

FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 23 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control

STAGE
Integrated 125 x 135 mm stage with 75 x 35 mm X-Y mechanical stage. Double nonius 0.1mm

CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION

02

• Transmitted intensity adjustable NeoLED illumination with 110-240 V internal power supply /charger and 3 NiMH AA batteries or 20 W halogen illumination with internal power supply (110 V and 230 V versions available)

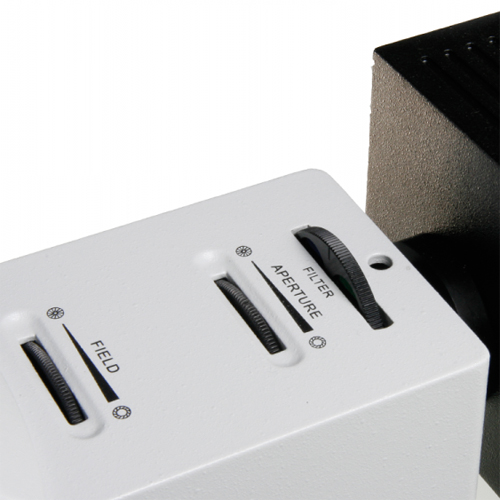

• Reflected intensity adjustable 3W NeoLED Köhler illumination with external power supply, push-pull type rotatable polarizer and push-pull analyzer, built-in condenser with iris diaphragm and field iris diaphragm. Integrated rotating filter disc with green, blue, yellow and white filters

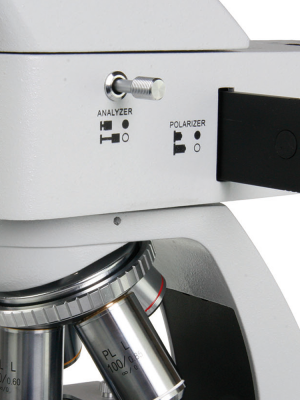

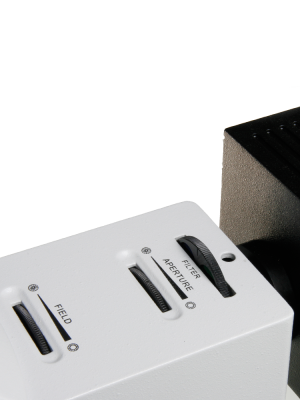

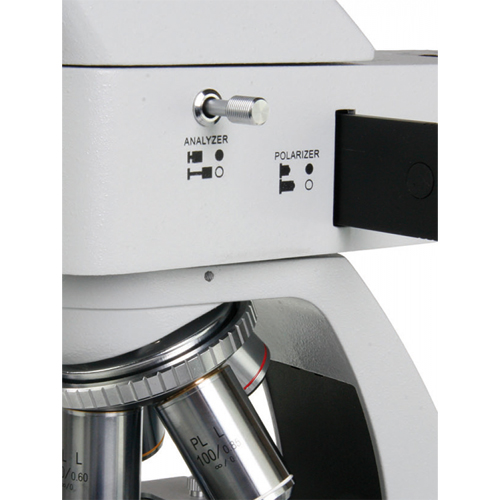

(Photo: left push-pull polarizer and analyzer, right reflected illumination)

03





PACKAGING
Supplied with power cord, dust cover, a spare fuse and user manual. Models with a 20 W halogen illumination are supplied with a spare bulb and a blue filter. All packed in a polystyrene box

Accessories

86.527
Plan PL-M 5x/0.10 infinity corrected IOS objective. Long working distance 26,1 mm
86.529
Plan PL-M 10x/0.25 infinity corrected IOS objective. Long working distance 20,2 mm
86.531
Plan PL-M 20x/0.40 infinity corrected IOS objective. Long working distance 8,8 mm
86.535
Plan PL-M 50x/0,70 infinity corrected IOS objective. Long working distance 3,68 mm
86.538
Plan PL-M 80x/0.80 infinity corrected IOS objective. Long working distance 1.25 mm
86.539
Plan PL-M 100x/0.85 infinity corrected IOS objective Long working distance 0,4 mm
86.172
Dark field stop to be placed in filter holder. Suitable for objectives from 10x up to S40x
86.820
SLR camera adapter with 2.5x and 4x magnification lenses
86.889
Spare halogen bulb 6 Volt 20 Watt
86.101
Spare 1W LED module
AE.1110
Stage 76 x 26 mm micrometer slide, 1 mm divided in 100 parts, 10 µm per division
AE.1111
Stage micrometer 2 mm divided in 200 parts, 10 µm per division
AE.5130
Universal Ø 23.2 mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. Needs T2 adapter
AE.5040
T2 ring for Canon EOS SLR digital camera
AE.5025
T2 ring for Nikon D SLR digital camera
AE.5202
Blue filter, 32 mm diameter
AE.5203
Yellow filter, 32 mm diameter
AE.5204
Neutral grey filter, 32 mm diameter
AE.5205
Green filter, 32 mm diameter
AE.5207
Blue filter plexiglass, 32 mm diameter
AE.5227
Glass fuses 1A 250V, 10 pieces
AE.5365
Eyecup for Ø 28 mm eyepieces. Not foldable
DC.1320
C-mount adapter with 1x objective for standard Ø 23.2 mm tubes
DC.1324
C-mount adapter with 0.5x objective for standard Ø 23.2 mm tubes and 1/2” camera sensor
DC.1326
C-mount adapter with 0.35x objective for standard Ø 23.2 mm tubes and 1/3” camera sensor
PB.5155
Microscope slides 76 x 26 mm, ground edges, 50 pieces
PB.5165
Cover glasses 18 x 18 mm, 0,13-0,17 mm, 100 pieces
PB.5168
Cover glasses 22 x 22 mm, 0,13-0,17 mm, 100 pieces
PB.5245
Lens cleaning paper, 100 sheets per pack
PB.5255
Immersion oil, 25 ml. Refraction index n = 1,482
PB.5274
Iso propyl alcohol 99%, 200 ml
PB.5275
Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs
86.575
Wide field eyepiece HWF 10x/20 mm
86.573
Wide field eyepiece WF 15x/12 mm
80.882
Wide field eyepiece WF 20x/10 mm
86.851
Polarizing attachment B- and B-plus series with halogen illumination
86.852
Polarizing attachment for B- and B-plus series with LED illumination
86.860
Köhler diaphragm with centring, to be mounted on lamp house . Only suitable for models with halogen illumination
