설명
Lab/Industrial Microscope

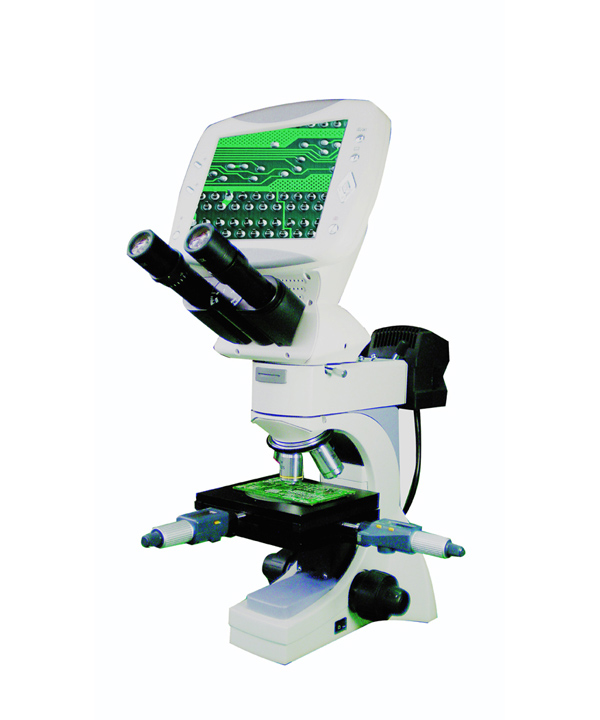

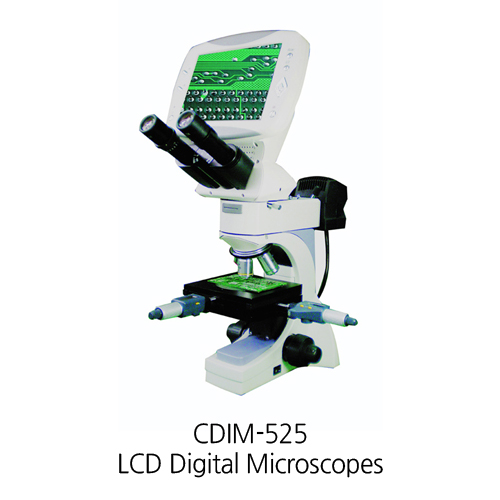

LCD Digital Imaging Metallurgical Measruing Instrument
CDIM-525
CDIM-525 digital imaging measuring measuring instrument integrated snapshot,video,quick storage and measurement,Microscope can be used both traditional eyepieces and an LCD screen for convenient and comfortable viewing, It’s not only suitable for the PCB board, LCD display,metal structure observation and inspection,but also for the components of he circuit board under two-dimensional measurement,deeply improving productivity.
Specification
Digital Parts |
Pixel | 5 Mega | |
| Maximal Resolution | 2560X1920 | ||
| Video Resolution | 640X480 | ||
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | ||
| Video Output | AV Output (NTSC/PAL) | ||
| Data Output | USB2.0 | ||
| Menu Language | Chinese / English | ||
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | ||
| Scene Mode | Standard / Softness / Vivid | ||
| Exposure Mode | Auto Exposure | ||
| Date Mode | Year, Month, Day, Hour, Minute | ||
| Optical Parts | Eyepiece | Wide Field Eyepiece WF 10&time;18 | |
| Objective | Infinity Plan Achromatic | 4×0.1/∞/-WD25.4mm | |
| 10×0.25/∞/-WD11.0mm | |||
| 20×0.40/∞/-WD6.0mm | |||
| 40×0.6/∞/-WD3.7mm | |||
| Nosepiece | Quintuple Nosepiece | ||
| Stage | Double LAYERS Mechanical Stage 150mm×40mm/75mm×2mm | ||
| Focusing System | Coaxial Fime&Coarse Adjustment | ||
| Filter | Blue,Green,Yellow&Ground Glass | ||
| X-Y Axis Moving Sruvey Range | 30×30mm | ||
| Minimum Measruing Reading | 0.001mm | ||
| Measurement Accuracy | <5|ìm | ||
