설명
Lab/Industrial Microscope

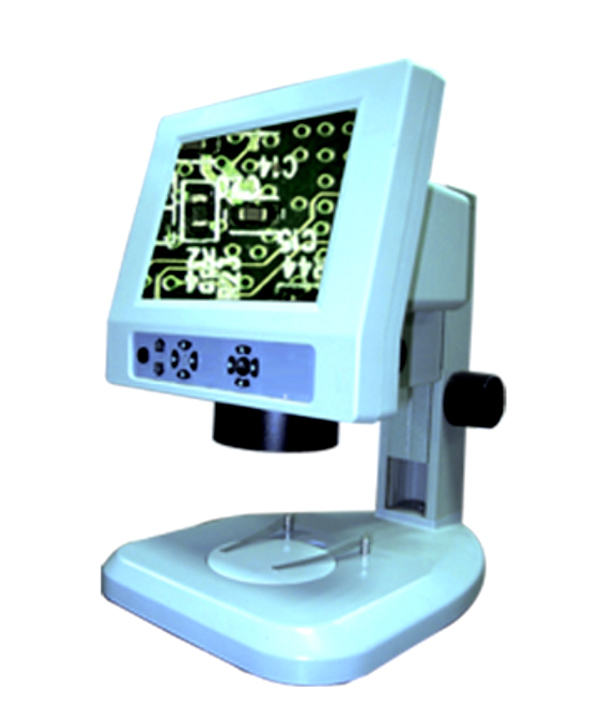

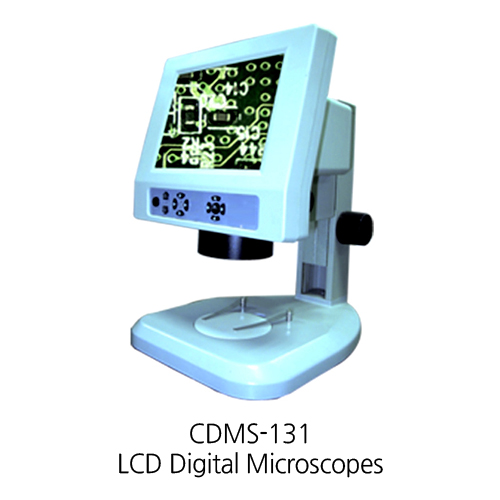

LCD Digital Industiral Microscope
CDMS-131
CDMS-131 LCD microscope has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging. Options for accurate 9x-240x magnification range.This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It features high resolution of LCD display to preview genuine imagings .This unit integrates magnification, imaging, display and built-in LED illumination functions. It can be conveniently applied to testing and inspecting in product assembly, research and teaching fields. Based on 2D observation, 3D angle attachment is added to obtain 3D multi-angle observation, which makes inspection easy and comfortable.
Specifications
| Model | CDMS-131 | |
| Digital Part | Resolution | 525 lines, 60 Frames/sec |
| Image Sensor | 1/3″ CCD | |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800 X 600 | |
| Voltage Input | 100V-240V 60HZ/50HZ | |
| Optical Part | Zoom Range | 0.7×-4.5 |
| Zooming Ratio | 1：6.5 | |
| Magnification | 19×-120× | |
| Visual Field | 6.8×8.9-1.0×1.3mm | |
| Working Distance | 88mm | |
| Optional Part | Objective | 0.5X/0.75X/ 1X (standard) /1.5X/2X |
| Base Light | Built-in LED Base Illumination: 45pcs LED Bulbs，5W | |
| Longer Stand and Base: | Using 0.5X Objective Lens ,Working Distance is 175mm (Max) | |
