[CDMS-851] Compound LCD Digital Inverted Fluorescence Microscope

₩12,574,000

Quantity:

설명

Lab/Industrial Microscope

Compound LCD Digital Inverted Fluorescence Microscope

CDMS-851

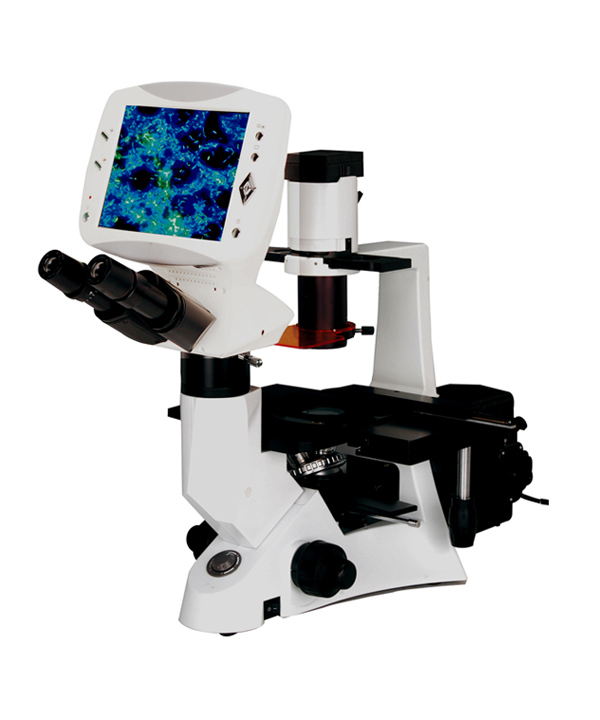

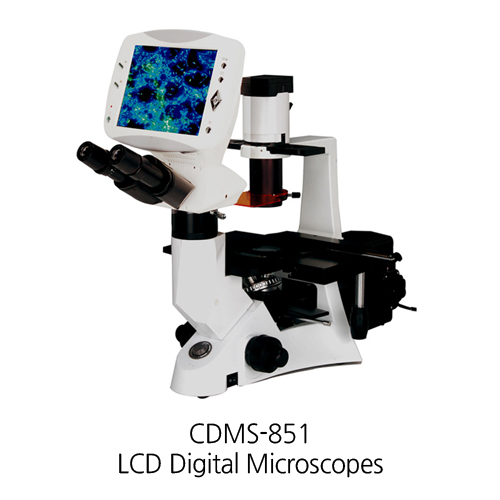

CDMS-851 compound digital inverted fluorescence microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working.It can be use both eyepieces and LCD Screen for convenient and comfortable viewing by individuals and share with groups alike .It is also feature the latest 5 MEGA pixels digital imaging microscopy techniques for quick and easy snapshots or videos.
Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue It widely used in venereal disease examination and immuneless diagnosis

More stable power supply, digital display and timer

CDMS-851 Compound Digital Inverted Fluorescence Microscope feature and parameter

Digital Parts Pixel 500 Mega
Photo Resolution 2560X1920-1600X1200
Video Resolution 640X480
Sensor Size 1/2.5 Inches
LCD Screen 8 Inches TFT Screen, Resolution is 800X 600
Video Output AV Output (NTSC/PAL)
Data Output USB2.0
Menu Language Chinese / English
Storage SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene Mode Standard / Softness / Vivid
Exposure Mode Auto Exposure
Date Mode Year, Month, Day, Hour, Minute
Optical Parts Viewing Head Compensation Free Binocular Head Inclined at 30° ,Interpupillary Distance 48-75mm
Eyepiece High-point ,Extra Wide Field Eyepiece EW10×/22
Nosepiece Quintuple
Objective LWD Infinite Plan Objective 4×/ 0.1, WD 18 mm
40×/ 0.6, WD 2.6mm
Infinite Plan Phase Objective PH 10×/ 0.25, WD 10 mm
PH 20×/ 0.4, WD 5.1mm
Condenser ELWD Condenser NA 0.3, LWD 72 mm
Focusing System Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7 mm Per Rotation, Fine Stroke 0.2mm Per Rotation
Stage Plain Stage 160×250 mm
Glass Insert
Auxiliary Stages70×180mm
Illumination Halogen Lamp6V/ 30W
Filter Blue ,Green and Ground Glass φ45mm)
Phase Annulus
Reflected Light Source Excitation Dichroic Mirror Barrier Filter
Blue excitation BP460×490 DM500 BA520
Green excitation BP480×550 DM570 BA590
Lamp 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
Protection Barrier Barrier to Resist the Ultraviolet Light
Power Supplier Power Supplier NFP-1,220V/ 110V Inter Changeable ,Digital Display
Immersion Oil Fluorescent Free Oil
Centering Plate
Optional Parts Objective LWD Infinite Plan Objective 10×/ 0.25, WD 10mm
20×/ 0.4, WD 5.1mm
Infinite Plan Phase Objective PH 40×/ 0.6, WD 0.35mm
Infinite Plan Fluorescent Objective 4×/ 0.13, WD 16.3mm
10×/ 0.3, WD 12.4mm
20×/ 0.4, WD 1.5mm
40×/ 0.6, WD 2.2mm
Stage Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm
Terasaki Holder
φ38mm Petri Dish Holder
φ54mm Slide Glass Holder
Reflected Light Source Excitation Dichroic Mirror Barrier Filter
Blue one excitation BP460×495 DM505 BA510-550
Ultraviolet excitation BP330×385 DM400 BA420
Violet excitation BP400×410 DM455 BA455
Neutral ND25/ ND6 Filter
Centering Telescope

Epi-fluorescent Attachment

Blue excitation BP460×490 DM500 BA520
Green excitation BP4800×550 DM570 BA590
Lamp 100W HBO Ultra Hi-voltage Spherical Mercury Lamp
Protection Barrier Barrier to Resist the Ultraviolet Light
Power Supplier Power Supplier NFP-1,220V/ 110V Inter Changeable ,Digital Display
Immersion Oil Fluorescent Free Oil
Centering Plate
Optional Parts Objective LWD Infinite Plan Objective 10×/ 0.25, WD 10mm
20×/ 0.4, WD 5.1mm
Infinite Plan Phase Objective PH 40×/ 0.6, WD 0.35mm
Infinite Plan Fluorescent Objective 4×/ 0.13, WD 16.3mm
10×/ 0.3, WD 12.4mm
20×/ 0.4, WD 1.5mm
40×/ 0.6, WD 2.2mm
Stage Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm
