설명
Lab/Industrial Microscope

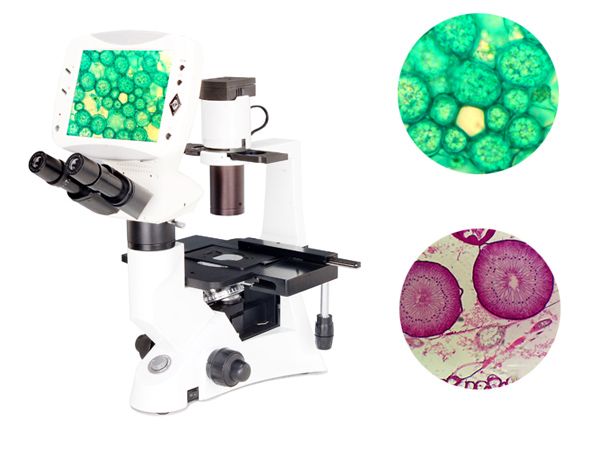

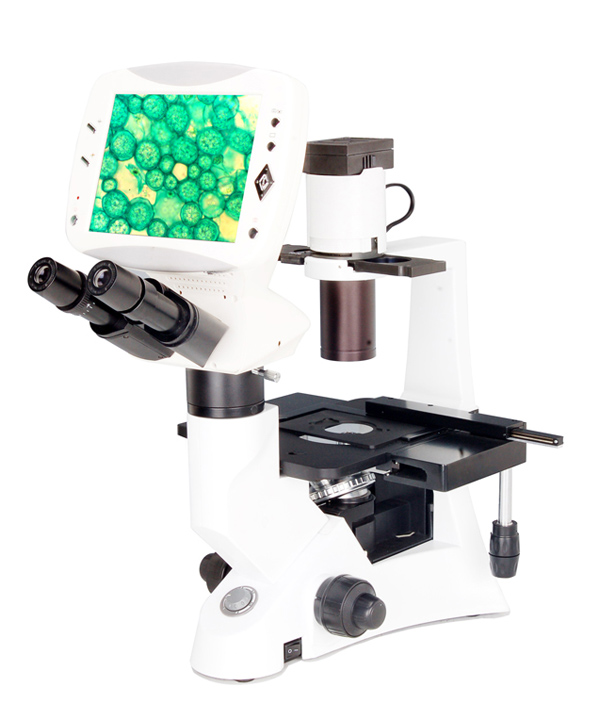

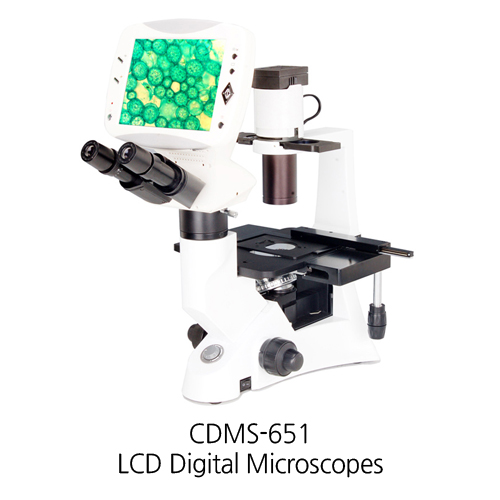

LCD Digital Inverted Biological Microscope
CDMS-651
CDMS-651 Digital LCD Inverted Biological Microscope has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging.Our LCD Microscope can be use both traditional eyepieces and an 8inches LCD Screen for easy and comfortable viewing for yourself and to share with others .This patented microscope It is not only features high resolution of LCD display to reverting genuine photo and video ,but also features for quick and easy snapshots or short videos.This unit integrates magnification,digital enlarge, imaging, display, capture photo and video, sarchiving and printing for easy exchange, store captured photos and clips on the optional SD card or transfer them to your personal computer via included USB cable. All of which achieve a more convenient and effective breakthrough.
The LWD infinitive plan objective making viewing field flatter and brighter. With the contrast sharper, living cell observing is easie .Available to observe low contrast or transparent specimens used by pre-centerable phase annulus.Convenient and Special for Viewing Incubating Cell Tissue.
CDMS-651 Compound Digital Inverted Biological Microscope Feature and Parameter
| Digital Parts | Pixel | 5 Mega | |
| Photo Resolution | 2560X1920-1600X1200 | ||
| Video Resolution | 640X480 | ||
| Sensor Size | 1/2.5 Inches | ||
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 | ||
| Video Output | AV Output (NTSC/PAL) | ||
| Data Output | USB2.0 | ||
| Menu Language | Chinese / English | ||
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | ||
| Scene Mode | Standard / Softness / Vivid | ||
| Exposure Mode | Auto Exposure | ||
| Optical Parts | Viewing Head | Compensation Free Binocular Head, Inclined at 30×, Interpupillary Distance 48 -75mm | |
| Eyepiece | High-point, Extra Wide Field Eyepiece EW10× 22 | ||
| Objective | LWD Infinite Plan Objective | 4× 0.1,WD 18mm | |
| 40× 0.6,WD 2.6mm | |||
| Infinite Plan Phase Objective | PH10× 0.25,WD 10 mm | ||
| PH20× 0.4,WD 5.1mm | |||
| Nosepiece | Quintuple Nosepiece | ||
| Condenser | ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) | ||
| Annulus | 10×20×40×Phase Annulus Plate | ||
| Stage |
Plain Stage 160×50mm, | ||
| Glass Insert | |||
| Auxiliary Stages 70×80mm | |||
| Focusing | Coaxial Coarse and Fine Adjustment, Vertical Objective Movement×Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation | ||
| Illumination | Halogen Lamp 6V/ 30W | ||
| Filter | Diameter 45mm, Blue×Green and Ground Glass | ||
| Optional Parts | Objective | LWD Infinite Plan Objective | 10× 0.25, WD 10mm |
| 20× 0.4, WD 5.1mm | |||
| Infinite Plan Phase Objective | PH40× 0.65, WD 0.35mm | ||
| Centering | Centering Telescope (φMM) | ||
| Phase Annulus | 10×20×40×Phase Annulus Plate | ||
| Stage | Attachable Mechanical Stage, X-Y Coaxial Control×Moving Rang 120×8mm | ||
| Terasaki Holder | |||
| φ8mm Petri Dish Holder | |||
Real-time photographed of biological cells
Illumination
Halogen Lamp 6V/ 30W
Filter
Diameter 45mm, Blue×Green and Ground Glass
Optional Parts
Objective
LWD Infinite Plan Objective
10* 0.25, WD 10mm
20* 0.4, WD 5.1mm
Infinite Plan Phase Objective
PH40× 0.65, WD 0.35mm
Centering , Centering Telescope (φMM)
Phase Annulus
10*20*40 Phase Annulus Plate
Stage
Attachable Mechanical Stage, X-Y Coaxial Control×Moving Rang 120×8mm
Terasaki Holder
φ8mm Petri Dish Holder
