Lab/Industrial Microscope

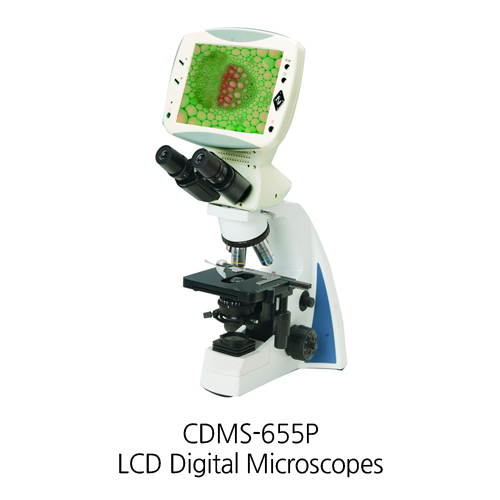

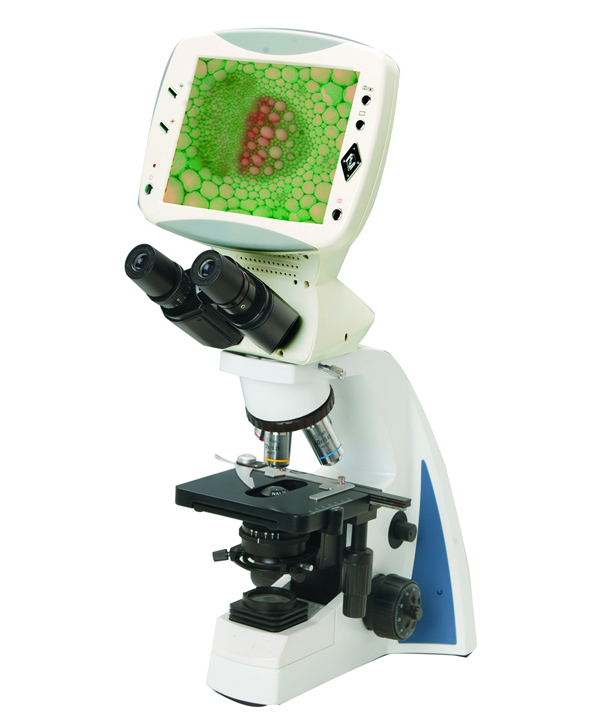

LCD Digital Biological Microscope
CDMS-655P
CDMS-655 Seriescompound digital LCD biological microscope renovated the traditional way of
microscopic observation and thoroughly resolves the fatigue for a long time working.It can be
use both eyepieces and LCD Screen for convenient and comfortable viewing by individuals
and share with groups alike .It is also feature the latest 5 MEGA pixels digital imaging
microscopy techniques for quick and easy snapshots or videos .
The patent microscope is an ideal tool for medical and sanitary establishments, academic
demonstration and research,laboratories,institutes, colleges and universities applications

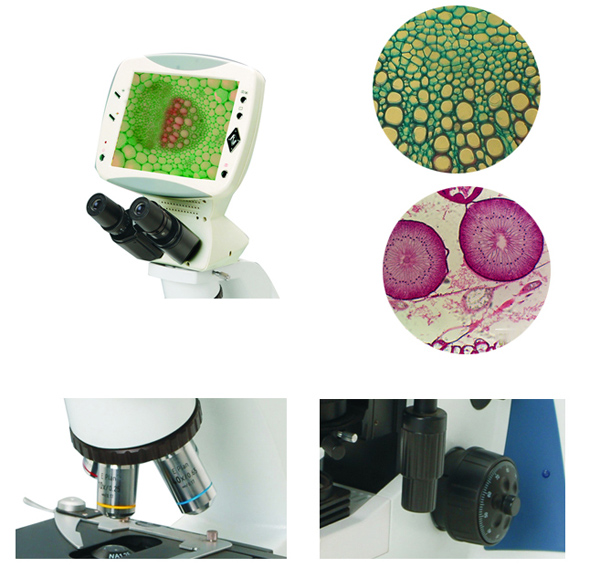

Real-time photographed of biological cells
CDMS-655 Series Compound Digital LCD Biological Microscope Feature and Parameter
Digital Parts
| Pixel | 500 Mega |
| Photo Resolution | 2560X1920-1600X1200 |
| Video Resolution | 640X480 |
| Sensor Size | 1/2.5 Inches |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 |
| Video Output | AV Output (NTSC/PAL) |
| Data Output | USB2.0 |
| Menu Language | Chinese / English |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) |
| Scene Mode | Standard / Softness / Vivid |
| Exposure Mode | Auto Exposure |
Optical Parts
| Model | CDMS-655P |
| Viewing Head | Compensation Free Binocular Head, Inclined 30° Interpupillary Distance 55 -75mm |
| Eyepiece | Wide Field WF10X/20 |
| Objective |
Infinity Plan Achromatic 4X/0.10,10X/0.25,40X/0.65(Spring),100X/1.25(Spring,Oil) |
| Nosepiece | Quadruple |
| Focusing System | Coaxial Coarse/Fine Focus System with Tension Adjustable, Limit Stopper ,Range 24mm, Fine Division 0.002mm |
| Illumination | 6V,20W Halogen Lamp, Brightness Adjustable |
| Stage | Double Layers Mechanical Stage 210mmX140mm |
| Condenser | NA1.25 Abbe Condenser with Iris Diaphragm & Filter, Rack & Pinion Adjustment |
| Collector | Halogen Illumination(Compose with Field Diaphragm) |
