Microscope Digital Camera

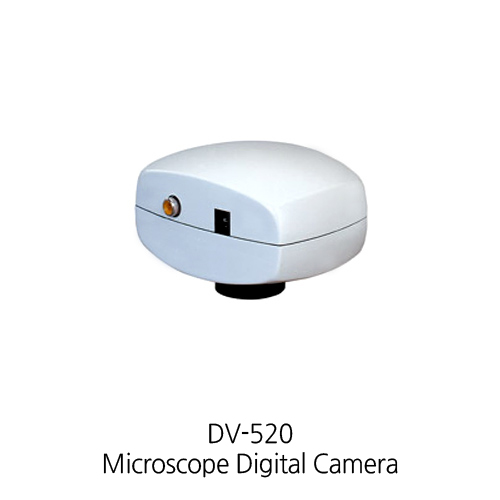

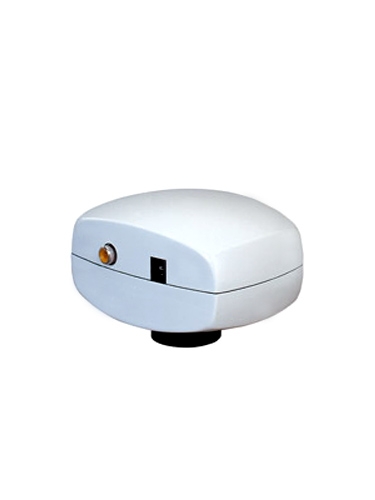

DV-520 Digital & Video Cameras for Microscopes

DV-520



DV series Digital & Video cameras are mainly for optical microscope, equipped with color sensor, they can show dynamic image real time. They are use with optical microscope can be broadly applied in teaching demo, medical consultation and image analysis.

Specification

– One key auto or manaual white balance
– USB2.0 output
– System requirement: Windows2000 SP4/Windows XP(SP2 or above)/Windows Vista/Win7/Win8
– USB cord, drive CD
– Standard C-mount coonection. It can work with all brands microscope with C-mount adaper.

Digital and Video output DV-1A Horizontal resolution:380 TV lines,1Vp-p/75Ω
DV-1B Horizontal resolution: 520 TV lines,1Vp-p/75Ω
Sensor 1/3″,CCD
USB2.0 output Max resolution: 720×576(PAL),720×480(NTSC) White balance:Auto.
Accessories Video cable, Power adapter, USB cable, Driver CD, User guide.
Biological microscope equipped with Changeless CCD Adapter
Metallography or inverted microscope equipped with Changeless CCD Adapter.
System requirement Windows2000/XP

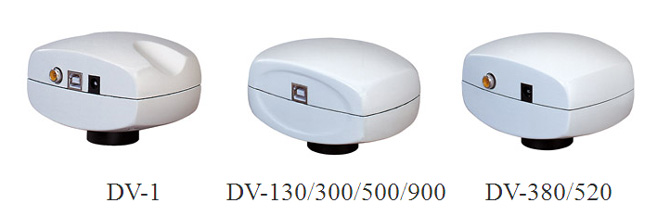

Digital output DV-130 1/2″ CMOS sensor, 1.3 Megapixel, Max resolution: 1280×1024 White balance: Auto/ Manual System requirement:Windows2000/XP
DV-300 1/2″ CMOS sensor,?3.1 Megapixel, Max resolution: 2048×1536 White balance: Auto/ Manua System requirement:Windows2000/XP/VISTA/WIN7
DV-500 1/2.5″ CMOS sensor, 5.0 Megapixel, Max resolution: 2592×944 White balance: Auto/ Manual ystem requirement:Windows2000/XP/VISTA/WIN7
DV-900 1/2.3″ CMOS sensor,9.1 Megapixel, Max resolution: 3488×2616 White balance: Auto/ Manual System requirement:Windows2000/XP/VISTA/WIN7
Accessories USB cable, Driver CD, User guide.
Biological microscope equipped with Changeless CCD Adapter.
Metallography or inverted microscope equipped with Changeless CCD Adapter
Video output DV-380 Horizontal resolution:380 TV lines,1Vp-p/75Ω
DV-520 Horizontal resolution: 520 TV lines,1Vp-p/75Ω
Sensor 1/3″ CCD
Accessories Video cable, Power adapter, User guide.
Biological microscope equipped with Changeless CCD Adapter
Metallography or inverted microscope equipped with Changeless CCD Adapter
