설명
Lab/Industrial Microscope

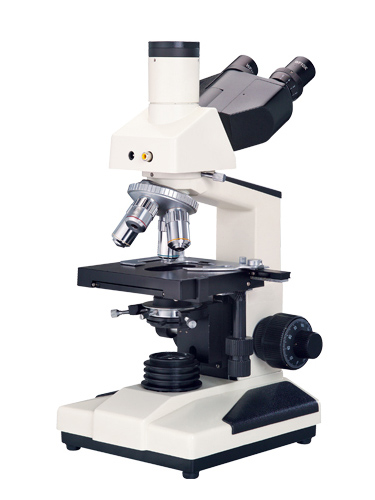

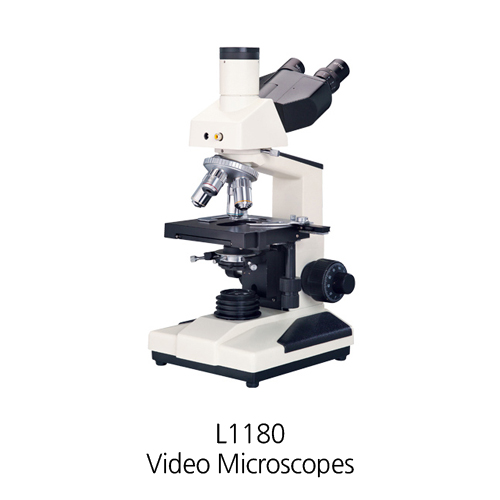

Biological Microscope W/ Video Output
L1180
L1180 video biological microscopes are equipped with achromatic objectives, wide field eyepieces and video trinocular. It provide clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine, agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Advantage
1) With wide field eyepieces and achromatic objectives, the field of view is widely and clear
2) Built-in color CMOS or CCD sensor and video output
3) Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm
4) 6V 20W halogen lamp with brightness control
Specification
| Model | L1180 |
| Eyepiece | WF10X(Φ18mm) |
| Objective | Achromatic 4X/0.10 |
| Achromatic 10X/0.25 | |
| Achromatic 40X/0.65(Spring) | |
| Achromatic 100X/1.25(Spring, oil) | |
| Video trinocular | Built-in clear color 1/3”CMOS sensor, horizontal resolution:380TV lines White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional).Power supply adapter:9V DC |
| Focus system | Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm |
| Nosepiece | Quadruple(Frontward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm) |
| Abbe condenser | N.A.1.25 Rack & pinion adjustable |
| Filter | Blue filter |
| Frosted filter | |
| Collector | For halogen lamp |
| Light source | 6V 20W Halogen lamp ,adjustable brightness |
| Attachment | Video cable, length:1.8M |
Optional accessories
| Name | Sort/Technique parameter | NO. |
| Eyepiece | Wide field WF16X(Φ11mm) | 1051016 |
| Dividing 10X(Φ18mm) 0.1mm/Div | 1021010 | |
| Objective | Semi-plan achromatic SP 4X/0.10 | 2030104 |
| Semi-plan achromatic SP 10X/0.25 | 2030110 | |
| Semi-plan achromatic SP 20X/0.40(Spring) | 2030120 | |
| Semi-plan achromatic SP 40X/0.65(Spring) | 2030140 | |
| Semi-plan achromatic SP 100X/1.25(Spring, oil) | 2030111 | |
| Nosepiece | Quintuple(Frontward ball bearing inner locating) | 032001 |
| Filter | Green filter | 115002 |
| Yellow filter | 115003 |
