Lab/Industrial Microscope

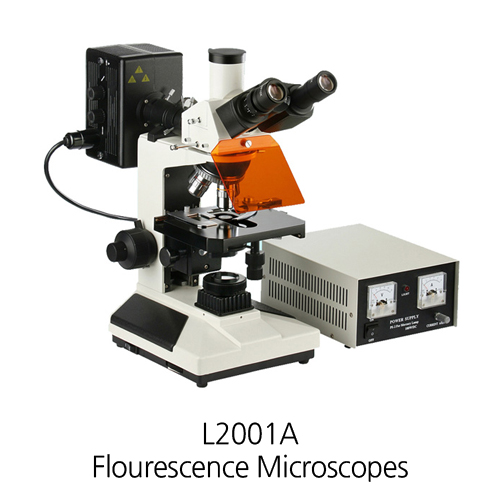

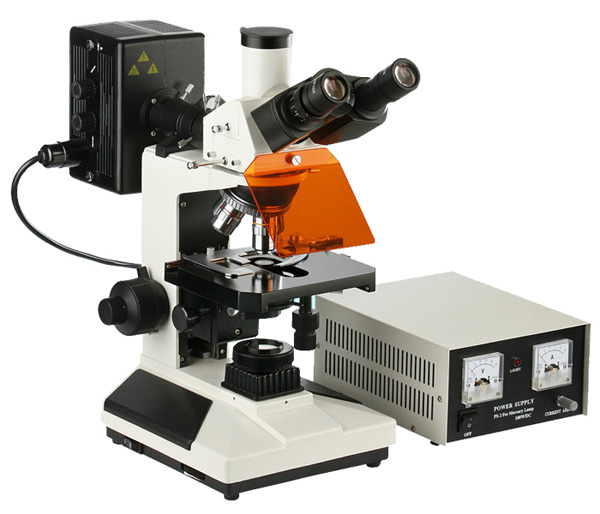

Epi-fluorescent Microscope W/ 25/4X Camera Lens

L2001A





L2001 series reflected fluorescence microscopes are used for fluorescence microscopy and transmitted bright field observation. They are the ideal instruments in biology, cytology, oncology, geneticist, immunology etc. It is the ideal instrument n biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Features

1) With wide field eyepieces, plan achromatic objectives and fluorescence objectives, the field of view is widely and clear.
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
3) 6V 20W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit.

Specification

Model L2001A
Eyepiece Wide field WF10X(Φ20mm)
Objective Plan achromatic objectives PL 4X/0.10
Plan achromatic objectives PL 10X/0.25
Plan achromatic objectives PL 40X/0.65(Spring)
Plan achromatic objectives PL 100X/1.25(Spring, oil)
Fluorescence objectives FL 25X/0.65
Fluorescence objectives FL 40X/1.00 (Spring, Glycerin)
Eyepiece tube Trinocular (Inclination of 30°)
Focus system Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece Quadruple(Backward ball bearing inner locating)
Stage Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)
Abbe condenser N.A.1.25 Rack & pinion adjustable
Filter Blue filter
Frosted filter
Collector For halogen lamp
Light source 6V 20W Halogen lamp with brightness control
Reflected fluorescence system Mercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:420~485nm
Fluorescence filter system G exciton wavelength:460~550nm


Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field WF16X(Φ11mm) 1051016
Dividing 10X(Φ20mm),0.1mm/Div 1120010
Objective Plan achromatic objectives PL 5X/0.12 2040105
Fluorescence objectives FL 100X/1.25 (Spring, Glycerin) 2600111
Filter Green filter 115002
Yellow filter 115003
Fluorescence power supply 100W fluorescence power supply(Wide voltage range and constant power and calculagraph) 100003
Reflected fluorescence system Fluorescence filter system UV exciton wavelength:330~400nm 115103
Fluorescence filter system V exciton wavelength:395~415nm 115104
Phase contrast unit Eyepiece Centering telescope 110001
Objectives Phase contrast plan achromatic 10X/0.25 PHP 2420110
Phase contrast plan achromatic 20X/0.40 PHP 2420120
Phase contrast plan achromatic 40X/0.65 PHP(Spring) 2420140
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) 2420111
(PH-Ⅰ) Turnplate phase contrast condenser 052001
(PH-Ⅱ) Turnplate phase contrast condenser 052004
Flashboard phase contrast condenser 052002
Pull board phase contrast condenser 052003
CCD adapter 0.4X 810001
0.5X 810004
1X 810002
0.5X with dividing 0.1mm/Div 810003
Camera DV-1(With USB & video output) 800001
DV-2(With USB output) 800003
DV-3(With video output) 800005
Digital camera adapter CANON digital camera adapter(A610,A620,A630,A640) 820001
Photograph unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece 840001
4X Focusing photograph attachment 840002
MD Adapter 840003
PK Adapter 840004
