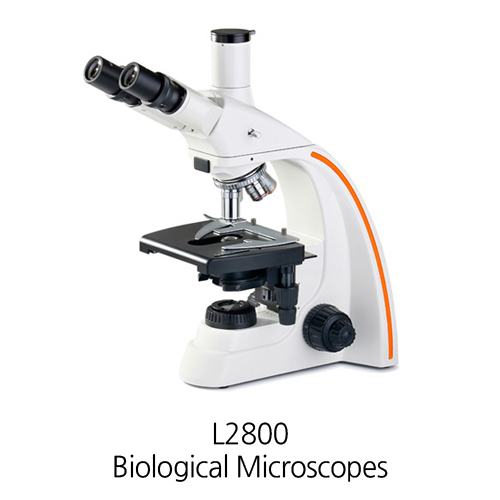

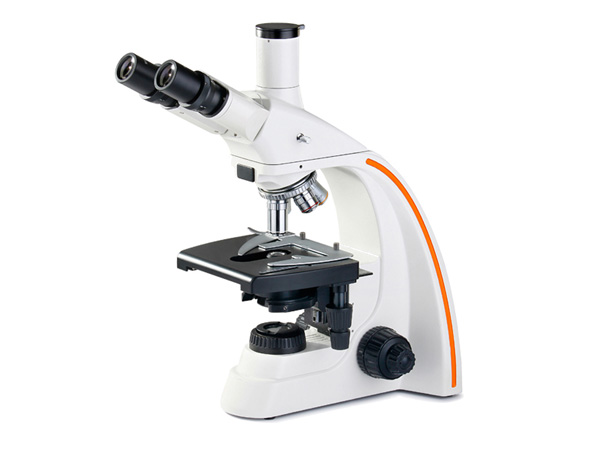

[L2800] Trinocular Biological Microscope (Similar Leica DM500 microscope)
₩1,244,000
설명
Lab/Industrial Microscope
Trinocular Biological Microscope
(Similar Leica DM500 microscope)
L2800
L2800 series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt and provide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.
Specification
| Eyepiece | Wide field WF10X(Φ22mm) |
| Objective | Infinity plan achromatic objective |
| PL 4X/0.10 (Work distance):19.8 mm | |
| PL 10X/0.25 (Work distance):5.0 mm | |
| PL 40X/0.65 (Spring) (Work distance):0.66 mm | |
| PL 100X/1.25 (Spring, oil) (Work distance): 0.36mm | |
| Eyepieces tube | Trinocular, Inclination of 30°. |
| Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2µm. |
| Nosepiece | Quardruple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:193mmX155mm,movingrange:75mmX50mm) |
| Transmitted illuminationsystem | Abbe condenser NA.1.25 Rack & pinion adjustable |
| Blue filter and Ground glass | |
| Collector for LED lamp illumination |
Optional accessories
| Eyepiece | Dividing eyepiece(field number:Φ22mm) 0.10mm/Div | 1122010 | |
| Objective | Infinity plan achromatic objective | ||
| PL 20X/0.40 (Work distance):8.8 mm | 2060120 | ||
| PL 60X/0.85 (Work distance):0.25mm | 2060160 | ||
| Phase contrast unit | Eyepiece | Centering telescope | 110002 |
| Objectives | Infinity phase contrast plan achromatic 10X/0.25 PHP | 2470110 | |
| Infinity phase contrast plan achromatic 20X/0.40 PHP | 2470120 | ||
| Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) | 2470140 | ||
| Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | 2470111 | ||
| Sliding phase contrast | |||
| Filter | Green filter | 115002 | |
| Yellow filter | 115003 | ||
| CCD adapter | 0.4X | 810001 | |
| 0.5X | 810004 | ||
| 1X | 810002 | ||
| 0.5X with dividing 0.1mm/Div | 810003 | ||
| Camera | DV-130/200/300/500/900 USB output | ||
| DV-1A/DV-1B Video output | |||
| Digital camera adapter | CANON(EF) NIKON( F) | 820001 | |
| Facility polarize | Polarizer | 360° rotatable stage | 111001 |
| Analyzer | Sliding type | 111105 | |
| Illumination system | 6V 30W light | ||
