[L1650B] Binocular Biological Microscope

782,000

Quantity:

설명

Lab/Industrial Microscope

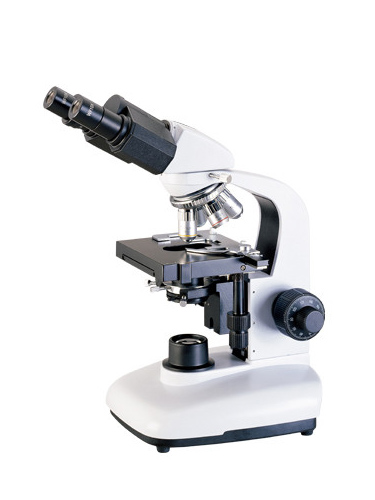

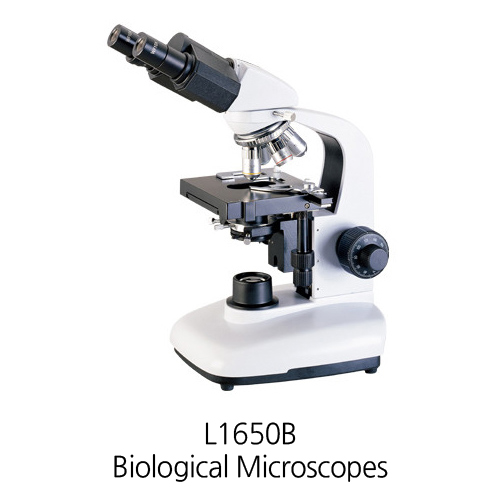

Binocular Biological Microscope

L1650B


L1650 series biological microscopes are equipped with achromatic objectives or semi-plan achromatic and wide field eyepieces. They provide clear image and wide field. They can be used for biology medicine and agriculture area widely. They are the ideal instruments in medical treatment and scientific research.

Advantage

1) With wide field eyepieces, achromatic objectives or semi-plan achromatic, the field of view is widely and clear
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
3) 6Volt 20Watt Halogen lamp with brightness control

Specification

Model L1650B
Eyepiece Wide field WF10X(Φ18mm)
Objective Semi-plan achromatic 4X/0.10
Semi-plan achromatic 10X/0.25
Semi-plan achromatic 40X/0.65(Spring)
Semi-plan achromatic 100X/1.25(Spring, oil)
Eyepiece tube Binocular(Inclination of 30°)
Focus system Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece Quadruple(Backward ball bearing inner locating)
Stage Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
Abbe condenser N.A.1.25 Rack & pinion adjustable
Filter Blue filter
Frosted filter
Collector For halogen lamp
Light source 6V 20W Halogen lamp with brightness control


Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Wide field  WF16X(Φ11mm) 1051016
Dividing   10X(Φ18mm)  0.1mm/Div 1021010
Objective Plan achromatic  4X/0.10 2040104
Plan achromatic  5X/0.12 2040105
Plan achromatic  10X/0.25 2040110
Plan achromatic  20X/0.40 2040120
Plan achromatic  40X/0.65(Spring) 2040140
Plan achromatic  60X/0.85(Spring) 2040160
Plan achromatic  100X/1.25(Spring, oil) 2040111
Eyepiece tube Monocular( Inclination of 30°) 010007
Binocular, Sliding(Inclination of 45°) 011201
Trinocular, Sliding(Inclination of 45°) 012201
Trinocular(Inclination of 30°) 012004
Dual viewing tube(Inclination of 30°) 013002
Nosepiece Quintuple(Backward ball bearing inner locating) 032001
Filter Green filter 115002
Yellow filter 115003
Light source LED Collector Bright and white light 073008
Condenser Dark field Dry 051001
Immersion 051002
Phase contrast unit Eyepiece Centering telescope 110001
Objectives Phase contrast plan achromatic 10X/0.25 PHP 2420110
Phase contrast plan achromatic 20X/0.40 PHP 2420120
Phase contrast plan achromatic 40X/0.65 PHP(Spring) 2420140
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) 2420111
(PH-Ⅰ) Turnplate phase contrast condenser 052001
(PH-Ⅱ) Turnplate phase contrast condenser 052004
Flashboard phase contrast condenser 052002
Pull board phase contrast condenser 052003
Infinity optical system Eyepiece tube Binocular (Inclination of 30°) 011102
Trinocular (Inclination of 30°) 012102
Eyepiece Centering telescope 110002
Objectives Infinity plan achromatic 4X/0.10 2060104
Infinity plan achromatic 10X/0.25 2060110
Infinity plan achromatic 20X/0.40 2060120
Infinity plan achromatic 40X/0.65(Spring) 2060140
Infinity plan achromatic 100X/1.25(Spring, oil) 2060111
Infinity phase contrast plan achromatic 10X/0.25 PHP 2470110
Infinity phase contrast plan achromatic 20X/0.40 PHP 2470120
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) 2470140
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil) 2470111
CCD adapter 0.4X 810001
0.5X 810004
1X 810002
0.5X with dividing 0.1mm/Div 810003
Camera DV-1(With USB & video output) 800001
DV-2(With USB output) 800003
DV-3(With video output) 800005
Photography USB Output 1096001
VIDEO Output 1108001
Digital camera adapter CANON Digital camera adapter(A610,A620,A630,A640) 820001
Photograph unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece 840001
4X Focusing photograph attachment 840002
MD Adapter 840003
PK Adapter 840004
Facility polarize Polarizer(360° rotatable stage) 111001
Analyzer 111101
Adapter Input: 230V~50/60HZ   Output: 9V  500mA 101001
Input: 110V~50/60HZ   Output: 9V  500mA 101002
