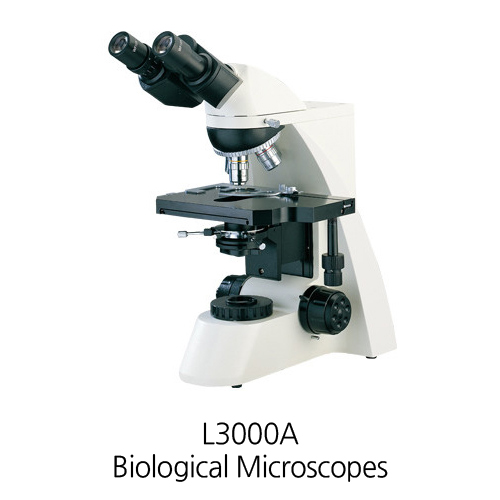

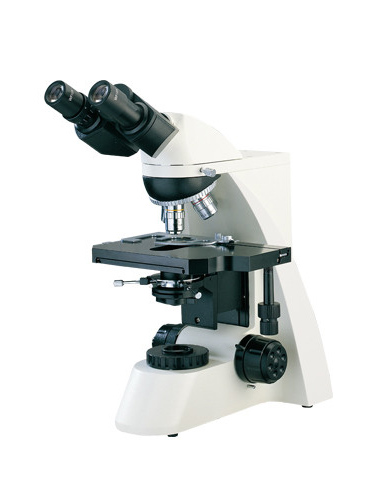

[L3000A] Biological Microscope
₩1,133,000
설명
Lab/Industrial Microscope
Biological Microscope
L3000A
L3000 series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Advantage
1) With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
2) Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
3) Using Kohler illumination with 6V 20W halogen lamp with brightness control
Specification
| Model | L3000A | L3000B |
| Eyepiece | WF10X(Φ20mm) | |
| Objective | Plan achromatic PL 4X/0.10 | Plan achromatic PL 4X/0.10 |
| Plan achromatic PL 10X/0.25 | Plan achromatic PL 10X/0.25 | |
| Plan achromatic PL 20X/0.40 | ||
| Plan achromatic PL 40X/0.65(Spring) | Plan achromatic PL 40X/0.65(Spring) | |
| Plan achromatic PL 100X/1.25(Spring, oil) | Plan achromatic PL 100X/1.25(Spring, oil) | |
| Eyepiece tube | Binocular(Inclination of 30°) | |
| Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2|ìm. | |
| Nosepiece | Quadruple(Backward ball bearing inner locating) | Quintuple(Backward ball bearing inner locating) |
| Stage | Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm) | |
| Abbe condenser | N.A.1.25 Rack & pinion adjustable | |
| Filter | Blue filter | |
| Frosted filter | ||
| Collector | For halogen lamp | |
| Light source | 6V 20W Halogen lamp with brightness control | |
Optional accessories
| Name | Sort/Technique parameter | NO. | |
| Eyepiece | WF16X(Φ11mm) | 1051016 | |
| Dividing10X(Φ20mm),0.1mm/Div | 1121010 | ||
| Eyepiece tube | Trinocular | Inclination of 30° | 012007 |
| Filter | Green filter | 115002 | |
| Yellow filter | 115003 | ||
| Condenser | Dark field | Dry | 051001 |
| Immersion | 051002 | ||
| Phase contrast unit | Eyepiece | Centering telescope | 110001 |
| Objectives | Phase contrast plan achromatic 10X/0.25 PHP | 2420110 | |
| Phase contrast plan achromatic 20X/0.40 PHP(Spring) | 2420120 | ||
| Phase contrast plan achromatic 40X/0.65 PHP(Spring) | 2420140 | ||
| Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | 2420111 | ||
