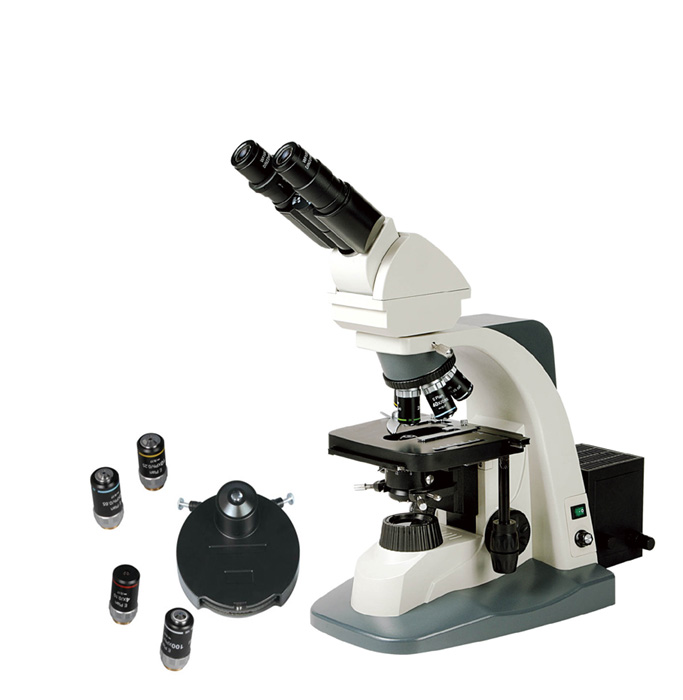

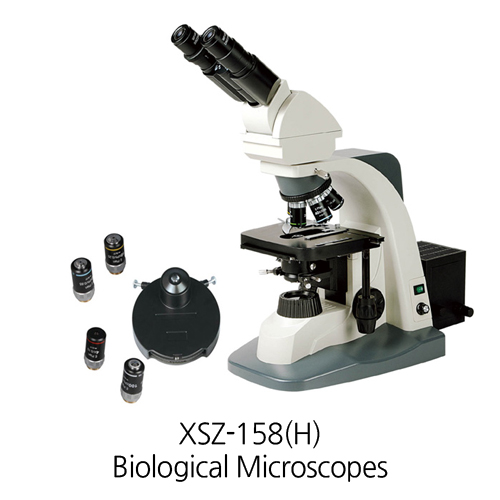

[XSZ-158(H)] Biological Microscope(High version)
₩3,700,000
설명
Lab/Industrial Microscope
Biological Microscope(High version)
XSZ-158(H)
The model no. XSZ-158 biological microscope(high version), it is diversification brings you enter into an epoch not only the performance but also the application. The module design can meet your needs on all normal experiment and scientific research .Its humanized configuration design, reasonable control device and layout of every operation knob can keep your eyes, neck, shoulders, waist, arms and wrist against tiredness. You can be released from heavy word due to the comfortable operation.
Standard configuration:
– Trinocular head
– Sextuple nosepiece
– E-Plan to Infinity Plan Objectives
– Dry Dark field condenser
– Phase contrast kit with x10, x20, x40 & x100 Infinity Plan Phase contrast objectives
– 50W Halogen lamp
Specification
|
Standard configuration
|
Optional parts
|
||
|
Viewing head
|
Compensation Free Binocular Head,Inclined adjustment 0 ° -40 °
|
–
|
|
|
Compensation Free Trinocular Head ,Inclined adjustment 0 ° -40 °
|
S
|
||
|
Interpupillary Distance
|
55mm -75mm
|
S
|
|
|
Eyepiece
|
WF10X/ 22mm
|
S
|
|
|
WF16X,WF20X,WF25X,P16X
|
–
|
||
|
Nosepiece
|
Quintuple nosepiece
|
–
|
|
|
Sextuple nosepiece
|
S
|
||
|
Objective
|
Infinity plan objectives: 4X,10X,40X(S),20X(S),60X(S), 100X(S) Oil
|
S
|
|
|
Stage
|
Double layers mechanical stage
|
S
|
|
|
Stage size:180mmX 160mm
|
|||
|
Moving range :75mmX 50mm
|
|||
|
Condenser
|
Swing type N. A.1.25 Abbe condenser with iris diaphragm & filter
|
S
|
|
|
Focusing
|
Coaxial coarse&fine focusing adjustment with rack and pinion
mechanism Fine focusing scale Value 0.002mm
|
S
|
|
|
Collector
|
Kohler illumination
|
S
|
|
|
Light source
|
Halogen bulb12V/30W 12V/50W or 12V/100W.AC85-230V
|
S
|
|
|
Adjustable brightness
|
|||
|
Accessories
|
Fluorescent attachment
|
–
|
|
|
Phase contrast attachment (x10, x20, x40 & x100 Infinity Plan Phase contrast objectives)
|
S
|
||
|
Dry & Immersion dark field condenser
|
S
|
||
|
Simple polarization attachment
|
–
|
||
|
3.0or1.3Mega pixel, CMOS electronic eyepiece
|
–
|
||
